Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter Multitech E6 Entry Level 2017-2019 PIAGGIO VU

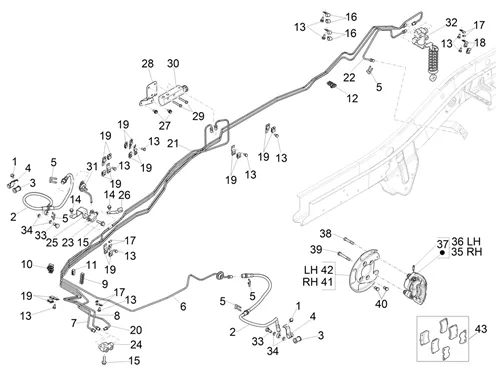

Instalation du freins - transmisisons : 05.03 TUYAUS DU FREINS - ETRIERS DE FREIN II
Tuyaus du freins - Etriers de frein II
Search
D9165160610 - BOULON

1
P2R reference P2R reference 110028
Maker reference Maker reference D9165160610

D9165160610 BOLT

More information

Quantity required : 2

HOSE/FLEXIBLE/HOSE OF BRAKE FRONT OEM PIAGGIO PORTER 1998 > 2020-B007247

2
P2R reference P2R reference 116403
Maker reference Maker reference B007247

HOSE/FLEXIBLE/HOSE OF BRAKE FRONT OEM PIAGGIO PORTER 1998 > 2020-B007247

More information

Quantity required : 2

D9004540022 - TAMPON

3
P2R reference P2R reference 110415
Maker reference Maker reference D9004540022

D9004540022 BUFFER

More information

Quantity required : 2

D9004461432 - CLIPS

4
P2R reference P2R reference 111365
Maker reference Maker reference D9004461432

D9004461432 CLIPS

More information

Quantity required : 2

B005354 - COLLIER

5
P2R reference P2R reference 110968
Maker reference Maker reference B005354

B005354 CLAMP

More information

Quantity required : 5

B005360 - RESSORT

9
P2R reference P2R reference 111675
Maker reference Maker reference B005360

B005360 SPRING

More information

Quantity required : 1

B007289 - COLLIER

11
P2R reference P2R reference 110880
Maker reference Maker reference B007289

B007289 CLAMP

More information

Quantity required : 1

D9004464157 - COLLIER

12
P2R reference P2R reference 112598
Maker reference Maker reference D9004464157

D9004464157 CLAMP

More information

Quantity required : 1

13
P2R reference P2R reference
Maker reference Maker reference D91611606125

BOLT TH (6X14) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-CM287314

14
P2R reference P2R reference 151198
Maker reference Maker reference CM287314

BOLT TH (6X14) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-CM287314

More information

Quantity required : 2

D9165160830 - BOULON

15
P2R reference P2R reference 110514
Maker reference Maker reference D9165160830

D9165160830 BOLT

More information

Quantity required : 2

16
P2R reference P2R reference
Maker reference Maker reference D900446119335

D9622130705 - COLLIER

17
P2R reference P2R reference 111329
Maker reference Maker reference D9622130705

D9622130705 CLAMP

More information

Quantity required : 4

D9004461364 - CLIPS

18
P2R reference P2R reference 111931
Maker reference Maker reference D9004461364

D9004461364 CLIPS

More information

Quantity required : 1

D9004461468 - CLIPS

19
P2R reference P2R reference 111904
Maker reference Maker reference D9004461468

D9004461468 - CLIPS

More information

Quantity required : 8

645626 - RACCORD

23
P2R reference P2R reference 115263
Maker reference Maker reference 645626

645626 FITTING

More information

Quantity required : 1

645627 - RACCORD

24
P2R reference P2R reference 116304
Maker reference Maker reference 645627

645627 FITTING

More information

Quantity required : 1

26
P2R reference P2R reference
Maker reference Maker reference D90044623245

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE PORTER 2020 <-CM287316

27
P2R reference P2R reference 158459
Maker reference Maker reference CM287316

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE PORTER 2020 <-CM287316

More information

Quantity required : 2

SCREW FLANGE TH (6X40) OEM PIAGGIO COMMON A LA RANGE-1A011120

29
P2R reference P2R reference 151716
Maker reference Maker reference B016763

SCREW FLANGE TH (6X40) OEM PIAGGIO COMMON A LA RANGE-1A011120

More information

Quantity required : 2

SCREW FLANGE TH (6X40) OEM PIAGGIO COMMON A LA RANGE-1A011120

29
P2R reference P2R reference 151716
Maker reference Maker reference 1A011120

SCREW FLANGE TH (6X40) OEM PIAGGIO COMMON A LA RANGE-1A011120

More information

Quantity required : 2

REPARTITEUR OF BRAKE WITH SPRING OEM PIAGGIO PORTER, CARGO 2020 <-4790087Z01000

32
P2R reference P2R reference 122385
Maker reference Maker reference 4790087Z01000

REPARTITEUR OF BRAKE WITH SPRING OEM PIAGGIO PORTER, CARGO 2020 <-4790087Z01000

More information

Quantity required : 1

264454 - RACCORD

33
P2R reference P2R reference 111238
Maker reference Maker reference 264454

264454 - RACCORD

More information

Quantity required : 2

9004430236000 - JOINT

34
P2R reference P2R reference 158427
Maker reference Maker reference 9004430236000

9004430236000 GASKET

More information

Quantity required : 4

CALIPER BRAKE FRONT RIGHT OEM PIAGGIO PORTER 2020 <-658278

35
P2R reference P2R reference 122368
Maker reference Maker reference 658278

CALIPER BRAKE FRONT RIGHT OEM PIAGGIO PORTER 2020 <-658278

More information

Quantity required : 1

BRAKE CALIPER FRONT LEFT OEM PIAGGIO PORTER 2020 <-658279

36
P2R reference P2R reference 121716
Maker reference Maker reference 658279

BRAKE CALIPER FRONT LEFT OEM PIAGGIO PORTER 2020 <-658279

More information

Quantity required : 1

837145 - RACCORD

37
P2R reference P2R reference 113370
Maker reference Maker reference 837145

837145 FITTING

More information

Quantity required : 1

SCREW TH (9X55) MOUNTING BRAKE CALIPER OEM PIAGGIO PORTER 2020 < 9004101534000

38
P2R reference P2R reference 111944
Maker reference Maker reference 9004101534000

SCREW TH (9X55) MOUNTING BRAKE CALIPER OEM PIAGGIO PORTER 2020 < 9004101534000

More information

Quantity required : 2

SCREW TH (9X55) MOUNTING BRAKE CALIPER OEM PIAGGIO PORTER 2020 < 9004101534000

39
P2R reference P2R reference 111944
Maker reference Maker reference 9004101534000

SCREW TH (9X55) MOUNTING BRAKE CALIPER OEM PIAGGIO PORTER 2020 < 9004101534000

More information

Quantity required : 2

1E002521 - Vis

40
P2R reference P2R reference 151197
Maker reference Maker reference 1E002521

1E002521 SCREW

More information

Quantity required : 4

4770387Z01000 - FLASQUE AVG

41
P2R reference P2R reference 121467
Maker reference Maker reference 4770387Z01000

4770387Z01000 FLASQUE AVG

More information

Quantity required : 1

4770487Z01000 - DISQUE

42
P2R reference P2R reference 121490
Maker reference Maker reference 4770487Z01000

4770487Z01000 DISC

More information

Quantity required : 1

SET PLAQUETTES FRONT (4 PLAQUETTES) OEM PIAGGIO PORTER FUEL-DIESEL 2020 <-0449187503000

43
P2R reference P2R reference 121094
Maker reference Maker reference 04491875030005

SET PLAQUETTES FRONT (4 PLAQUETTES) OEM PIAGGIO PORTER FUEL-DIESEL 2020 <-0449187503000

More information

Quantity required : 1
