Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter 1000-1300 Pick-Van 1992-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

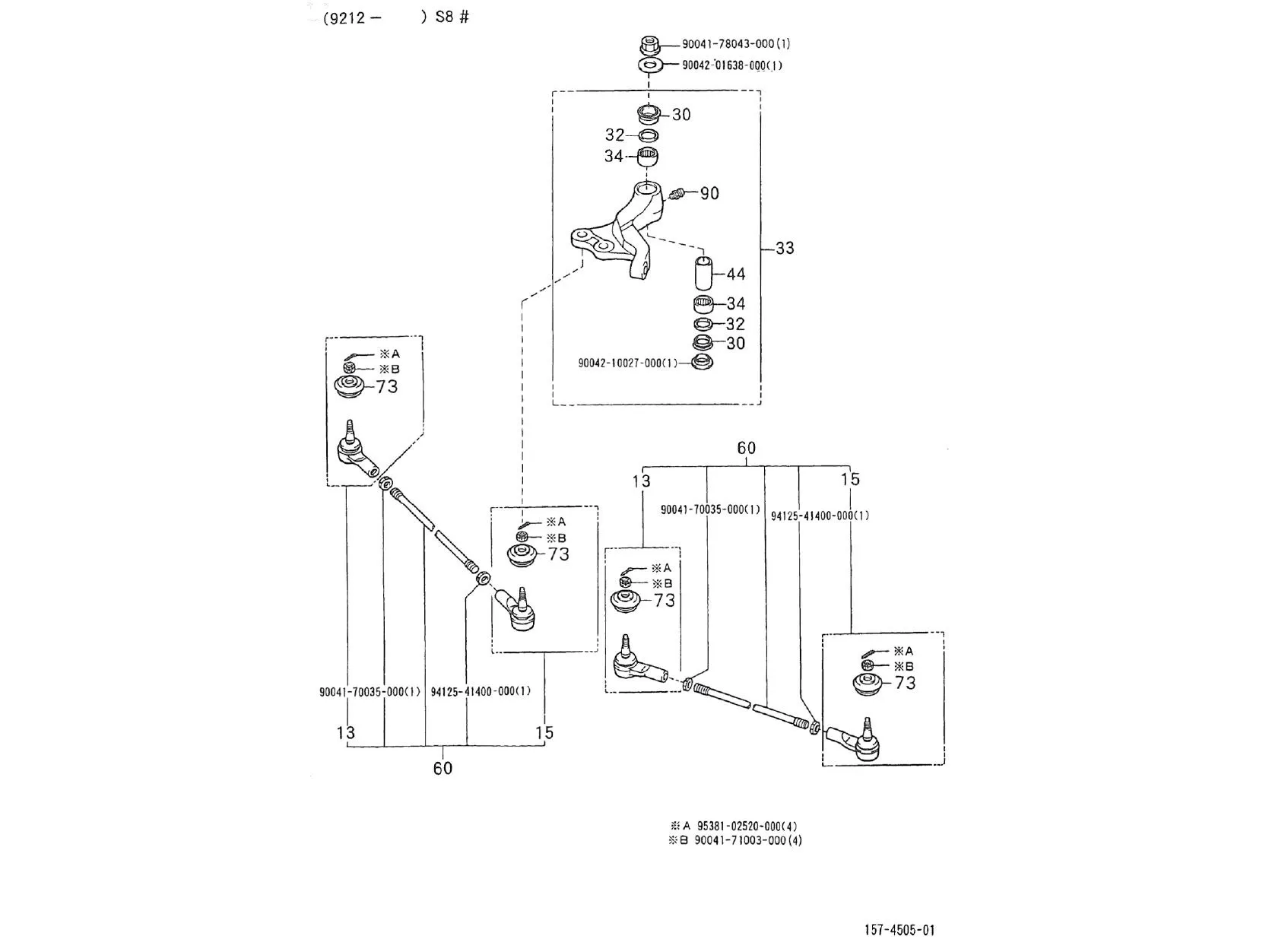

Transmission : 03.170 ARTICULATION DE DIRECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/343/Porter_1000-1300_Pick-Van_1992-2009_03.170.PNG)
13 |
4504787581000 ARTICULATION More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/6/4/7/img/118647.jpg)
13 |
BIELLETTE DE STEERING WITH ROTULE OEM PIAGGIO PORTER 2020 <-652234 More informationQuantity required : 2 |
||||||
|
15 |
4504687581000 ARTICULATION More informationQuantity required : 2 |
||||||
|
15 |
BIELLETTE DE STEERING WITH ROTULE OEM PIAGGIO PORTER 2020 <-652234 More informationQuantity required : 2 |
||||||
|
30 |
4545787501000 - PARE-POUSSIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/9/4/9/img/113949.jpg)
30 |
PROTECTOR-POUSSIERE/SOUFFLET TIRANT STEERING OEM PIAGGIO PORTER 1998 > 2005-262479 More informationQuantity required : 2 |
||||||
|
32 |
4545887501000 - PARE-POUSSIER More informationQuantity required : 2 |
||||||
|
33 |
BRAS DIRECT. |
||||||
|
33 |
BRAS DIRECT. |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/4/7/9/img/122479.jpg)
33 |
STEERING ARM "PIAGGIO GENUINE PART" PORTER -2624805 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/2/1/6/img/122216.jpg)
33 |
ARM DE CONTROL STEERING OEM PIAGGIO PORTER CONDUITE A RIGHT PAYS ANGLO-SAXON 1992 > 2009-652021 More informationQuantity required : 1 |
||||||
|
34 |
DOUILLE A AIG |
||||||
|
34 |
D9004364128 BEARING More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/0/0/4/img/121004.jpg)
44 |
BUSH HOUSING DE STEERING OEM PIAGGIO PORTER 1992 > 2020 9004389104000 More informationQuantity required : 1 |
||||||
|
60 |
4546087586000 - TIGE DIRECTIO More informationQuantity required : 2 |
||||||
|
60 |
BIELLETTE DE STEERING WITH ROTULE OEM PIAGGIO PORTER 2020 <-652234 More informationQuantity required : 2 |
||||||
|
73 |
PARE-POUSSIER |
||||||
|
73 |
PARE-POUSSIER |
||||||
|
90 |
Graisseur |
||||||
|
90 |
GRAISSEUR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/2/6/8/img/112268.jpg)
91 |
NUT OEM PIAGGIO PORTER-9004178043000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/3/8/9/img/111389.jpg)
92 |
WASHER DE ARM DE STEERING OEM PIAGGIO PORTER 2020 <-9004201638000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/4/0/9/img/113409.jpg)
93 |
9004210027000 - RONDELLE More informationQuantity required : 1 |
||||||
|
94 |
9004170035000 - ECROU More informationQuantity required : 1 |
||||||
|
95 |
9412541400000 NUT More informationQuantity required : 1 |
||||||
|
96 |
GOUPILLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/2/0/8/img/151208.jpg)
97 |
NUT BIELLETTE STEERING OEM PIAGGIO PORTER 2020 <-D9004171003 More informationQuantity required : 4 |
