Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter 1000-1300 Pick-Van 1992-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

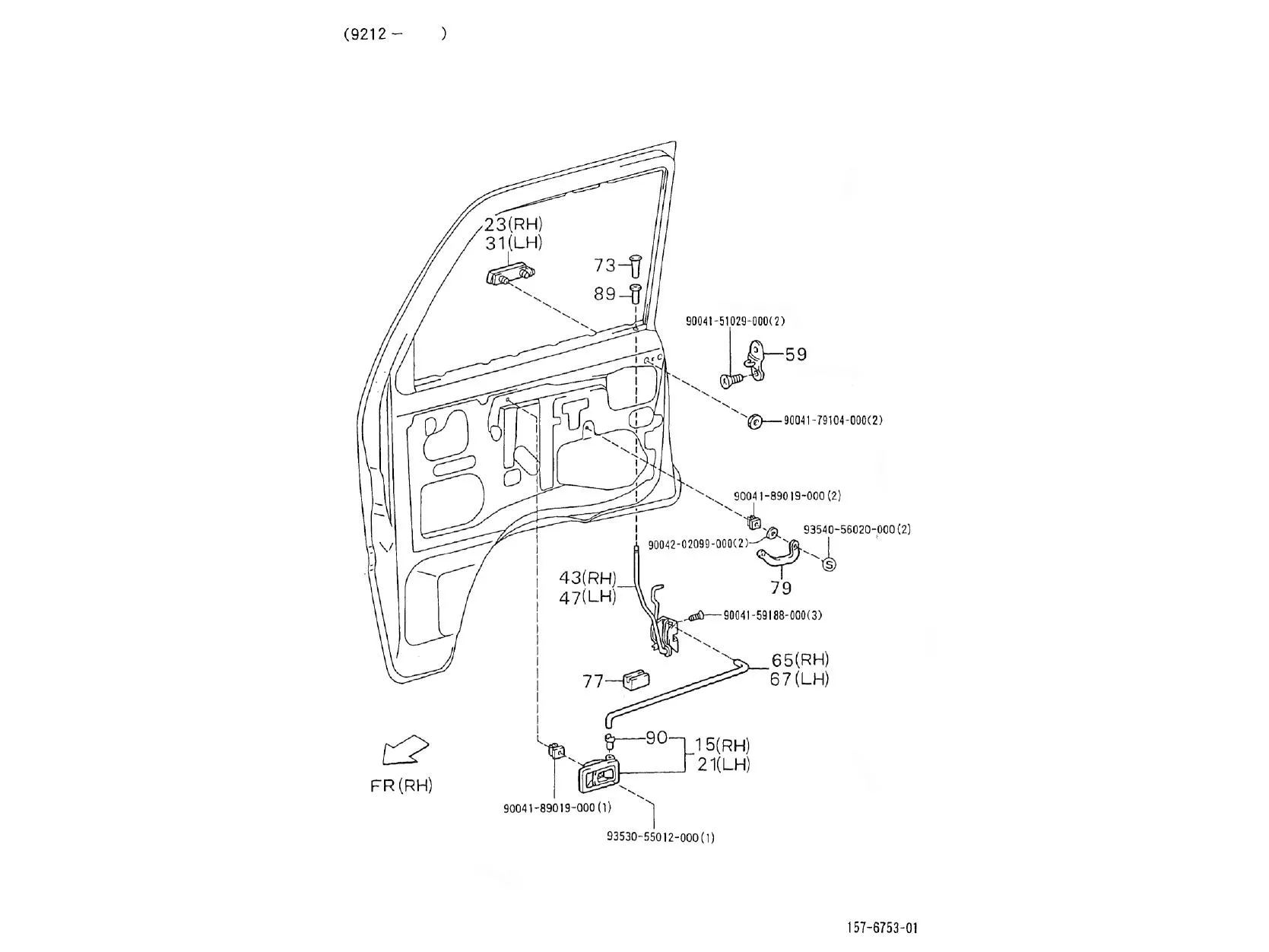

Chassis : 04.250 SERRURE - POIGNEE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/343/Porter_1000-1300_Pick-Van_1992-2009_04.250.PNG)
15 |
|
||||||
|
21 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/8/2/4/img/117824_20251023145337.jpg)
23 |
GRIP DE DOOR EXTERIEURE RIGHT OEM PIAGGIO PORTER 2020 <-6921087Z010006 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/9/1/7/img/117917.jpg)
31 |
GRIP DE DOOR EXTERIEURE LEFT OEM PIAGGIO PORTER 2020 <-6922087Z010006 More informationQuantity required : 1 |
||||||
|
43 |
662007 - SERRURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/9/9/1/img/116991.jpg)
47 |
LOCK/MECANISME OF FASTENING DE DOOR FRONT LEFT OEM PIAGGIO PORTER-B0042843 More informationQuantity required : 1 |
||||||
|
59 |
6941087701000 - PLAQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/1/6/0/img/112160.jpg)
65 |
TIRANT DE DOOR FRONT RIGHT OEM PIAGGIO PORTER 2020 <-6971187Z01000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/1/6/3/img/112163.jpg)
67 |
6971287Z01000 TIRANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/2/8/img/110428.jpg)
73 |
BUTTON BLOCAGE DE DOOR OEM PIAGGIO PORTER 2020 <-D6974787Z01 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/1/4/3/img/111143.jpg)
77 |
BUFFER DE DOOR OEM PIAGGIO PORTER 2020 <-6975987Z01000 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/6/1/3/img/134613.jpg)
79 |
GRIP DE DOOR FRONT INTERIEURE OEM PIAGGIO PORTER 2020 <-1E001561 More informationQuantity required : 2 |
||||||
|
89 |
D9004480352 GUIDE-CABLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/7/1/3/img/112713.jpg)
90 |
PIVOT DE COMPOSANT DE DOOR FRONT OEM PIAGGIO PORTER 2020 <-6927987Z01000 More informationQuantity required : 2 |
||||||
|
91 |
9004151029000 - VIS More informationQuantity required : 2 |
||||||
|
92 |
261323 NUT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/6/9/img/110269.jpg)
93 |
GUIDE CABLE OEM PIAGGIO PORTER 2020 <-D9004189019 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/0/1/img/110401.jpg)
94 |
SCREW AUTOTARAUDEUSE (6. 1X23. 7) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-9354056020000 More informationQuantity required : 2 |
||||||
|
95 |
VIS |
||||||
|
96 |
GUIDE CABLE OEM PIAGGIO PORTER 2020 <-D9004189019 More informationQuantity required : 1 |
||||||
|
97 |
VIS |
