Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter 1000-1300 Pick-Van 1992-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

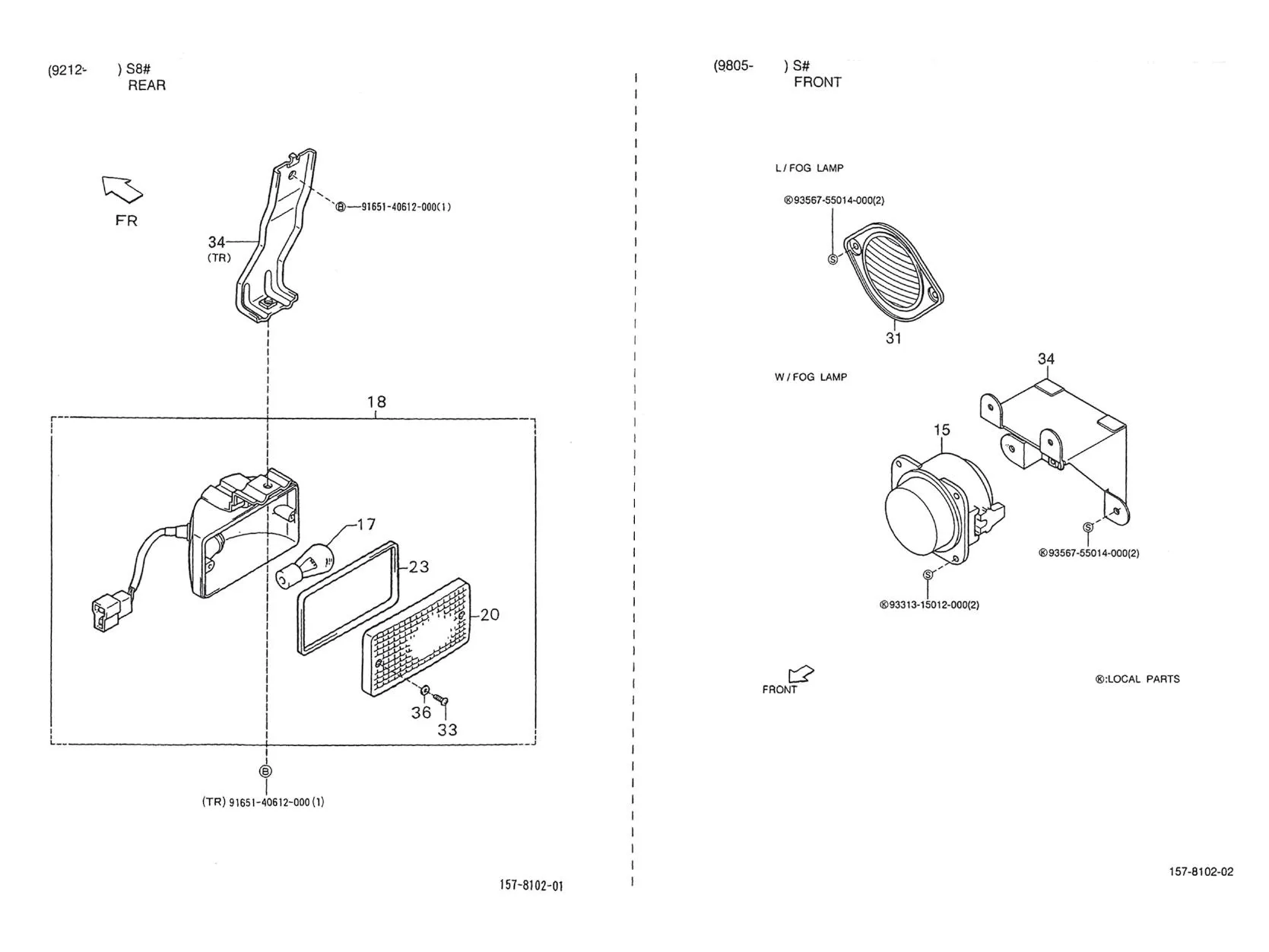

Circuit electrique : 05.020 ANTI-BROUILLARD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/343/Porter_1000-1300_Pick-Van_1992-2009_05.020.PNG)
15 |
|
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/8/img/65758.jpg)
17 |
AMPOULE/LAMPE 12V 21W BA15S/R10 OEM PIAGGIO COMMON A LA RANGE-160654 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/9/1/3/img/118913.jpg)
18 |
LAMP REAR ANTI-BROUILLARD OEM PIAGGIO PORTER 2020 <-8157087Z01000 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/4/0/1/img/116401.jpg)
20 |
CABOCHON DE LAMP OEM PIAGGIO PORTER 2020 <-8121187Z01000 More informationQuantity required : 1 |
|||||||||
|
23 |
JOINT |
|||||||||
|
31 |
|
|||||||||
|
33 |
VIS |
|||||||||
|
34 |
8148187Z02000 BRACKET More informationQuantity required : 2 |
|||||||||
|
34 |
|
|||||||||
|
36 |
RONDELLE |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/2/3/img/110223.jpg)
37 |
D9165140612 - BOULON More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/8/3/4/img/111834.jpg)
38 |
SCREW TORX DE PANEL DE EDGE OEM PIAGGIO PORTER 2020 <-B004853 More informationQuantity required : 4 |
|||||||||
|
39 |
|
|||||||||
