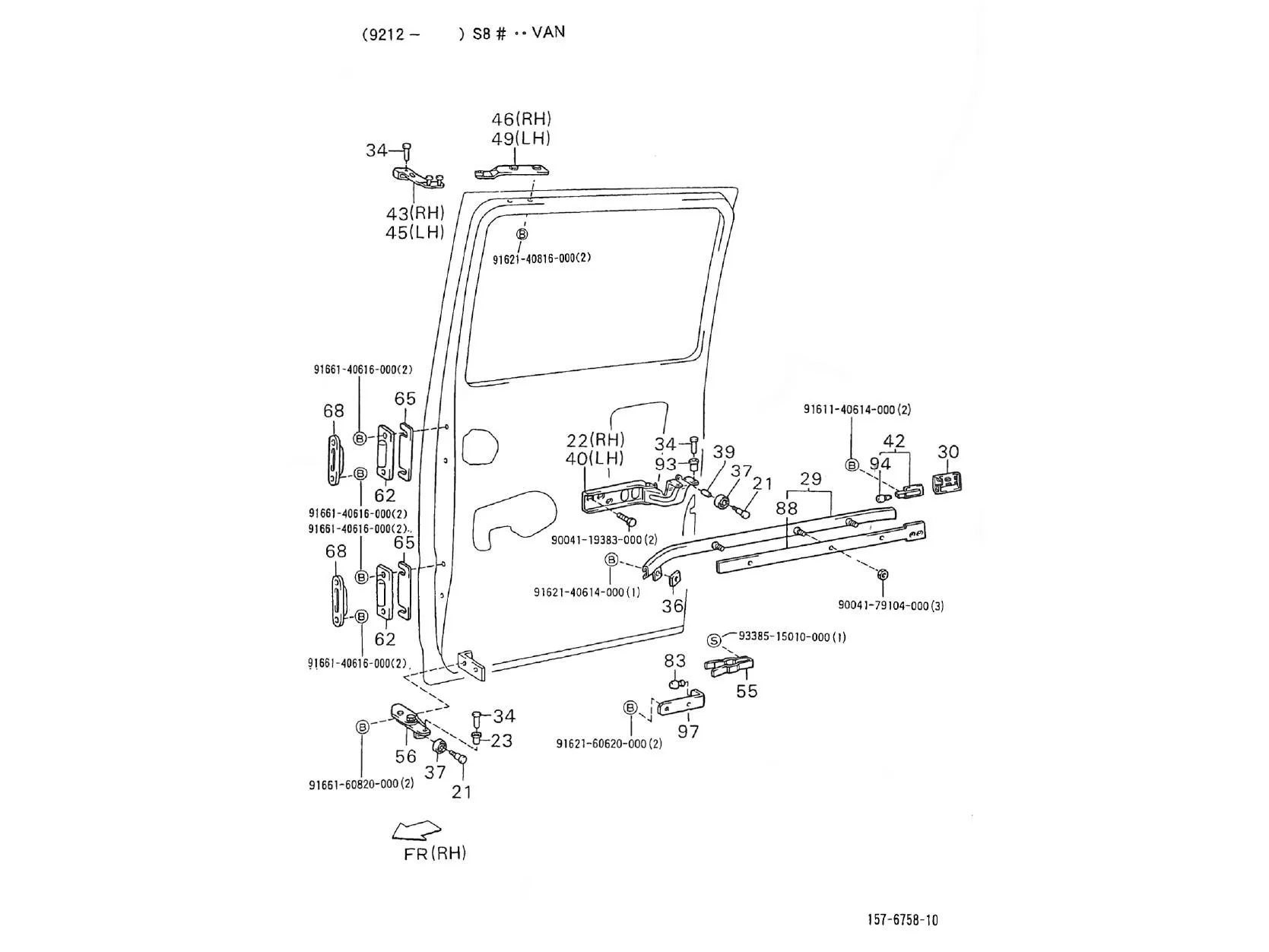

Chassis : 04.300 GUIDE PORTIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/343/Porter_1000-1300_Pick-Van_1992-2009_04.300.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/1/0/img/110610.jpg)
21 |
SPINDLE/PIVOT DE DOOR REAR OEM PIAGGIO PORTER VAN 2020 <-9004241106000 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/5/2/8/img/118528.jpg)
22 |
CHARNIERE DE DOOR SIDE RIGHT OEM PIAGGIO-6838087Z01000 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/9/5/img/110395.jpg)
23 |
D6833287Z01 - PIVOT More informationQuantity required : 2 |
|||||||||
29 |
6180787Z01000 - LISTEL More informationQuantity required : 1 |
|||||||||
|
29 |
6180887Z01000 LISTEL More informationQuantity required : 1 |
|||||||||
|
30 |
7565187Z01000 COVER More informationQuantity required : 1 |
|||||||||
|
30 |
7565287Z01000 COVER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/0/4/1/img/111041.jpg)
34 |
SPINDLE/PIVOT DE DOOR REAR OEM PIAGGIO PORTER VAN 2020 <-D9004241105 More informationQuantity required : 4 |
|||||||||
|
36 |
6837787Z01000 PLATE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/1/5/6/img/114156.jpg)
37 |
BEARING PORTIERE SIDE (BAS) OEM PIAGGIO PORTER VAN-B005029 More informationQuantity required : 2 |
|||||||||
|
37 |
ROULEMENT |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/5/6/img/109856.jpg)
39 |
SPACER DOOR REAR OEM PIAGGIO PORTER VAN-9004560155000 More informationQuantity required : 2 |
|||||||||
|
40 |
6839087Z01000 - CHARNIERE More informationQuantity required : 1 |
|||||||||
|
42 |
6183987Z01000 BRACKET More informationQuantity required : 2 |
|||||||||
|
43 |
ARM RIGHT DOOR REAR OEM PIAGGIO PORTER VAN 2020 <-D6803187Z01 More informationQuantity required : 1 |
|||||||||
|
45 |
D6803287Z01 ARM More informationQuantity required : 1 |
|||||||||
|
46 |
6831787Z01000 - PLAQUE More informationQuantity required : 1 |
|||||||||
|
49 |
6851787Z01000 PLATE More informationQuantity required : 1 |
|||||||||
|
55 |
6832687Z01000 SPRING More informationQuantity required : 2 |
|||||||||
|
56 |
6803787Z01000 - BRAS More informationQuantity required : 1 |
|||||||||
|
56 |
6803887Z01000 ARM ACCELERA More informationQuantity required : 1 |
|||||||||
|
62 |
6941387Z01000 ARRET More informationQuantity required : 4 |
|||||||||
|
65 |
6941887Z01000 - EPAISSEUR More informationQuantity required : 33 |
|||||||||
|
68 |
6941487Z01000 ARRET More informationQuantity required : 4 |
|||||||||
|
68 |
|
|||||||||
|
83 |
6941987Z01000 BUFFER More informationQuantity required : 2 |
|||||||||
|
88 |
6182787Z01000 PANEL More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/8/0/img/110380.jpg)
93 |
6833487Z01000 - PIVOT More informationQuantity required : 4 |
|||||||||
|
94 |
TAMPON |
|||||||||
|
97 |
6941687Z01000 PLATE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/4/7/img/151147.JPG)
98 |
SCREW A SIX PANS WITH DOUBLE WASHER M6X16-CM288916 More informationQuantity required : 2 |
|||||||||
|
99 |
SCREW A SIX PANS WITH DOUBLE WASHER M6X16-CM288916 More informationQuantity required : 2 |
|||||||||
|
100 |
BOULON |
|||||||||
|
101 |
BOULON |
|||||||||
|
102 |
D9161140614 BOLT More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/2/1/img/110221.jpg)
103 |
SCREW FLANGE DE PORTIERE REAR OEM PIAGGIO PORTER VAN 2020 <-9004119383000 More informationQuantity required : 2 |
|||||||||
|
104 |
VIS |
|||||||||
|
105 |
261323 NUT More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/9/0/0/img/109900.jpg)
106 |
SCREW TH (8X16) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-D9162140816 More informationQuantity required : 2 |
|||||||||
