Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter 1000-1300 Pick-Van 1992-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

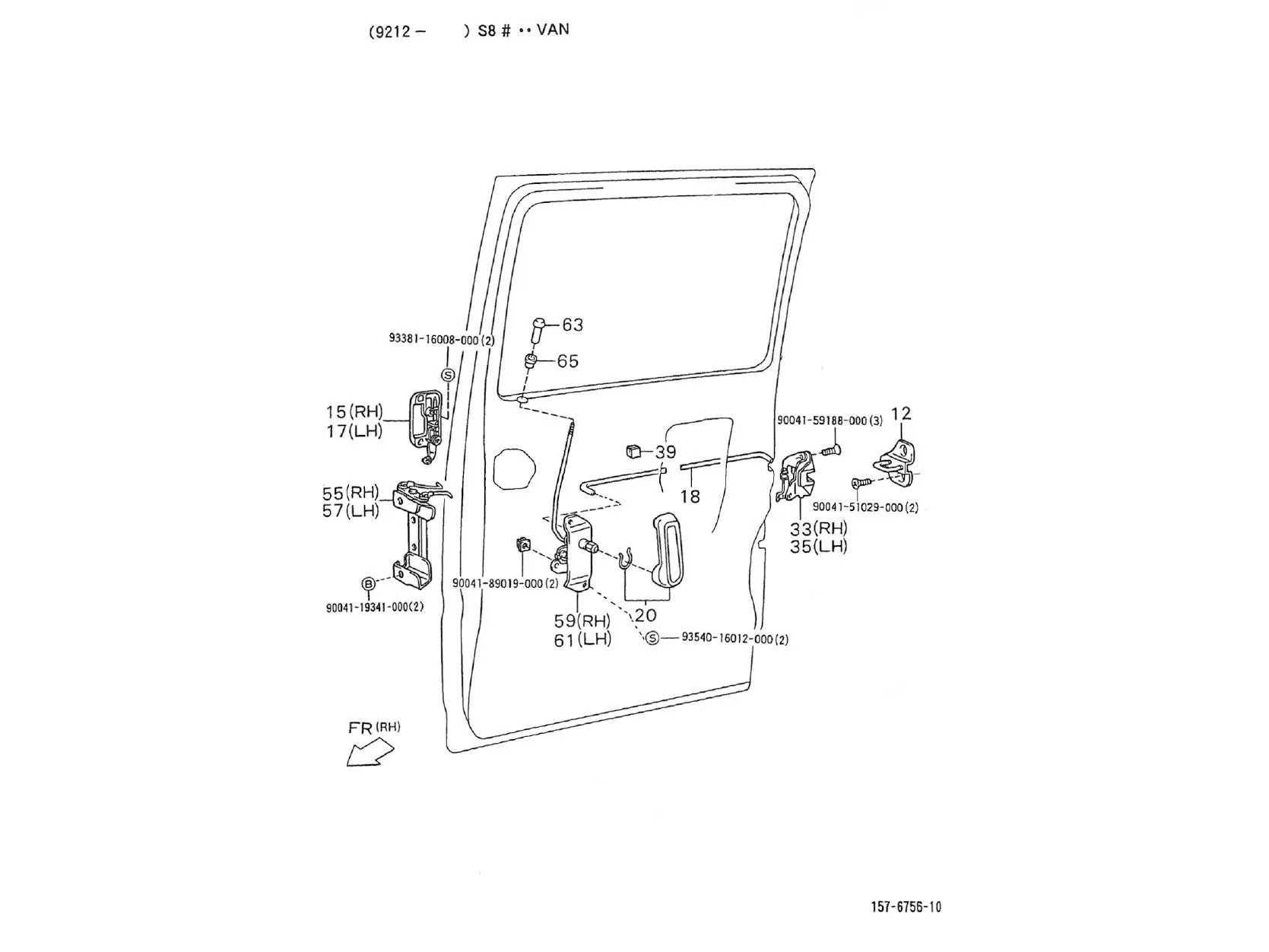

Chassis : 04.280 POIGNÉE - SERRURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/343/Porter_1000-1300_Pick-Van_1992-2009_04.280.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/8/7/3/img/118873.jpg)
12 |
ENCLIQUETAGE DE DOOR SIDE OEM PIAGGIO PORTER VAN 2020 <-B005018 More informationQuantity required : 2 |
||||||
15 |
GRIP EXTERIEURE DE DOOR SIDE RIGHT OEM PIAGGIO PORTER VAN-B005335 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/2/3/8/img/119238.jpg)
17 |
GRIP EXTERIEURE DE DOOR SIDE LEFT OEM PIAGGIO PORTER VAN-B005336 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/0/4/9/img/112049.jpg)
18 |
TIRANT DE DOOR SIDE/REAR OEM PIAGGIO PORTER VAN 2020 <-6971387Z01000 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/3/1/5/img/113315.jpg)
20 |
GRIP DE DOOR REAR OEM PIAGGIO PORTER VAN 2020 <-6927287Z01030 More informationQuantity required : 1 |
||||||
|
33 |
B005014 - SERRURE PORTE DR. More informationQuantity required : 1 |
||||||
|
35 |
B005015 LOCK DOOR GAU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/1/4/3/img/111143.jpg)
39 |
BUFFER DE DOOR OEM PIAGGIO PORTER 2020 <-6975987Z01000 More informationQuantity required : 2 |
||||||
|
55 |
6973087Z01000 - SERRURE More informationQuantity required : 1 |
||||||
|
57 |
6974087Z01000 LOCK More informationQuantity required : 1 |
||||||
|
59 |
B005020 CONTROL FERM More informationQuantity required : 1 |
||||||
|
61 |
B005021 CONTROL FERM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/2/8/img/110428.jpg)
63 |
BUTTON BLOCAGE DE DOOR OEM PIAGGIO PORTER 2020 <-D6974787Z01 More informationQuantity required : 2 |
||||||
|
65 |
D9004480352 GUIDE-CABLE More informationQuantity required : 2 |
||||||
|
66 |
VIS |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/2/6/3/img/151263.jpg)
67 |
SCREW TH (6X15) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-CM288112 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/6/9/img/110269.jpg)
68 |
GUIDE CABLE OEM PIAGGIO PORTER 2020 <-D9004189019 More informationQuantity required : 2 |
||||||
|
69 |
VIS |
||||||
|
70 |
9004151029000 - VIS More informationQuantity required : 2 |
||||||
|
71 |
VIS |
