Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter 1000-1300 Pick-Van 1992-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

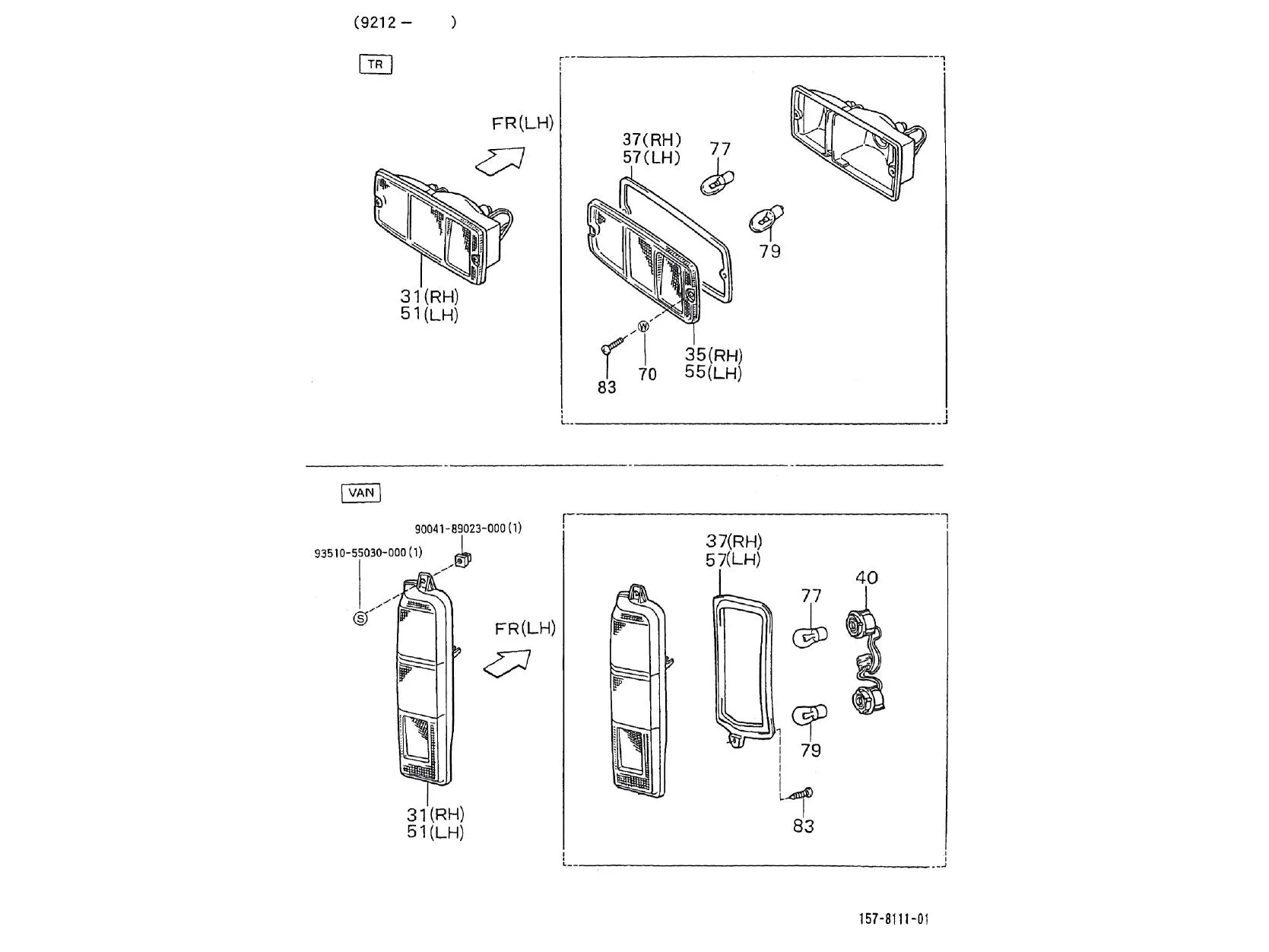

Circuit electrique : 05.050 FEU ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/343/Porter_1000-1300_Pick-Van_1992-2009_05.050.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/3/3/7/img/108337.jpg)
31 |
LAMP REAR RIGHT OEM PIAGGIO PORTER PICK-UP-8155087Z01000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/4/8/6/img/120486.jpg)
31 |
LAMP REAR RIGHT OEM PIAGGIO PORTER VAN-8155087Z02000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/4/3/4/img/114434.jpg)
35 |
CABOCHON LAMP REAR RIGHT OEM PIAGGIO PORTER PLATEAU A RIDELLES-8155187Z01000 More informationQuantity required : 1 |
||||||
37 |
JOINT |
||||||
|
37 |
8155487Z03000 - JOINT More informationQuantity required : 1 |
||||||
|
40 |
8175587Z02000 - PORTE-AMPOULE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/7/1/0/img/118710.jpg)
51 |
LAMP REAR LEFT OEM PIAGGIO PORTER PICK-UP-8156087Z01000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/3/9/7/img/119397.jpg)
51 |
LAMP REAR LEFT OEM PIAGGIO PORTER VAN-8156087Z02000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/4/3/1/img/114431.jpg)
55 |
CABOCHON LAMP REAR LEFT OEM PIAGGIO PORTER PICK-UP 2020 <-8156187Z01000 More informationQuantity required : 1 |
||||||
|
57 |
8156487Z01000 - JOINT More informationQuantity required : 1 |
||||||
|
57 |
JOINT |
||||||
|
70 |
RONDELLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/8/img/65758.jpg)
77 |
AMPOULE/LAMPE 12V 21W BA15S/R10 OEM PIAGGIO COMMON A LA RANGE-160654 More informationQuantity required : 2 |
||||||
|
79 |
9913221210000 - AMPOULE More informationQuantity required : 2 |
||||||
|
83 |
VIS |
||||||
|
83 |
VIS |
||||||
|
84 |
9004189023000 - TAMPON More informationQuantity required : 1 |
||||||
|
85 |
VIS |
