Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter 1000-1300 Pick-Van 1992-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

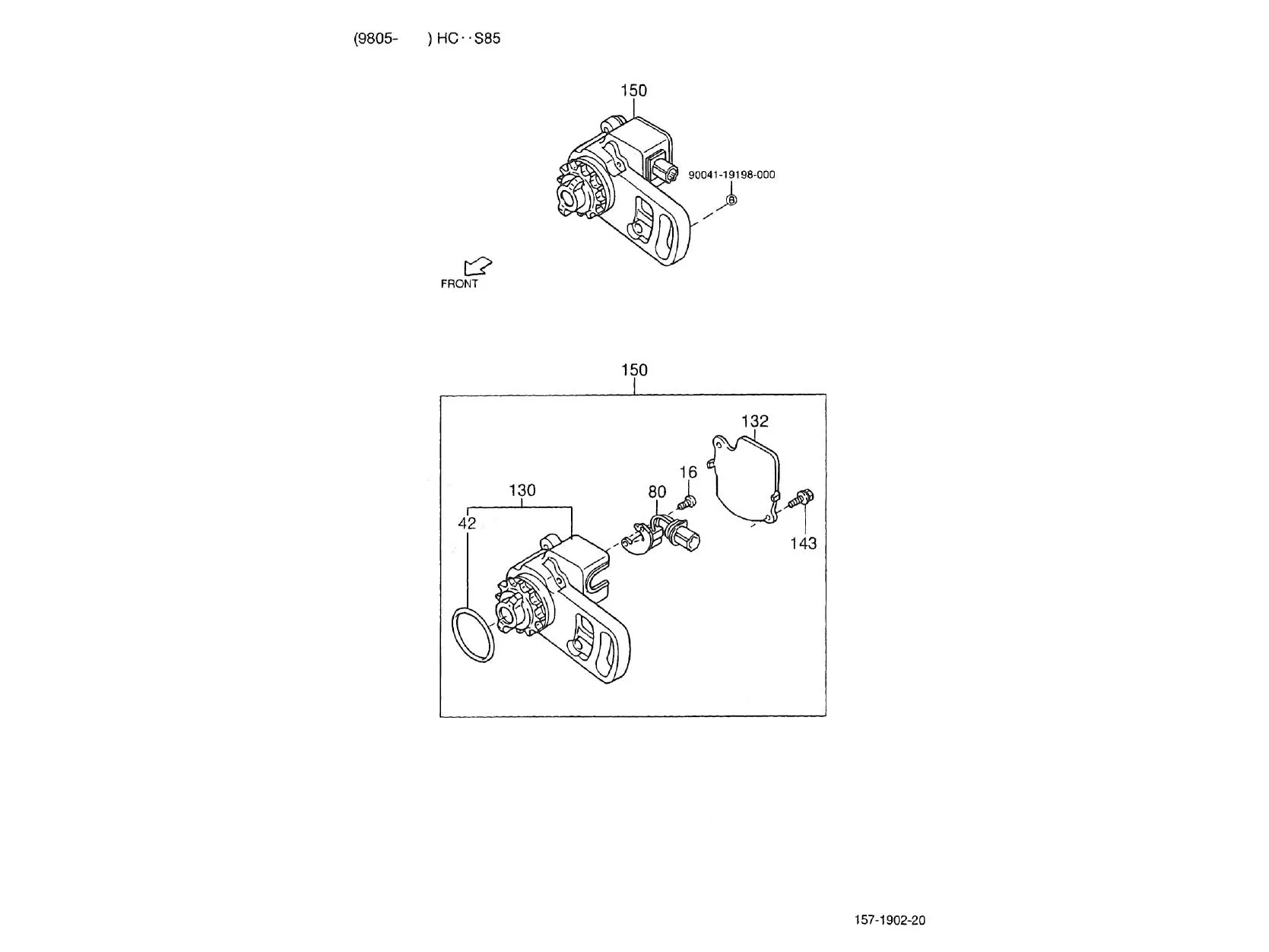

Moteur : 01.241 ALLUMEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/343/Porter_1000-1300_Pick-Van_1992-2009_01.241.PNG)
16 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/4/1/5/img/114415.jpg)
42 |
O-RING ALLUMEUR OEM PIAGGIO PORTER 1998 > 2010-1919487102000 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/3/2/8/4/img/123284.jpg)
80 |
SENSOR CAMSHAFT OEM 1300 PORTER 2000 > 2009-1930087101000 More informationQuantity required : 1 |
||||||
|
80 |
SENSOR CAMSHAFT OEM 1300 PORTER 2000 > 2009-1930087101000 More informationQuantity required : 1 |
||||||
|
130 |
1923587120000 - KIT JOINT More informationQuantity required : 2 |
||||||
|
132 |
1912187216000 - PLAQUE More informationQuantity required : 1 |
||||||
|
143 |
1923287205000 WASHER More informationQuantity required : 2 |
||||||
|
150 |
SENSOR CAMSHAFT OEM 1300 PORTER 2000 > 2009-1930087101000 More informationQuantity required : 1 |
||||||
|
151 |
9004119198000 - BOULON More informationQuantity required : 2 |
