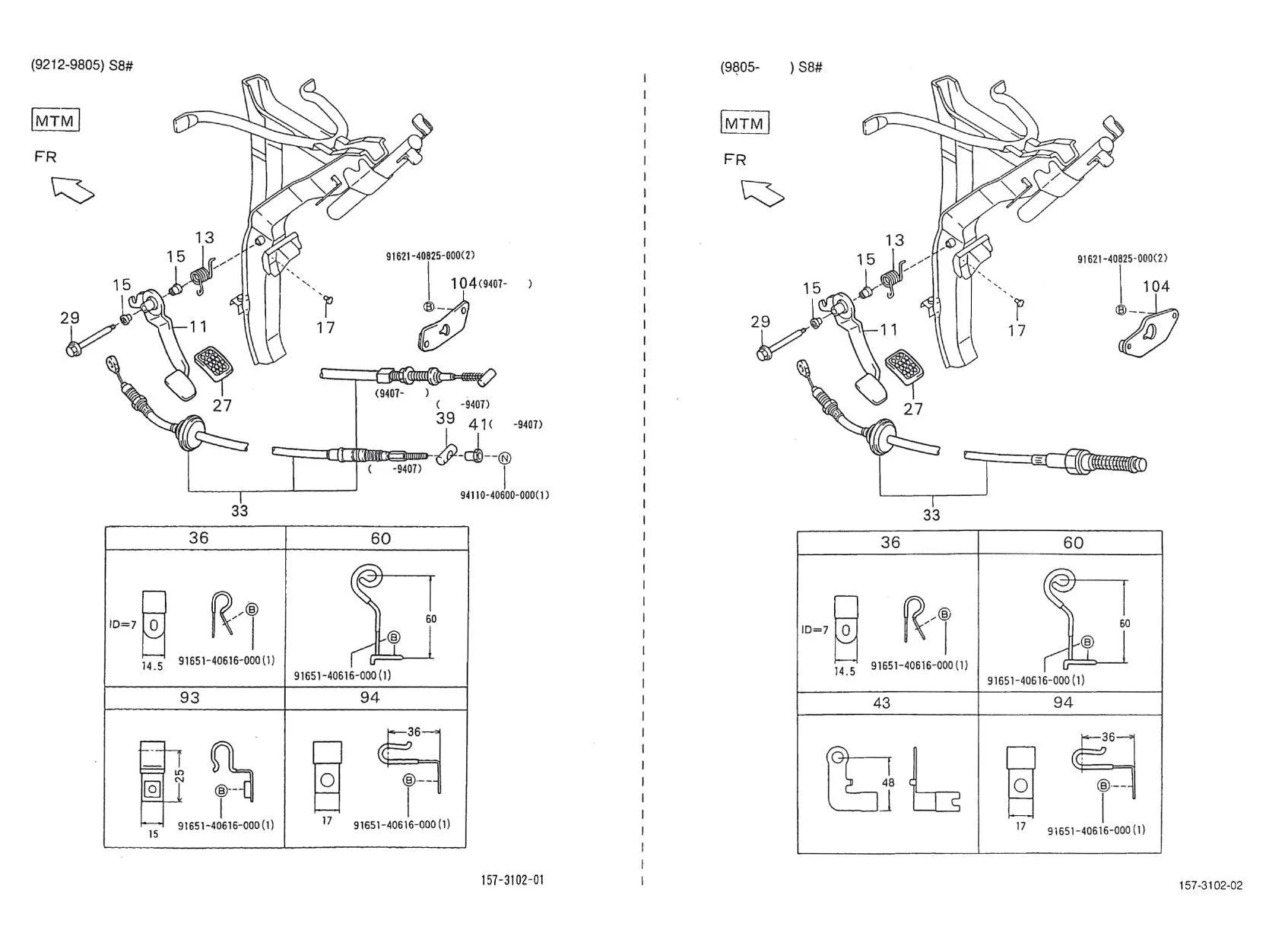

Transmission : 03.020 PEDALE EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/343/Porter_1000-1300_Pick-Van_1992-2009_03.020.PNG)
11 |
3130187510000 - PEDALE EMBR. More informationQuantity required : 1 |
||||||
|
11 |
Pédale d'embrayage |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/3/6/5/img/119365.jpg)
11 |
PEDALE CLUTCH OEM PORTER 2009 > 2020-3130187Z07000 More informationQuantity required : 1 |
||||||
|
13 |
RESSORT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/5/1/0/img/114510.jpg)
13 |
SPRING PEDALE CLUTCH OEM PIAGGIO PORTER 2020 <-9004508350000 More informationQuantity required : 1 |
||||||
|
15 |
DOUILLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/1/2/4/img/115124.jpg)
15 |
9004386115000 - BUSE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/3/5/7/img/113357.jpg)
17 |
BUFFER RUBBER DE PEDALE CLUTCH OEM PIAGGIO PORTER 1998-2020-1E000539 More informationQuantity required : 2 |
||||||
|
17 |
TAMPON |
||||||
|
17 |
BUFFER RUBBER DE PEDALE CLUTCH OEM PIAGGIO PORTER 1998-2020-1E000539 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/0/6/8/img/112068.jpg)
27 |
PROTECTOR/RUBBER DE PEDALE OEM PIAGGIO PORTER 2020 <-262128 More informationQuantity required : 1 |
||||||
|
27 |
|
||||||
|
29 |
AXE PEDALE |
||||||
|
29 |
SPINDLE PEDALE CLUTCH OEM PIAGGIO PORTER 2020 <-D3132487Z02 More informationQuantity required : 1 |
||||||
|
33 |
CABLE EMBRAY. |
||||||
|
33 |
3134087D22000 - CABLE EMBRAY. More informationQuantity required : 1 |
||||||
|
33 |
3134087D23000 - CABLE EMBRAY. More informationQuantity required : 1 |
||||||
|
33 |
3134087D28000 CABLE EMBRAY. More informationQuantity required : 1 |
||||||
|
33 |
3134087D36000 - CABLE EMBRAY. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/5/5/2/img/121552.jpg)
33 |
CABLE/CONTROL/TRANSMISSION CLUTCH OEM PIAGGIO PORTER (ENGINE CB41-CB42 3 CYLINDRES) 1992 > 2009-3134087D37000 More informationQuantity required : 1 |
||||||
|
33 |
CABLE EMBRAY. |
||||||
|
33 |
3134087D39000 - CABLE EMBRAY. More informationQuantity required : 1 |
||||||
|
33 |
3134087Z12000 - CABLE EMBRAYAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/6/1/9/img/118619.jpg)
33 |
CABLE/CONTROL/TRANSMISSION CLUTCH OEM PIAGGIO PORTER (ENGINE ENGINE HCE 1300 4 CYLINDRES) 1992 > 2009-3134087Z13000 More informationQuantity required : 1 |
||||||
|
36 |
Collier |
||||||
|
39 |
PIVOT |
||||||
|
41 |
ECROU |
||||||
|
43 |
SUPPORT CABLE EMBRAY |
||||||
|
60 |
COLLIER |
||||||
|
93 |
COLLIER |
||||||
|
93 |
COLLIER |
||||||
|
94 |
B005040 CLAMP More informationQuantity required : 1 |
||||||
|
104 |
PLAQUE |
||||||
|
104 |
3112587Z02000 PLATE More informationQuantity required : 1 |
||||||
|
105 |
VIS |
||||||
|
106 |
ECROU |
||||||
|
107 |
9165140616000 - BOULON More informationQuantity required : 1 |
||||||
|
108 |
9165140616000 - BOULON More informationQuantity required : 1 |
