Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter 1000-1300 Pick-Van 1992-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

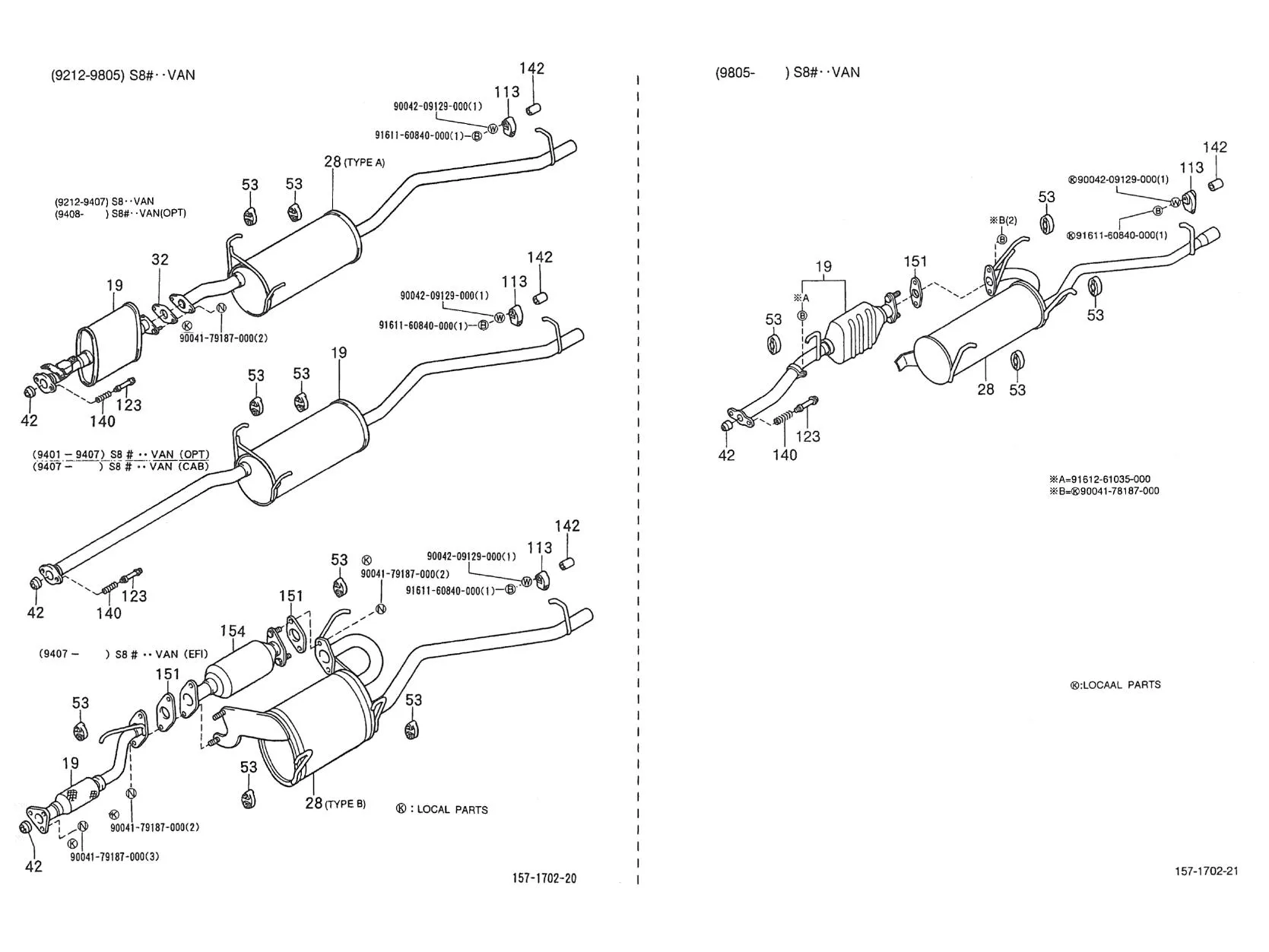

Moteur : 01.201 POT D’ÉCHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/343/Porter_1000-1300_Pick-Van_1992-2009_01.201.PNG)
19 |
SILENCIEUX |
||||||
|
19 |
ECHAPPEMENT PRIMAIRE |
||||||
|
19 |
1742087Z01000 SILENCER More informationQuantity required : 2 |
||||||
|
19 |
263163 - ECHAPPEMENT PRIMAIRE More informationQuantity required : 2 |
||||||
|
19 |
SILENCIEUX |
||||||
|
28 |
1743087Z04000 - ECHAPPEMENT AR More informationQuantity required : 2 |
||||||
|
28 |
SILENCIEUX |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/3/7/4/3/img/123743.jpg)
28 |
REAR SILENCER "PIAGGIO GENUINE PART" PIAGGIO PORTER VAN - 1300 CC 1994>1998 -1743087Z15000 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/8/4/5/9/img/118459.jpg)
32 |
GASKET EXHAUST OEM PIAGGIO PORTER 1998 > 2020-B005007 More informationQuantity required : 2 |
||||||
|
42 |
1745187507000 GASKET More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/7/8/4/img/117784.jpg)
42 |
GASKET EXHAUST OEM PIAGGIO PORTER 1300CM-1745187710000 More informationQuantity required : 2 |
||||||
|
42 |
9004817015000 - JOINT More informationQuantity required : 2 |
||||||
|
53 |
1756787Z02000 BRACKET More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/4/1/9/img/113419.jpg)
53 |
RUBBER MOUNT SILENCER EXHAUST OEM PIAGGIO PORTER 2020 <-1756787Z03000 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/0/0/0/img/116000.jpg)
123 |
BOLT/SCREW MOUNTING EXHAUST OEM PIAGGIO PORTER 1998 > 2010-1756987703000 More informationQuantity required : 1 |
||||||
|
140 |
1715287501000 - RESSORT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/6/3/4/img/119634.jpg)
140 |
SPRING DE FLANGE EXHAUST OEM PIAGGIO PORTER-1715287502000 More informationQuantity required : 2 |
||||||
|
140 |
1715287Z01000 SPRING More informationQuantity required : 2 |
||||||
|
142 |
9004560227000 SPACER More informationQuantity required : 2 |
||||||
|
151 |
GASKET EXHAUST OEM PIAGGIO PORTER 1998 > 2020-B005007 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/9/1/img/110491.jpg)
156 |
SCREW TH (8X40) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-D9161160840 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/4/9/img/110349.jpg)
157 |
NUT FLANGE SILENCER OEM PIAGGIO PORTER 1998 > 2020-9004179187000 More informationQuantity required : 2 |
||||||
|
158 |
D9004209129 - RONDELLE More informationQuantity required : 1 |
||||||
|
159 |
SCREW TH (8X40) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-D9161160840 More informationQuantity required : 1 |
||||||
|
160 |
9161161035000 - ECROU More informationQuantity required : 1 |
||||||
|
161 |
NUT FLANGE SILENCER OEM PIAGGIO PORTER 1998 > 2020-9004179187000 More informationQuantity required : 3 |
