Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 1000 Porter 1000-1300 Pick-Van 1992-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

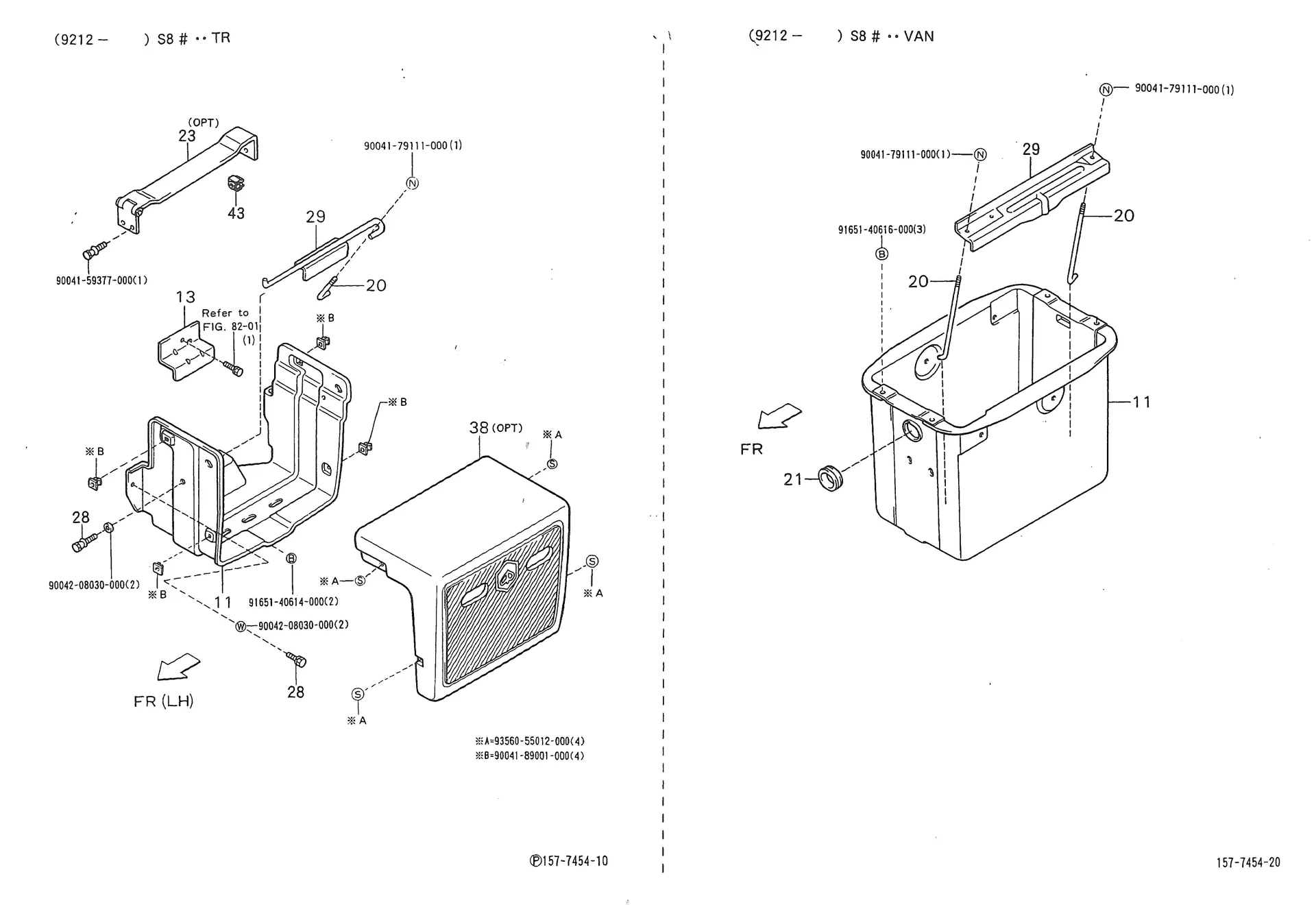

Chassis : 04.380 SUPPORT BATTERIE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/343/Porter_1000-1300_Pick-Van_1992-2009_04.380.PNG)
11 |
7440387Z01000 - PORTE BATT. More informationQuantity required : 1 |
||||||
|
11 |
BRACKET BATTERY OEM PIAGGIO PORTER 2009 <-7440387Z03000 More informationQuantity required : 1 |
||||||
|
13 |
PROTECTION |
||||||
|
20 |
7445187Z02000 BOLT More informationQuantity required : 1 |
||||||
|
20 |
|
||||||
|
20 |
BOULON |
||||||
|
21 |
9004480123000 GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
23 |
D7441787Z01 BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/6/2/img/109062.jpg)
28 |
SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352 More informationQuantity required : 2 |
||||||
|
28 |
SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352 More informationQuantity required : 2 |
||||||
|
29 |
7448187Z01000 CLAMP More informationQuantity required : 1 |
||||||
|
38 |
7446187Z01000 - COUVERCLE More informationQuantity required : 1 |
||||||
|
43 |
D4815587Z01 NUT More informationQuantity required : 1 |
||||||
|
44 |
|
||||||
|
45 |
9004159377000 SCREW More informationQuantity required : 1 |
||||||
|
46 |
9004208030000 WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/0/9/5/img/112095.jpg)
47 |
SCREW PARKER (5X22) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-9356055012000 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/6/0/img/111460.jpg)
48 |
CLIPS OEM PIAGGIO PORTER 2020 <-004189001000 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/9/8/img/151198.jpg)
49 |
BOLT TH (6X14) WITH WASHER OEM PIAGGIO COMMON A LA RANGE-CM287314 More informationQuantity required : 2 |
||||||
|
50 |
|
||||||
|
51 |
|
||||||
|
52 |
9165140616000 - BOULON More informationQuantity required : 3 |
