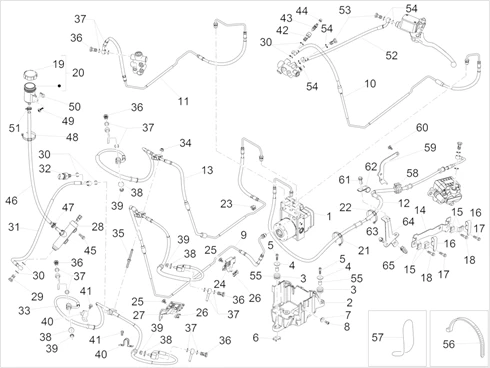

Vehicle Exploded View - PIAGGIO MP3 500 LT Business 2014-2015

	P2R reference	158234
	Maker reference	1C004341

1C004341 - CENTRALE

	P2R reference	158234
	Maker reference	1C001261

1C004341 - CENTRALE

	P2R reference	78105
	Maker reference	2B000650

2B000650 - SUPPORT

	P2R reference	67134
	Maker reference	576565

FAIRLEAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -576565

	P2R reference	65356
	Maker reference	0130925

013092 - RONDELLE S01309200

	P2R reference	72720
	Maker reference	B016774

SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774

	P2R reference	72720
	Maker reference	414837

SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

	P2R reference	72597
	Maker reference	AP9100053

AP9100053 - BUSSOLA COLLETTO D16-D10-SP3.5

	P2R reference	110649
	Maker reference	840541

840541 - VIS

	P2R reference	140111
	Maker reference	1C001089R

1C001089R - TUBE FREIN

	P2R reference	140132
	Maker reference	1C001491R

1C001491R - CANALISATEUR GAU.

	P2R reference	140343
	Maker reference	2B001195R

2B001195R - CANALISATEUR GAU.

	P2R reference	140131
	Maker reference	1C001490R

1C001490R - CANALISATION FREINS

	P2R reference	78244
	Maker reference	2B000907

REAR BRAKE HOSE "PIAGGIO GENUINE PART" 500 MP3 2014> -2B000907

	P2R reference	174657
	Maker reference	1C005728R

1C005728R - BRAKE HOSE RIGHT CALIPER

	P2R reference	174657
	Maker reference	1C001097R

1C005728R - BRAKE HOSE RIGHT CALIPER

	P2R reference	86750
	Maker reference	647825

REAR BRAKE CALIPER BRACKET "PIAGGIO GENUINE PART" 350-400-500 MP3, 400 X-EVO, X8 -647825-

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

	P2R reference	68067
	Maker reference	649378

649378 - COLLIER

	P2R reference	72723
	Maker reference	B016777

B016777 - VIS

	P2R reference	72725
	Maker reference	B016792

SCREW - M6X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -B016792

	P2R reference	79623
	Maker reference	498431

498431 - BOUCHON RESERV LOOCK

	P2R reference	77469
	Maker reference	274598

MAIN BRAKE FLUID TANK "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/APRILIA 500 FUOCO -274598

	P2R reference	65742
	Maker reference	145298

LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298

	P2R reference	66017
	Maker reference	257134

257134 - COLLIER

	P2R reference	65790
	Maker reference	179013

179013 - RESSORT

	P2R reference	75907
	Maker reference	1B001658

1B001658 - PLAQUE SUPPORT TUYAU

	P2R reference	78109
	Maker reference	2B000666

2B000666 - PLAQUE SUPPORT TUYAU

	P2R reference	71973
	Maker reference	AP8152339

SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339

	P2R reference	65998
	Maker reference	248419

248419 - PLAQUETTE PLASTIQUE

	P2R reference	78108
	Maker reference	2B000665

2B000665 - PLAQUE SUPPORT TUYAU

	P2R reference	86871
	Maker reference	648798

BRAKE MASTER CYLINDER- "PIAGGIO GENUINE PART" 125-250-300-350-400-500 MP3 -648798

	P2R reference	66050
	Maker reference	265451

SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451

	P2R reference	65723
	Maker reference	127927

COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927

	P2R reference	83044
	Maker reference	601781

BRAKE PIPE-FROM MAIN MASTER CYLINDER TO PRESSURE UNIT "PIAGGIO GENUINE PART" 125-250-300-350-400-500 MP3/GILERA 500 FUOCO -601781

	P2R reference	85926
	Maker reference	640295

OIL PRESSURE SWITCH "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -640295

	P2R reference	82153
	Maker reference	58517R

58517R - TUYAU A FREIN

	P2R reference	82158
	Maker reference	58527R

58527R - CANALISATEUR GAU.

	P2R reference	66187
	Maker reference	288245

NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245

	P2R reference	78246
	Maker reference	2B000952

2B000952 - VIS SANS T?TE

	P2R reference	66050
	Maker reference	265451

SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451

	P2R reference	65723
	Maker reference	127927

COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927

	P2R reference	65368
	Maker reference	0139505

013950 - RONDELLE S01395000

	P2R reference	66187
	Maker reference	288245

NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245

	P2R reference	83058
	Maker reference	601970

601970 - COLLIER

	P2R reference	70959
	Maker reference	969296

969296 - BOULON

	P2R reference	82228
	Maker reference	597033

597033 - JOINT FREIN

	P2R reference	87271
	Maker reference	651461

651461 - VIS DE PURGE FREIN

	P2R reference	87272
	Maker reference	651462

651462 - CAPUCHON

	P2R reference	65447
	Maker reference	0186395

018639 - VIS

	P2R reference	86974
	Maker reference	649563

649563 - TUBE JONCTION

	P2R reference	72863
	Maker reference	CM001901

CM001901 - COLLIER

	P2R reference	65742
	Maker reference	145298

LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298

	P2R reference	73358
	Maker reference	CM178603

SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603

	P2R reference	72925
	Maker reference	CM017409

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017409

	P2R reference	72874
	Maker reference	CM001913

COLLIER (12-22MM) SERRAGE TUBE ORIGINE PIAGGIO COMMUN A LA GAMME -CM001913

	P2R reference	87121
	Maker reference	650718

650718 - CANALISATEUR

	P2R reference	66050
	Maker reference	265451

SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451

	P2R reference	65723
	Maker reference	127927

COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927

	P2R reference	66123
	Maker reference	273288

SPACER- "PIAGGIO GENUINE PART" COMMON TO THE RANGE -273288

	P2R reference	71394
	Maker reference	AP8120416

AP8120416 - COLLIER, NOIR

	P2R reference	72299
	Maker reference	AP8221150

AP8221150 - GUIDE-CABLE

	P2R reference	72909
	Maker reference	CM006908

CM006908 - COLLIER

	P2R reference	75382
	Maker reference	1A002618

1A002618 - PATTE

	P2R reference	72714
	Maker reference	B016762

B016762 - VIS M6X65

	P2R reference	72723
	Maker reference	B016777

B016777 - VIS

	P2R reference	68484
	Maker reference	675510

675510 - COLLIER

	P2R reference	72720
	Maker reference	B016774

SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774

	P2R reference	76064
	Maker reference	1C000888

1C000888 - PATTE

	P2R reference	65935
	Maker reference	217280

217280 - COLLIER
