Vehicle Exploded View - PIAGGIO MP3 500 LT Business 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

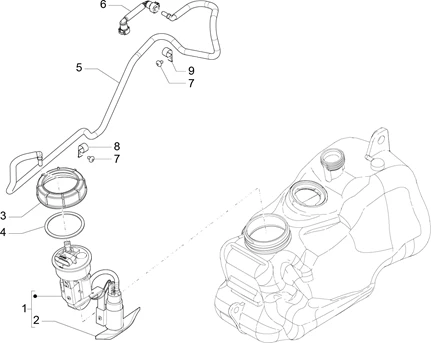

Châssis - parties plastiques - carrosseries : 02.53 INSTALATION DE L'ALIMENTATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/29/MP3_500_LT_Business_2014-2015_02.53.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/9/3/2/img/85932.jpg)
1 |
FUEL PUMP "PIAGGIO GENUINE PART" 300-400-500 MP3 -640315 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/7/4/6/img/85746.jpg)
2 |
FUEL PUMP FILTER"PIAGGIO GENUINE PART" 300-400-500 MP3, 400 X8, 400 X-EVO -639455 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/3/3/img/67133.jpg)
3 |
576546 - ECROU POMPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/8/1/img/127181.jpg)
4 |
FUEL GAUGE GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -656003 More informationQuantity required : 1 |
||||||
5 |
1B001316 - TUYAU ESSENCE More informationQuantity required : 1 |
||||||
|
6 |
1B001315 - TUBO CARBURANTE More informationQuantity required : 1 |
||||||
|
7 |
959614 - VIS More informationQuantity required : 4 |
||||||
|
8 |
1B001321 - COLLIER More informationQuantity required : 3 |
||||||
|
9 |
675510 - COLLIER More informationQuantity required : 2 |
