Vehicle Exploded View - PIAGGIO MP3 500 LT Business 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

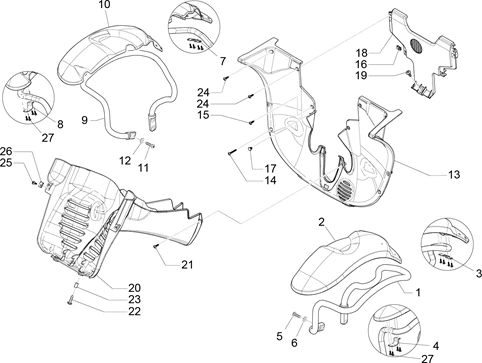

Châssis - parties plastiques - carrosseries : 02.33 LOGEMENT ROUE - GARDE BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/29/MP3_500_LT_Business_2014-2015_02.33.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/0/7/1/img/76071.jpg)
1 |
MUDGUARD SUPPORT- FRONT LEFT "PIAGGIO GENUINE PART" 300-350-500 MP3 -1C000994 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/3/9/8/img/146398.jpg)
2 |
FRONT MUDGUARD- LEFT "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -1B004095 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/2/4/4/img/87244.jpg)
3 |
REAR BRACKET FOR FRONT MUDGUARD "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/GILERA 500 FUOCO -651271 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/0/7/0/img/76070.jpg)
4 |
FRONT BRACKET "PIAGGIO GENUINE PART" -1C000992 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/6/6/img/67066.jpg)
5 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -564606 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
6 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 2 |
||||||
|
7 |
REAR BRACKET FOR FRONT MUDGUARD "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/GILERA 500 FUOCO -651271 More informationQuantity required : 1 |
||||||
|
8 |
FRONT BRACKET "PIAGGIO GENUINE PART" -1C000992 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/0/7/2/img/76072.jpg)
9 |
MUDGUARD SUPPORT- FRONT RIGHT "PIAGGIO GENUINE PART" 300-350-500 MP3 -1C000997 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/3/9/9/img/146399.jpg)
10 |
FRONT MUDGUARD- RIGHT "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -1B004096 More informationQuantity required : 1 |
||||||
|
11 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -564606 More informationQuantity required : 2 |
||||||
|
12 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/7/9/0/img/84790.jpg)
13 |
FRONT WHEEL COMPARTMENT "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -623255 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/3/1/1/img/96311.jpg)
14 |
CM180703 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
15 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
16 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/7/8/img/65678.jpg)
17 |
090958 - TAMPON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/6/4/7/img/90647.jpg)
18 |
672142 - COUVERCLE LOGEM.ROUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
19 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179201 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/8/3/7/img/75837.jpg)
20 |
WHEEL HOUSING COVER "PIAGGIO GENUINE PART" 125-250-400 2007>, 300-500 MP3 2010>/GILERA 500 FUOCO 2007> -1B001210 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/7/2/img/73372.jpg)
21 |
SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/7/img/73367.jpg)
22 |
CM179302 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/8/4/5/img/75845.jpg)
23 |
1B001259 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
24 |
SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
25 |
SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603 More informationQuantity required : 2 |
||||||
|
26 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
27 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498 More informationQuantity required : 16 |
All the exploded views of this vehicle
-
