Vehicle Exploded View - PIAGGIO MP3 500 LT Business 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

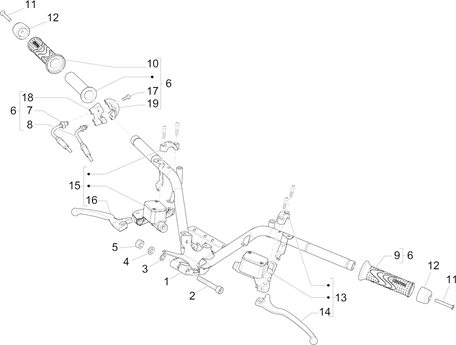

Guidon/direction : 03.06 GUIDON - MAÎTRE CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/29/MP3_500_LT_Business_2014-2015_03.06.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/1/1/img/158211.jpg)
1 |
HANDLEBAR "PIAGGIO GENUINE PART"300-500 MP3 BUZINESS 2014>, 350 MP3 2018> -1B006542R More informationQuantity required : 1 |
||||||
|
1 |
HANDLEBAR "PIAGGIO GENUINE PART"300-500 MP3 BUZINESS 2014>, 350 MP3 2018> -1B006542R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/4/5/9/img/90459.jpg)
2 |
668874 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/3/6/img/110336.jpg)
3 |
267917 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/0/img/65350.jpg)
4 |
012543 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/8/img/65378.jpg)
5 |
015330 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/8/6/2/img/95862.jpg)
6 |
THROTTLE HANDLE "PIAGGIO GENUINE PART" 500 MP3 2014> -CM087706 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/2/3/8/img/78238.jpg)
7 |
THROTTLE TRANSMISSION CABLE (UPPER) "PIAGGIO GENUINE PART" 500 MP3 BUSINESS/SPORT 2014> -2B000873 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/2/3/9/img/78239.jpg)
8 |
THROTTLE TRANSMISSION CABLE (LOWER) "PIAGGIO GENUINE PART" 500 MP3 BUSINESS/SPORT 2014> -2B000874 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/7/8/4/img/95784.jpg)
9 |
LEFT HAND GRIP "PIAGGIO GENUINE PART" 125-250-300-350-400-500 MP3, 125-300-350 BEVERLY, 125-350-500 X10 -CM084201 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/7/8/5/img/95785.jpg)
10 |
RIGHT HAND GRIP "PIAGGIO GENUINE PART" 125-250-300-350-400-500 MP3, 125-300-350 BEVERLY, 125-350-500 X10 -CM084202 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/4/3/img/67143.jpg)
11 |
SCREW - FOR BAR ENDS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -576836 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/4/3/6/img/88436.jpg)
12 |
BAR ENDS - CHROME "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 DROIT OU GAUCHE -654603 More informationQuantity required : 2 |
||||||
13 |
CM081216 - MA?T. CYL. FREIN AV More informationQuantity required : 1 |
||||||
|
13 |
LEFT BRAKE MASTER CYLINDER- "PIAGGIO GENUINE PART" 300-500 MP3 2014> -CM089806- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/0/5/3/img/76053.jpg)
14 |
RIGHT/LEFT BRAKE LEVER - "PIAGGIO GENUINE PART" 300-500 MP3 BUSINESS/SPORT 2014> -1C000809 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/3/6/img/67436.jpg)
14 |
LEFT/RIGHT BRAKE LEVER - "PIAGGIO GENUINE PART" 125-250-400-500 MP3, BEVERLY, X-EVO/GILERA 50-125 DNA, 125-250-300 NEXUS, 500 FUOCO (HENG-TONG) -600475 More informationQuantity required : 1 |
||||||
|
15 |
FRONT BRAKE MASTER CYLINDER- "PIAGGIO GENUINE PART" 300-500 MP3 BUSINESS -CM086011- More informationQuantity required : 1 |
||||||
|
15 |
CM089805 - HYDRAULIC BRAKE PUMP More informationQuantity required : 1 |
||||||
|
16 |
RIGHT/LEFT BRAKE LEVER - "PIAGGIO GENUINE PART" 300-500 MP3 BUSINESS/SPORT 2014> -1C000809 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/6/4/2/img/86642.jpg)
16 |
RIGHT/LEFT BRAKE LEVER - "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, BEVERLY, 400 X-EVO/GILERA 500 NEXUS, FUOCO (BREMBO) -646829 More informationQuantity required : 1 |
||||||
|
17 |
975805 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/2/6/1/img/109261.jpg)
18 |
598369 - LOWER HALF CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/3/1/4/img/109314.jpg)
19 |
666758 - LOWER HALF CLAMP More informationQuantity required : 1 |
