Vehicle Exploded View - PIAGGIO MP3 500 LT Business 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

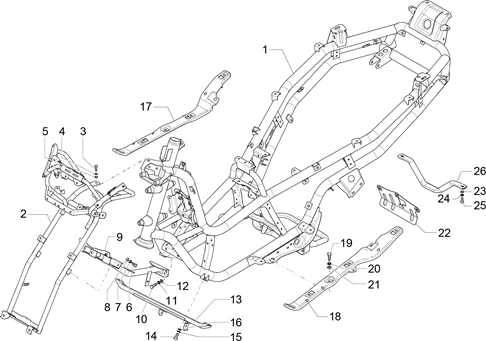

Châssis - parties plastiques - carrosseries : 02.01 CHÂSSIS/COQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/29/MP3_500_LT_Business_2014-2015_02.01.PNG)
1 |
1B0038495 - CHASSIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/2/2/9/img/78229.jpg)
2 |
FRONT SUB. CHASSIS "PIAGGIO GENUINE PART" 300-500 MP3 BUSINESS, SPORT 2014> -1B0059555 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
3 |
031119 - BOULON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/9/img/65349.jpg)
4 |
012540 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/3/img/63773.jpg)
5 |
003038 - RONDELLA PIANA 8,4X18X2 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/7/img/65637.jpg)
6 |
031086 - VIS S03108600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
7 |
012533 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
8 |
003056 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/6/4/5/img/84645.jpg)
9 |
FRONT SUB-CHASSIS STRUT "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 2007>/GILERA 500 FUOCO 2007> -6227795 More informationQuantity required : 1 |
||||||
|
10 |
031119 - BOULON More informationQuantity required : 2 |
||||||
|
11 |
012540 - RONDELLE More informationQuantity required : 2 |
||||||
|
12 |
003038 - RONDELLA PIANA 8,4X18X2 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/8/3/5/img/84835.jpg)
13 |
FRONT PIPES CROSS PIN "PIAGGIO GENUINE PART" PIAGGIO 125-250-300-400-500 MP3 -6234865 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/9/img/65649.jpg)
14 |
031122 - BOULON FIX BRAS More informationQuantity required : 2 |
||||||
|
15 |
012540 - RONDELLE More informationQuantity required : 2 |
||||||
|
16 |
003038 - RONDELLA PIANA 8,4X18X2 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/9/5/img/158295.jpg)
17 |
RIGHT FOOTREST SUPPORT CROSS PIN "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -1B0063505 More informationQuantity required : 1 |
||||||
|
18 |
CM2614025 - TRAVERSE G. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/9/img/65639.jpg)
19 |
031088 - VIS S03108800 More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
20 |
016406 - RONDELLE S01640600 More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
21 |
013880 - RONDELLE More informationQuantity required : 7 |
||||||
|
22 |
1B001673 - DIAFRAMMA More informationQuantity required : 1 |
||||||
|
22 |
2B000868 - PROTECTION PARE-CHALEUR More informationQuantity required : 1 |
||||||
|
23 |
003038 - RONDELLA PIANA 8,4X18X2 More informationQuantity required : 2 |
||||||
|
24 |
012540 - RONDELLE More informationQuantity required : 2 |
||||||
|
25 |
031117 - BOULON S03111700 More informationQuantity required : 2 |
||||||
|
26 |
653294 - TUYAU More informationQuantity required : 1 |
