Vehicle Exploded View - PIAGGIO MP3 500 LT Business 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

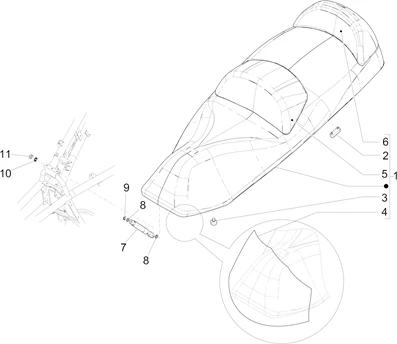

Châssis - parties plastiques - carrosseries : 02.39 SELLE/SIEGES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/29/MP3_500_LT_Business_2014-2015_02.39.PNG)
1 |
SADDLE- "PIAGGIO GENUINE PART" 300-500 MP3 BUSINESS 2014 -2B000657000C1- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/2/2/5/img/109225.jpg)
1 |
SADDLE- "PIAGGIO GENUINE PART" 300-500 MP3 2014> -2B000657000C3 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/2/img/66292.jpg)
2 |
296456 - TAMPON More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/5/7/img/67157.jpg)
3 |
SADDLE PAD "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -577492 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/2/4/0/img/78240.jpg)
4 |
SADDLE COVER "PIAGGIO GENUINE PART" 300-500 MP3 BUSINESS 2014> -2B000900 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/2/4/5/img/109245.jpg)
5 |
2B000791000C3 - DOSSERET PILOTE More informationQuantity required : 1 |
||||||
|
5 |
2B000791000C1 - DOSSERET More informationQuantity required : 1 |
||||||
|
6 |
2B000752000C3 - DOSSERET More informationQuantity required : 1 |
||||||
|
6 |
2B000752000C1 - DOSSERET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/6/4/2/img/91642_20251023160110.jpg)
7 |
SADDLE ACTUATOR "PIAGGIO GENUINE PART" 300-350-500 MP3 2014>, 125-350-500 X10 2012 -674301 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/1/1/1/img/91111.jpg)
8 |
673412 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/9/8/img/63798.jpg)
9 |
005967 - CLIPS S00596700 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/9/img/65349.jpg)
10 |
012540 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
11 |
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108 More informationQuantity required : 1 |
