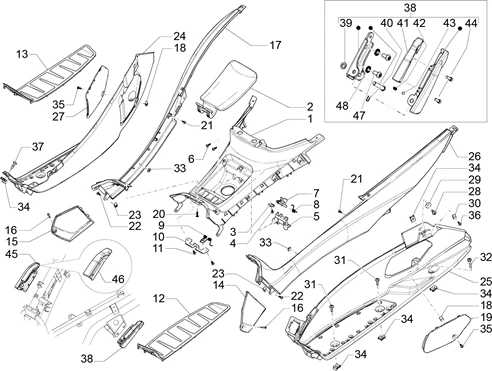

Vehicle Exploded View - PIAGGIO MP3 500 LT Business 2014-2015

	P2R reference	140081
	Maker reference	1B0039680000C

1B0039680000C - COUVERCLE CENTRALE

	P2R reference	78159
	Maker reference	2B0007110000C

TRAPDOOR FOR FUEL CAP - "PIAGGIO GENUINE PART" 300-350-500 MP3 2014> -2B0007110000C

	P2R reference	72011
	Maker reference	AP8161182

FUEL TRAPDOOR BRACKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -AP8161182

	P2R reference	66301
	Maker reference	297498

SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498

	P2R reference	67627
	Maker reference	620491

620491 - SUPPORT CROCHET

	P2R reference	66092
	Maker reference	270793

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -270793

	P2R reference	67135
	Maker reference	576626

FUEL TRAPDOOR HOOK "PIAGGIO GENUINE PART" BEVERLY, MP3 , X10 , X7, X8, X9, X-EVO -576626

	P2R reference	67117
	Maker reference	575604

SPRING FOR FUEL TRAPDOOR "PIAGGIO GENUINE PART" BEVERLY, MP3, X8, X9, X10, X-EVO -575604

	P2R reference	84019
	Maker reference	621507

621507 - RESSORT

	P2R reference	85237
	Maker reference	624465

PLAQUE DE FIXATION DE LA TRAPPE ESSENCE ORIGINE PIAGIO MP3, X7, X8, X-EVO/ GILERA FUOCO 500 -624465-

	P2R reference	68888
	Maker reference	830056

830056 - BAGUE

	P2R reference	84781
	Maker reference	623186

623186 - TAPIS GAU.

	P2R reference	88998
	Maker reference	655842

655842 - TAPIS DRO.

	P2R reference	78222
	Maker reference	2B000750

2B000750 - ABATTANT ACCES

	P2R reference	78223
	Maker reference	2B000750000ET

FUSE ACCESS TRAPDOOR (LEFT) "PIAGGIO GENUINE PART" 300-500 MP3 BUSINESS -2B000750000ET

	P2R reference	78219
	Maker reference	2B000749

2B000749 - ABATTANT ACCES

	P2R reference	78220
	Maker reference	2B000749000ET

2B000749000ET - ABATTANT

	P2R reference	65388
	Maker reference	0157285

015728 - VIS

	P2R reference	78177
	Maker reference	2B000717

2B000717 - COUVERCLE CENTRALE

	P2R reference	156971
	Maker reference	1B002013

1B002013 - COUVERCLE CENTRAL D.

	P2R reference	127443
	Maker reference	1B002013000ET

1B002013000ET - COUVERCLE CENTRAL D.

	P2R reference	72926
	Maker reference	CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

	P2R reference	87796
	Maker reference	653287000C

SPARK PLUG TRAPDOOR - LEFT "PIAGGIO GENUINE PART" 125-250-300-350-400-500 MP3 -653287000C

	P2R reference	73372
	Maker reference	CM180701

SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701

	P2R reference	66301
	Maker reference	297498

SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498

	P2R reference	73358
	Maker reference	CM178603

SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603

	P2R reference	72926
	Maker reference	CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

	P2R reference	78183
	Maker reference	2B0007190000C

RIGHT FOOTREST "PIAGGIO GENUINE PART" 300-350-500 MP3 -2B0007190000C

	P2R reference	178064
	Maker reference	2B0007200000C

1B0085840000C - LEFT FOOTBOARD

	P2R reference	178064
	Maker reference	1B0085840000C

1B0085840000C - LEFT FOOTBOARD

	P2R reference	127442
	Maker reference	1B002012000ET

LEFT CENTRAL SIDE "PIAGGIO GENUINE PART" 300-500 MP3 BUSINESS 2014> -1B002012000ET-

	P2R reference	78180
	Maker reference	2B000718

2B000718 - COUVERCLE CENTRALE

	P2R reference	156972
	Maker reference	1B002012

1B002012 - COUVERCLE CENTRAL G.

	P2R reference	84789
	Maker reference	623254000C

SPARK PLUG TRAPDOOR -RIGHT "PIAGGIO GENUINE PART" 125-250-300-350-400-500 MP3 -623254000C

	P2R reference	73366
	Maker reference	CM179301

CM179301 - VIS

	P2R reference	66296
	Maker reference	297029

297029 - RONDELLE

	P2R reference	72926
	Maker reference	CM017410

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410

	P2R reference	73367
	Maker reference	CM179302

CM179302 - VIS

	P2R reference	73368
	Maker reference	CM179303

CM179303 - VIS

	P2R reference	65959
	Maker reference	230359

LOCKING WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -230359

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485

	P2R reference	73358
	Maker reference	CM178603

SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603

	P2R reference	73357
	Maker reference	CM178601

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601

	P2R reference	96291
	Maker reference	CM179307

CM179307 - VIS

	P2R reference	89534
	Maker reference	65682300ET

LEFT PASSENGER FOOTREST "PIAGGIO GENUINE PART" 300-500 MP3 2014> -65682300ET

	P2R reference	63779
	Maker reference	0030585

003058 - RONDELLE S00305800

	P2R reference	66045
	Maker reference	259933

259933 - RESSORT

	P2R reference	89625
	Maker reference	656993

656993 - TAPIS REPOSE PIED

	P2R reference	162561
	Maker reference	295590

2955909 - RESSORT

	P2R reference	162561
	Maker reference	2955909

2955909 - RESSORT

	P2R reference	181953
	Maker reference	2955916

2955916 - BILLE

	P2R reference	181953
	Maker reference	295591

2955916 - BILLE

	P2R reference	94322
	Maker reference	975805

975805 - VIS

	P2R reference	89538
	Maker reference	65682500ET

RIGHT PASSENGER FOOTREST "PIAGGIO GENUINE PART" 300-500 MP3 2014> -65682500ET

	P2R reference	89626
	Maker reference	656994

656994 - TAPIS REPOSE PIED

	P2R reference	65649
	Maker reference	0311225

031122 - BOULON FIX BRAS

	P2R reference	63779
	Maker reference	0030585

003058 - RONDELLE S00305800
