Vehicle Exploded View - PIAGGIO MP3 500 LT Business 2014-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

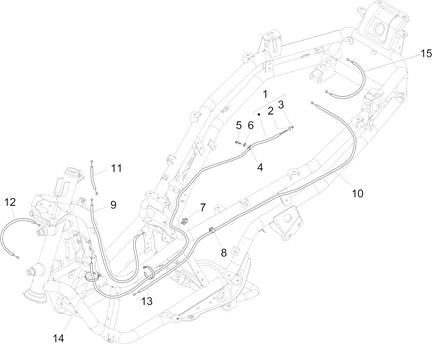

Instalation du freins - transmisisons : 05.03 TRANSMISSIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/29/MP3_500_LT_Business_2014-2015_05.03.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/2/6/7/img/87267.jpg)
1 |
CABLE KIT FOR PARKING BRAKE (FROM UNIT TO CALIPER) "PIAGGIO GENUINE PART" 400 MP3 2007>, 500 MP3 2010>/GILERA 500 FUOCO 2007> -651392 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/1/img/66051.jpg)
2 |
BUSH FOR BRAKE CABLE "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTER+ MAXISCOOTER -266040 More informationQuantity required : 1 |
||||||
3 |
B011531 - ECROU More informationQuantity required : 1 |
||||||
|
3 |
B011531 - ECROU More informationQuantity required : 1 |
||||||
|
4 |
675510 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
5 |
B016777 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/7/img/65967.jpg)
7 |
231590 - CLIPS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/9/img/72919.jpg)
8 |
CM013203 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/2/6/img/95126.jpg)
9 |
TRANSMISSION CABLE KIT- FOR FUEL TRAPDOOR "PIAGGIO GENUINE PART" MP3 125-250-300-400-500 -CM012824 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/5/0/img/95150.jpg)
10 |
CM012853 - TRANSMISSION OUVERTURE SELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/2/7/img/95127.jpg)
11 |
TRANSMISSION CABLE KIT- PARKING BRAKE (FROM LEVER TO UNIT) "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -CM012825 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/9/8/1/img/86981.jpg)
12 |
CABLE KIT FOR PARKING BRAKE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -649663 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
13 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
14 |
257134 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/2/5/img/95125.jpg)
15 |
CABLE KIT FOR BOOT OPENING "PIAGGIO GENUINE PART" MP3 125-250-300-400-500 -CM012823 More informationQuantity required : 1 |
