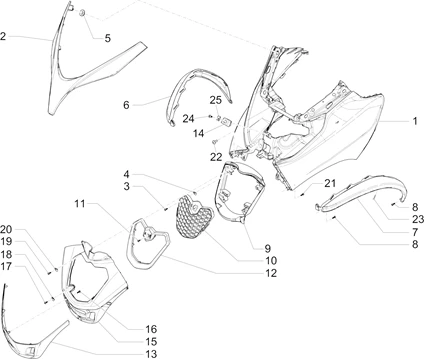

Châssis - parties plastiques - carrosseries : 02.26 TABLIER AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/29/MP3_500_LT_Business_2014-2015_02.26.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/6/3/6/img/174636.jpg)
1 |
1B006603 - TABLIER AV More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/1/2/2/img/78122.jpg)
1 |
FRONT SHIELD "PIAGGIO GENUINE PART" 300-500 MP3 BUSINESS 2014> BLACK 91/B -2B000687500NN More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/3/0/1/img/158301.jpg)
1 |
FRONT SHIELD "PIAGGIO GENUINE PART" 300-500 MP3 BUSINESS 2014> WHITE 505/A -1B006603000Q4 More informationQuantity required : 1 |
|||||||||
|
1 |
1B006603 - TABLIER AV More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/3/0/0/img/140300.jpg)
1 |
FRONT SHIELD "PIAGGIO GENUINE PART" 300-500 MP3 BUSINESS 2014> GREY 711/B -2B000687000EU More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/1/2/6/img/78126.jpg)
2 |
FRONT OPEN PANEL CLOSURE ORANGE PIAGGIO 300-500 MP3 BUSINESS 2014> RAW TO BE PAINT -2B000690 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/1/2/8/img/78128.jpg)
2 |
FRONT OPEN PANEL CLOSURE ORANGE PIAGGIO 300-500 MP3 BUSINESS 2014> GREY 711/B -2B000690000EU- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/1/3/0/img/78130.jpg)
2 |
FRONT OPEN PANEL CLOSURE "PIAGGIO GENUINE PART" 300-500 MP3 BUSINESS 2014> BLACK 91/B -2B000690000NN More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/1/3/2/img/78132.jpg)
2 |
FRONT OPEN PANEL CLOSURE "PIAGGIO GENUINE PART" 300-500 MP3 BUSINESS 2014> WHITE 505/A -2B000690000Q4 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/9/img/73359.jpg)
3 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178604 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
4 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/5/0/img/65850.jpg)
5 |
SILENTBLOC FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -1B000888 More informationQuantity required : 5 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/1/5/1/img/78151.jpg)
6 |
FRONT RIGHT SIDE EDGE "PIAGGIO GENUINE PART" 300-500 MP3 2014> -2B0007070000C5 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/1/5/0/img/78150.jpg)
7 |
FRONT LEFT SIDE EDGE "PIAGGIO GENUINE PART" 300-500 MP3 2014> -2B0007060000C5 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/7/2/img/73372.jpg)
8 |
SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/1/4/7/img/78147.jpg)
9 |
RADIATOR DUCT "PIAGGIO GENUINE PART" 300-500 MP3 BUSINESS -2B000703 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/1/4/8/img/78148.jpg)
10 |
RADIATOR GRID "PIAGGIO GENUINE PART" PIAGGIO 300-500 MP3 BUSINESS 2014> -2B000704 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
11 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/1/4/6/img/78146.jpg)
12 |
RADIATOR FRAME "PIAGGIO GENUINE PART" 300-500 MP3 BUSINESS 2014> -2B000702 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/1/4/0/img/78140.jpg)
13 |
FRONT LOWER SHIELD "PIAGGIO GENUINE PART" 300-500 MP3 BUSINESS -2B0006940000C More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/1/4/3/img/78143.jpg)
14 |
2B000699 - RESSORT SUPPORT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/1/3/7/img/78137.jpg)
15 |
RADIATOR SHIELD CLOSING "PIAGGIO GENUINE PART" 300-500 MP3 BUSINESS 2014> BLACK 91/B -2B000693500NN More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/1/3/9/img/78139.jpg)
15 |
RADIATOR SHIELD CLOSING "PIAGGIO GENUINE PART" 300-500 MP3 BUSINESS 2014> WHITE 505/A -2B000693500Q4 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/1/3/3/img/78133.jpg)
15 |
RADIATOR SHIELD CLOSING "PIAGGIO GENUINE PART" 300-500 MP3 BUSINESS 2014> RAW TO BE PAINTED -2B000693- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/1/3/5/img/78135.jpg)
15 |
RADIATOR SHIELD CLOSING "PIAGGIO GENUINE PART" 300-500 MP3 BUSINESS 2014> GREY 711/B -2B000693000EU More informationQuantity required : 1 |
|||||||||
|
16 |
SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701 More informationQuantity required : 5 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
17 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179201 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
18 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
19 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 4 |
|||||||||
|
20 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 4 |
|||||||||
|
21 |
SCREW - FOR FAIRINGS FASTENING (4X16) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM180701 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.jpg)
22 |
CM179301 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/1/img/73361.jpg)
23 |
CM178610 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
24 |
SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603 More informationQuantity required : 1 |
|||||||||
|
25 |
SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017410 More informationQuantity required : 1 |
|||||||||
All the exploded views of this vehicle
-
