Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 400 Ape TM 703 Diesel LCS 422CC 2005-2012 PIAGGIO VU

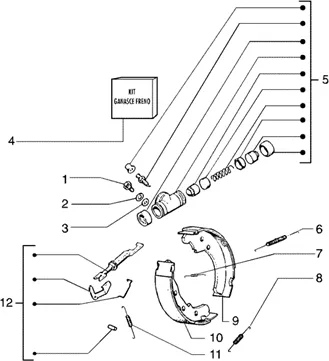

Roues : T38 CYLINDRES FREIN AV. - MÂCHOIRES
Cylindres Frein Av. - Mâchoires
Search

1
P2R reference P2R reference
Maker reference Maker reference 0300515

012536 - RONDELLE

2
P2R reference P2R reference 65347
Maker reference Maker reference 0125365

012536-WASHER

More information

Quantity required : 2

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

3
P2R reference P2R reference 63777
Maker reference Maker reference 0030565

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

More information

Quantity required : 2

154991 - SERIE MACHOIRE FREIN

4
P2R reference P2R reference 120581
Maker reference Maker reference 154991

154991 SERIE MACHOIRE BRAKE *

More information

Quantity required : 1

CYLINDER DE REAR WHEEL OEM PIAGGIO THREE-WHEELER APE POKER, TM 703-2451932

5
P2R reference P2R reference 121138
Maker reference Maker reference 2451932

CYLINDER DE REAR WHEEL OEM PIAGGIO THREE-WHEELER APE POKER, TM 703-2451932

More information

Quantity required : 1

SPRING DE BRAKE SHOE SET (112. 5) OEM PIAGGIO THREE-WHEELER APE CLASSIC 2006 >, APE TM 703-245038

6
P2R reference P2R reference 111378
Maker reference Maker reference 245038

SPRING DE BRAKE SHOE SET (112. 5) OEM PIAGGIO THREE-WHEELER APE CLASSIC 2006 >, APE TM 703-245038

More information

Quantity required : 1

SPRING DE BRAKE SHOE SET (L 30, 5) OEM PIAGGIO THREE-WHEELER APE POKER, TM 703-225549

7
P2R reference P2R reference 111587
Maker reference Maker reference 225549

SPRING DE BRAKE SHOE SET (L 30, 5) OEM PIAGGIO THREE-WHEELER APE POKER, TM 703-225549

More information

Quantity required : 2

SPRING DE BRAKE SHOE SET (L60. 5) OEM PIAGGIO THREE-WHEELER APE TM 703, POKER-178750

8
P2R reference P2R reference 111637
Maker reference Maker reference 178750

SPRING DE BRAKE SHOE SET (L60. 5) OEM PIAGGIO THREE-WHEELER APE TM 703, POKER-178750

More information

Quantity required : 1

BRAKE SHOE SET FRONT OEM PIAGGIO THREE-WHEELER APE TM 703 1997 > 2016 (SOLD INDIVIDUALLY)-568373

9
P2R reference P2R reference 117351
Maker reference Maker reference 568373

BRAKE SHOE SET FRONT OEM PIAGGIO THREE-WHEELER APE TM 703 1997 > 2016 (SOLD INDIVIDUALLY)-568373

More information

Quantity required : 1

BRAKE SHOE SET FRONT/REAR OEM PIAGGIO THREE-WHEELER APE TM 703 1997 > 2016/CARGO (VENDU A L UNITE)-568372

10
P2R reference P2R reference 117428
Maker reference Maker reference 568372

BRAKE SHOE SET FRONT/REAR OEM PIAGGIO THREE-WHEELER APE TM 703 1997 > 2016/CARGO (VENDU A L UNITE)-568372

More information

Quantity required : 1

SPRING DE BRAKE SHOE SET L = 69 OEM PIAGGIO THREE-WHEELER APE-178808

11
P2R reference P2R reference 111439
Maker reference Maker reference 178808

SPRING DE BRAKE SHOE SET L = 69 OEM PIAGGIO THREE-WHEELER APE-178808

More information

Quantity required : 1

GROUP OF ADJUSTMENT OF SET OF BRAKE REAR LEFT OEM PIAGGIO TRIPOREUR APE 7M703-644326

12
P2R reference P2R reference 116453
Maker reference Maker reference 644326

GROUP OF ADJUSTMENT OF SET OF BRAKE REAR LEFT OEM PIAGGIO TRIPOREUR APE 7M703-644326

More information

Quantity required : 1
