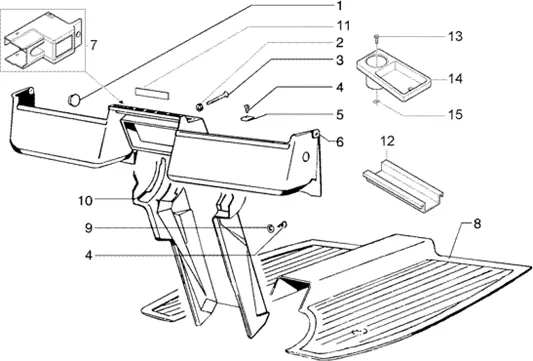

Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 400 Ape TM 703 Diesel LCS 422CC 2005-2012 PIAGGIO VU

Châssis : T21 TABLEAU DE BORD
Tableau De Bord
Search
098698 - BOUCHON

1
P2R reference P2R reference 110371
Maker reference Maker reference 0986985

098698 CAP

More information

Quantity required : 2

NUT (M12X1. 25) OEM PIAGGIO COMMON A LA RANGE-191962

2
P2R reference P2R reference 65813
Maker reference Maker reference 191962

NUT (M12X1. 25) OEM PIAGGIO COMMON A LA RANGE-191962

More information

Quantity required : 1

VIS

3
P2R reference P2R reference
Maker reference Maker reference 245860

VIS

SCREW AUTOTARAUDEUSE (4. 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015911

4
P2R reference P2R reference 65403
Maker reference Maker reference 0159115

SCREW AUTOTARAUDEUSE (4. 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015911

More information

Quantity required : 4

NUT SHEET METAL (4. 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017408

5
P2R reference P2R reference 72924
Maker reference Maker reference CM017408

NUT SHEET METAL (4. 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017408

More information

Quantity required : 2

567860 - TABLEAU DE BORD T1 P703V

6
P2R reference P2R reference 120631
Maker reference Maker reference 567860

567860 PANEL DE EDGE T1 P703V

More information

Quantity required : 1

613907 - PLANCHE

6
P2R reference P2R reference 120761
Maker reference Maker reference 613907

613907 - PLANCHE

More information

Quantity required : 1

614525 - TABLEAU DE BORD

6
P2R reference P2R reference 116805
Maker reference Maker reference 614525

614525 PANEL DE EDGE

More information

Quantity required : 1

613238 - CONSOLLE

7
P2R reference P2R reference 116099
Maker reference Maker reference 613238

613238 - CONSOLLE

More information

Quantity required : 1

614934 - TAPIS

8
P2R reference P2R reference 117757
Maker reference Maker reference 614934

614934 MAT

More information

Quantity required : 1

614935 - TAPIS

8
P2R reference P2R reference 117397
Maker reference Maker reference 614935

614935 - TAPIS

More information

Quantity required : 1

615359 - TAPIS

8
P2R reference P2R reference 119412
Maker reference Maker reference 615359

615359 - TAPIS

More information

Quantity required : 1

WASHER PLATE (4. 5X12X1) OEM PIAGGIO COMMON A LA RANGE-016670

9
P2R reference P2R reference 65425
Maker reference Maker reference 0166705

WASHER PLATE (4. 5X12X1) OEM PIAGGIO COMMON A LA RANGE-016670

More information

Quantity required : 1

568051 - COUVERCLE

10
P2R reference P2R reference 118303
Maker reference Maker reference 568051

568051 - COUVERCLE

More information

Quantity required : 1

568053 - CHASSIS

10
P2R reference P2R reference 118616
Maker reference Maker reference 568053

568053 - CHASSIS

More information

Quantity required : 1

MONOGRAMME

11
P2R reference P2R reference
Maker reference Maker reference 567982

MONOGRAMME

567986 - MENSOLA

12
P2R reference P2R reference 116361
Maker reference Maker reference 567986

567986 MENSOLA

More information

Quantity required : 1

SCREW AUTOTARAUDEUSE (4. 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015911

13
P2R reference P2R reference 65403
Maker reference Maker reference 0159115

SCREW AUTOTARAUDEUSE (4. 2X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-015911

More information

Quantity required : 2

613909 - PORTE-OBJET

14
P2R reference P2R reference 115059
Maker reference Maker reference 613909

613909 DOOR-OBJET

More information

Quantity required : 1

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017409

15
P2R reference P2R reference 72925
Maker reference Maker reference CM017409

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017409

More information

Quantity required : 2
