Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 400 Ape TM 703 Diesel LCS 422CC 2005-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

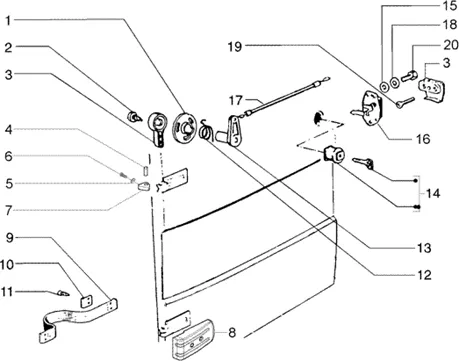

Châssis : T16 SERRURE PORTES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/332/Ape_TM_703_Diesel_LCS_422CC_2005-2012_T16_20251008102349.PNG)
1 |
212708 BRACKET More informationQuantity required : 2 |
||||||
|
2 |
270795 - BOULON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/4/6/1/img/113461.jpg)
3 |
GRIP/LEVER DE DOOR OEM PIAGGIO THREE-WHEELER APE TM703 1997 >-261449 More informationQuantity required : 2 |
||||||
|
8 |
569577 COPRICERNIERA More informationQuantity required : 2 |
||||||
|
8 |
569578 - COPRICERNIERA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/8/4/img/111484.jpg)
9 |
SANGLE DE DOOR (L174) OEM PIAGGIO THREE-WHEELER APE POKER, TM 703-212569 More informationQuantity required : 2 |
||||||
|
10 |
567605 PLATE More informationQuantity required : 4 |
||||||
|
11 |
015952-SCREW More informationQuantity required : 8 |
||||||
|
12 |
212711 SPRING D More informationQuantity required : 1 |
||||||
|
12 |
212713 SPRING G More informationQuantity required : 1 |
||||||
|
13 |
212709 LEVER G-D More informationQuantity required : 2 |
||||||
|
14 |
213181 GACHE LEFT More informationQuantity required : 2 |
||||||
|
14 |
213182 GACHE RIGHT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
15 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 6 |
||||||
|
16 |
232419 LOCK RIGHT More informationQuantity required : 1 |
||||||
|
16 |
232420 LOCK LEFT More informationQuantity required : 1 |
||||||
|
17 |
B007714 - TIRANT OUVRE PORTE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
18 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 10 |
||||||
|
19 |
008936 SCREW S00893600 More informationQuantity required : 4 |
||||||
|
20 |
018509-SCREW More informationQuantity required : 6 |
