Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 400 Ape TM 703 Diesel LCS 422CC 2005-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

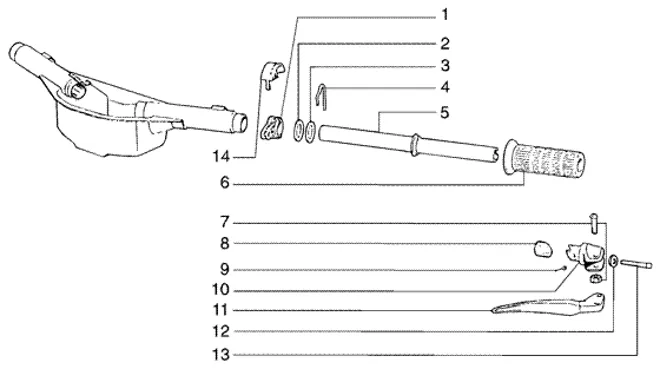

Guidon : T30 GUIDON (GUIDON)
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/332/Ape_TM_703_Diesel_LCS_422CC_2005-2012_T30_20251008102236.PNG)
1 |
228693 LEVETTA COM. CA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/7/4/img/65774.jpg)
2 |
WASHER PLATE (22. 3X29X0. 8) DE HANDLEBAR OEM PIAGGIO THREE-WHEELER APE TM 703-177147 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/7/5/img/65775.jpg)
3 |
WASHER SPRING (22. 3X29X0. 8) DE HANDLEBAR OEM PIAGGIO THREE-WHEELER APE TM 703, VESPA 50 FL2-177148 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/9/2/img/65692.jpg)
4 |
AGRAFE/CLIPS CONTROL DE THROTTLE OEM PIAGGIO THREE-WHEELER APE TM 703 WITH HANDLEBAR-101481 More informationQuantity required : 1 |
||||||
|
5 |
225296 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/4/6/2/img/113462.jpg)
6 |
POIGNEES (PAIRE) OEM PIAGGIO THREE-WHEELER APE TM 703-493955 More informationQuantity required : 1 |
||||||
|
7 |
018517 - VIS More informationQuantity required : 1 |
||||||
|
8 |
177141 COIN More informationQuantity required : 1 |
||||||
|
9 |
177132 SPRING More informationQuantity required : 1 |
||||||
|
10 |
17789109 DOOR LEVER More informationQuantity required : 1 |
||||||
|
11 |
2654624 - LEVIER EMBRAYAYGE More informationQuantity required : 1 |
||||||
|
12 |
016343 WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/6/img/127166.jpg)
13 |
SCREW BTR (5X30) OEM PIAGGIO COMMON A LA RANGE-1A003053 More informationQuantity required : 1 |
||||||
|
14 |
567980 DECALCOMANIE More informationQuantity required : 1 |
