Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 400 Ape TM 703 Diesel LCS 422CC 2005-2012 PIAGGIO VU

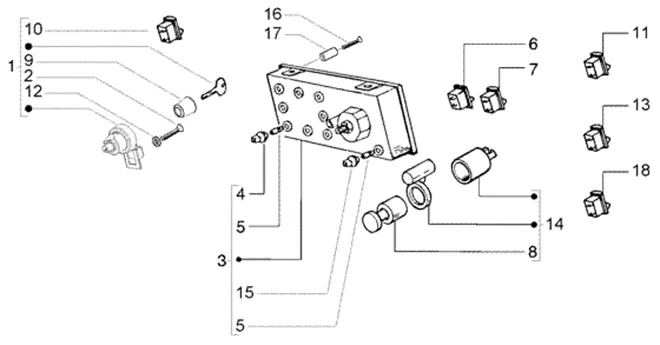

Connexions électriques : T69 TABLEAU DE BORD - COMMUTATEUR A CLE
Tableau de bord - commutateur a cle
Search
216159 - COMMUTAT.CON B

1
P2R reference P2R reference 122847
Maker reference Maker reference 216159

216159 - COMMUTAT.CON B

More information

Quantity required : 1

568194 - COMMUTATEUR

1
P2R reference P2R reference 122231
Maker reference Maker reference 568194

568194 - COMMUTATEUR

More information

Quantity required : 1

VIS

2
P2R reference P2R reference
Maker reference Maker reference 567255

VIS

660719 - GROUPE INSTRUMENT

3
P2R reference P2R reference 122643
Maker reference Maker reference 660719

660719 - GROUPE INSTRUMENT

More information

Quantity required : 1

DOOR AMPOULE OEM PIAGGIO THREE-WHEELER APE 2012 <-214191

4
P2R reference P2R reference 65923
Maker reference Maker reference 214191

DOOR AMPOULE OEM PIAGGIO THREE-WHEELER APE 2012 <-214191

More information

Quantity required : 9

AMPOULE/LAMPE 12V 1, 2W CULOT W2X4. 6D BULB T5 TEMOIN WHITE OEM PIAGGIO COMMON A LA RANGE-164634

5
P2R reference P2R reference 65760
Maker reference Maker reference 164634

AMPOULE/LAMPE 12V 1, 2W CULOT W2X4. 6D BULB T5 TEMOIN WHITE OEM PIAGGIO COMMON A LA RANGE-164634

More information

Quantity required : 10

614594 - INTERRUPTEUR

6
P2R reference P2R reference 117677
Maker reference Maker reference 614594

614594 - INTERRUPTEUR

More information

Quantity required : 1

581372 - INTERRUPTEUR

7
P2R reference P2R reference 116186
Maker reference Maker reference 581372

581372 INTERRUPTEUR

More information

Quantity required : 1

581373 - COMMUTATEUR

7
P2R reference P2R reference 119046
Maker reference Maker reference 581373

581373 SWITCH

More information

Quantity required : 1

565429 - ALLUME CIGARE

8
P2R reference P2R reference 117848
Maker reference Maker reference 565429

565429 ALLUME CIGARE

More information

Quantity required : 1

COSSE OEM PIAGGIO THREE-WHEELER APE COMMON A LA RANGE-071482

9
P2R reference P2R reference 65659
Maker reference Maker reference 0714825

COSSE OEM PIAGGIO THREE-WHEELER APE COMMON A LA RANGE-071482

More information

Quantity required : 2

613606 - INTERRUPTEUR

10
P2R reference P2R reference 118628
Maker reference Maker reference 613606

613606 INTERRUPTEUR

More information

Quantity required : 1

581376 - INTERRUPTEUR FEU ALARME

11
P2R reference P2R reference 119236
Maker reference Maker reference 581376

581376 INTERRUPTEUR LAMP ALARME

More information

Quantity required : 1

WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880

12
P2R reference P2R reference 65366
Maker reference Maker reference 0138805

WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880

More information

Quantity required : 2

581375 - COMMUTATEUR FWU BROUILLARD

13
P2R reference P2R reference 116614
Maker reference Maker reference 581375

581375 SWITCH FWU BROUILLARD

More information

Quantity required : 1

565429 - ALLUME CIGARE

14
P2R reference P2R reference 117848
Maker reference Maker reference 565429

565429 ALLUME CIGARE

More information

Quantity required : 1

217100 - PORTE AMPOULE CPTEUR

15
P2R reference P2R reference 65929
Maker reference Maker reference 217100

217100-DOOR AMPOULE CPTEUR

More information

Quantity required : 1

SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996

16
P2R reference P2R reference 65408
Maker reference Maker reference 0159965

SCREW CRUCIFORME (4X12) OEM PIAGGIO COMMON A LA RANGE-015996

More information

Quantity required : 1

615399 - ENTRETOISE

17
P2R reference P2R reference 111967
Maker reference Maker reference 615399

615399 SPACER

More information

Quantity required : 1
