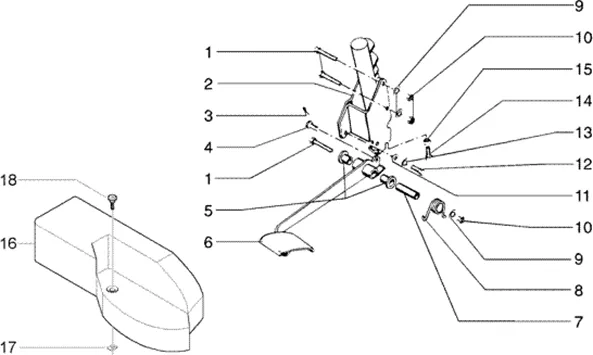

Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 400 Ape TM 703 Diesel LCS 422CC 2005-2012 PIAGGIO VU

Châssis : T51 FIXATION MAÎTRE CYLINDRE ET PEDALE DU FREIN (GUIDON)
Fixation Maître Cylindre Et Pedale Du Frein (Guidon)
Search
SCREW TH (8X55) OEM PIAGGIO COMMON A LA RANGE-030077

1
P2R reference P2R reference 110507
Maker reference Maker reference 0300775

SCREW TH (8X55) OEM PIAGGIO COMMON A LA RANGE-030077

More information

Quantity required : 3

229264 - SUPPORT

2
P2R reference P2R reference 116463
Maker reference Maker reference 229264

229264 BRACKET

More information

Quantity required : 1

GOUPILLE OEM PIAGGIO COMMON A LA RANGE-003208

3
P2R reference P2R reference 63782
Maker reference Maker reference 0032085

GOUPILLE OEM PIAGGIO COMMON A LA RANGE-003208

More information

Quantity required : 1

074451 - PIVOT

4
P2R reference P2R reference 113431
Maker reference Maker reference 0744515

074451 PIVOT

More information

Quantity required : 1

116310 - DOUILLE

5
P2R reference P2R reference 111406
Maker reference Maker reference 116310

116310 BUSH

More information

Quantity required : 2

229267 - PEDALE DE FREIN

6
P2R reference P2R reference 119442
Maker reference Maker reference 229267

229267 PEDAL OF BRAKE

More information

Quantity required : 1

229271 - ENTRETOISE

7
P2R reference P2R reference 113820
Maker reference Maker reference 229271

229271 SPACER

More information

Quantity required : 1

229272 - RESSORT

8
P2R reference P2R reference 111540
Maker reference Maker reference 229272

229272 SPRING

More information

Quantity required : 1

WASHER SPRING (8X17) OEM PIAGGIO COMMON A LA RANGE-006978

9
P2R reference P2R reference 63843
Maker reference Maker reference 0069785

WASHER SPRING (8X17) OEM PIAGGIO COMMON A LA RANGE-006978

More information

Quantity required : 3

NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108

10
P2R reference P2R reference 65463
Maker reference Maker reference 0201085

NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108

More information

Quantity required : 3

WASHER PLATE (8. 4X18X2) OEM PIAGGIO COMMON A LA RANGE-003038

11
P2R reference P2R reference 63773
Maker reference Maker reference 0030385

WASHER PLATE (8. 4X18X2) OEM PIAGGIO COMMON A LA RANGE-003038

More information

Quantity required : 3

SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119

12
P2R reference P2R reference 65646
Maker reference Maker reference 0311195

SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119

More information

Quantity required : 3

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

13
P2R reference P2R reference 65418
Maker reference Maker reference 0164085

WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408

More information

Quantity required : 3

SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091

14
P2R reference P2R reference 65642
Maker reference Maker reference 0310915

SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091

More information

Quantity required : 2

NUT M6 OEM PIAGGIO COMMON A LA RANGE-020206

15
P2R reference P2R reference 65474
Maker reference Maker reference 0202065

NUT M6 OEM PIAGGIO COMMON A LA RANGE-020206

More information

Quantity required : 1

611601 - COP.POMPA E PE

16
P2R reference P2R reference 114784
Maker reference Maker reference 611601

611601 COP. PUMP E PE

More information

Quantity required : 1

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

17
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 4

SCREW - (6x20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830

18
P2R reference P2R reference 66043
Maker reference Maker reference 259830
Replaced by référence Replaced by référence 73367

SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830

More information

Quantity required : 4
