Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 400 Ape TM 703 Diesel LCS 422CC 2005-2012 PIAGGIO VU

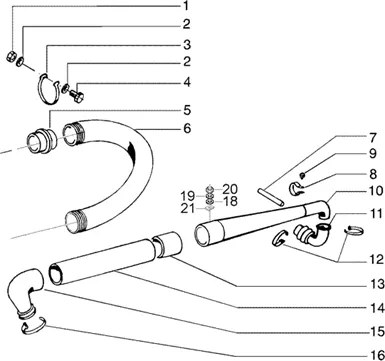

Châssis : T25 CANALISATION ASPIRATION AIR
Canalisation Aspiration Air
Search
NUT (M4) OEM PIAGGIO COMMON A LA RANGE-020104

1
P2R reference P2R reference 65459
Maker reference Maker reference 0201045

NUT (M4) OEM PIAGGIO COMMON A LA RANGE-020104

More information

Quantity required : 2

WASHER PLATE (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-003054

2
P2R reference P2R reference 63775
Maker reference Maker reference 0030545

WASHER PLATE (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-003054

More information

Quantity required : 4

216352 - COLLIER

3
P2R reference P2R reference 110516
Maker reference Maker reference 216352

216352 CLAMP

More information

Quantity required : 2

SCREW TH (4X45) OEM PIAGGIO COMMON A LA RANGE-658279

4
P2R reference P2R reference 110312
Maker reference Maker reference 031040

SCREW TH (4X45) OEM PIAGGIO COMMON A LA RANGE-658279

More information

Quantity required : 2

414425 - TUYAU

5
P2R reference P2R reference 114970
Maker reference Maker reference 414425

414425 HOSE

More information

Quantity required : 1

257942 - TUYAU

6
P2R reference P2R reference 119255
Maker reference Maker reference 257942

257942 - TUYAU

More information

Quantity required : 1

CM002205 - TUBE DEPRESSIONE

7
P2R reference P2R reference 113415
Maker reference Maker reference CM002205

CM002205 TUBE DEPRESSIONE

More information

Quantity required : 1

CLAMP GUIDE CABLE OEM PIAGGIO X9 500, MP3 400-500/GILERA FUOCO, NEXUS 250-500-253293

8
P2R reference P2R reference 66006
Maker reference Maker reference 253293

CLAMP GUIDE CABLE OEM PIAGGIO X9 500, MP3 400-500/GILERA FUOCO, NEXUS 250-500-253293

More information

Quantity required : 2

SCREW PARKER (4. 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-008455

9
P2R reference P2R reference 63855
Maker reference Maker reference 0084555

SCREW PARKER (4. 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-008455

More information

Quantity required : 1

613169 - TUYAU

10
P2R reference P2R reference 115530
Maker reference Maker reference 613169

613169 HOSE

More information

Quantity required : 1

S568608 - TUYAU

11
P2R reference P2R reference 113233
Maker reference Maker reference S568608

S568608 - TUYAU

More information

Quantity required : 1

CLAMP SERRAGE TUBE 40-60 OEM PIAGGIO COMMON A LA RANGE-614188

12
P2R reference P2R reference 111556
Maker reference Maker reference 614188

CLAMP SERRAGE TUBE 40-60 OEM PIAGGIO COMMON A LA RANGE-614188

More information

Quantity required : 2

232592 - MANCHON

13
P2R reference P2R reference 115199
Maker reference Maker reference 232592

232592 - MANCHON

More information

Quantity required : 1

613168 - TUYAU

14
P2R reference P2R reference 114258
Maker reference Maker reference 613168

613168 HOSE

More information

Quantity required : 1

613161 - RACCORD

15
P2R reference P2R reference 114971
Maker reference Maker reference 613161

613161 FITTING

More information

Quantity required : 1

CLAMP DE AIR FILTER OEM PIAGGIO CARGO 2004 > 2017-615406

16
P2R reference P2R reference 112271
Maker reference Maker reference 615406

CLAMP DE AIR FILTER OEM PIAGGIO CARGO 2004 > 2017-615406

More information

Quantity required : 1

613196 - SUPPORT

17
P2R reference P2R reference 114287
Maker reference Maker reference 613196

613196 BRACKET

More information

Quantity required : 1

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

18
P2R reference P2R reference 63777
Maker reference Maker reference 0030565

WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056

More information

Quantity required : 1

WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533

19
P2R reference P2R reference 65345
Maker reference Maker reference 0125335

WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533

More information

Quantity required : 1

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

20
P2R reference P2R reference 65461
Maker reference Maker reference 0201065

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

More information

Quantity required : 1

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

21
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 1

615296 - TAMPON

22
P2R reference P2R reference 117224
Maker reference Maker reference 615296

615296 BUFFER

More information

Quantity required : 1
