Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 400 Ape TM 703 Diesel LCS 422CC 2005-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

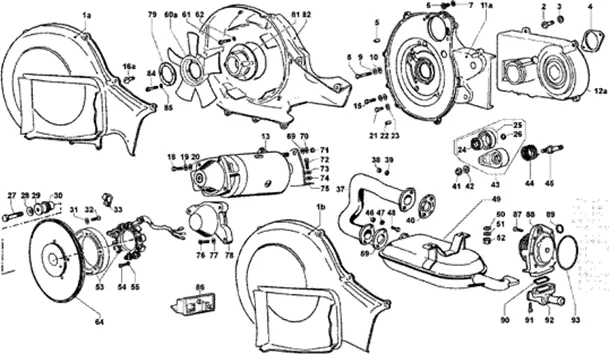

Moteur : T5 COIFFE REFROIDISSEMENT - DEMARREUR - TUYAU DECHARGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/332/Ape_TM_703_Diesel_LCS_422CC_2005-2012_T5_20251008102113.PNG)
1 |
L2569704 ELEMENT DE TRANSPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/0/img/65440.jpg)
2 |
SCREW BTR (6X25) OEM PIAGGIO COMMON A LA RANGE-018553 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/8/img/63838.jpg)
3 |
WASHER SPRING (6, 4X11X0, 5) OEM PIAGGIO COMMON A LA RANGE-006966 More informationQuantity required : 5 |
||||||
|
4 |
224699 GASKET More informationQuantity required : 1 |
||||||
|
5 |
168409 GRANO DI RIFER More informationQuantity required : 1 |
||||||
|
6 |
SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111 More informationQuantity required : 2 |
||||||
|
6 |
SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111 More informationQuantity required : 2 |
||||||
|
7 |
WASHER SPRING (6, 4X11X0, 5) OEM PIAGGIO COMMON A LA RANGE-006966 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/4/img/65444.jpg)
8 |
SCREW FLANGE BTR (8X60) OEM PIAGGIO COMMON A LA RANGE-018583 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
9 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
10 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 3 |
||||||
|
11 |
SUPPORT |
||||||
|
12 |
COURROIE |
||||||
|
13 |
292083 ENGINE STARTER MOTOR ATD-T1 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/7/1/img/67371.jpg)
15 |
SCREW BTR (8X35) MOUNTING BRAKE CALIPER OEM PIAGGIO COMMON A LA RANGE-598921 More informationQuantity required : 1 |
||||||
|
16 |
015760-SCREW S01577400 More informationQuantity required : 9 |
||||||
|
18 |
030074-BOLT S03007400 More informationQuantity required : 3 |
||||||
|
19 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 3 |
||||||
|
20 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 3 |
||||||
|
21 |
015760-SCREW S01577400 More informationQuantity required : 2 |
||||||
|
22 |
168409 GRANO DI RIFER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/1/img/63841.jpg)
23 |
WASHER ELASTIC (6. 4X12X0. 5) OEM PIAGGIO COMMON A LA RANGE-006976 More informationQuantity required : 2 |
||||||
|
24 |
ASTUCCIO A RUL |
||||||
|
25 |
GALET DE TENDEUR DE BELT OEM PIAGGIO THREE-WHEELER APE CALESSINO 2007 > 2012, CLASSIC 2006 > 2013, TM 703 DIESEL 2005 > 2012-830717 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/2/img/63812.jpg)
26 |
CLIPS/CIRCLIPS (10. 9) OEM PIAGGIO COMMUNUN A LA RANGE-006412 More informationQuantity required : 1 |
||||||
|
27 |
232187 - VIS More informationQuantity required : 1 |
||||||
|
28 |
L5715097 - RESSORT More informationQuantity required : 1 |
||||||
|
29 |
246013 WASHER More informationQuantity required : 1 |
||||||
|
30 |
223492 - CONO More informationQuantity required : 1 |
||||||
|
31 |
WASHER ELASTIC (6. 4X12X0. 5) OEM PIAGGIO COMMON A LA RANGE-006976 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/8/img/65638.jpg)
32 |
SCREW TH (6X15) OEM PIAGGIO COMMON A LA RANGE-031087 More informationQuantity required : 5 |
||||||
|
33 |
826676 MANCETTA More informationQuantity required : 1 |
||||||
|
37 |
L9543113 HOSE ECHAPP. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/5/8/img/63758.jpg)
38 |
NUT M6 OEM PIAGGIO COMMON A LA RANGE-001564 More informationQuantity required : 2 |
||||||
|
39 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/9/3/9/img/113939.jpg)
40 |
430690 GASKET EXHAUST (CYLINDER) ATD-1T More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/2/5/img/66225.jpg)
41 |
NUT DE VARIATOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-289519 More informationQuantity required : 1 |
||||||
|
42 |
L7701212 WASHER More informationQuantity required : 1 |
||||||
|
43 |
L4110034 - PLAQUE More informationQuantity required : 1 |
||||||
|
44 |
L5801609 - RESSORT More informationQuantity required : 1 |
||||||
|
45 |
L6231234 PIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
46 |
NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108 More informationQuantity required : 2 |
||||||
|
47 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 4 |
||||||
|
48 |
ARAND.PLANA MECANIZ. D12 DIN125 ZnB |
||||||
|
49 |
ECHAPPEMENT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/4/img/63764.jpg)
50 |
WASHER PLATE (8. 5X20X2) OEM PIAGGIO COMMON A LA RANGE-002383 More informationQuantity required : 2 |
||||||
|
51 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 2 |
||||||
|
52 |
NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108 More informationQuantity required : 2 |
||||||
|
53 |
L1157344 - VOLANT MAGNETIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/9/img/65399.jpg)
54 |
SCREW CRUCIFORME (5X21) OEM PIAGGIO COMMON A LA RANGE-015856 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
55 |
WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/9/3/4/img/113934.jpg)
59 |
430689 GASKET EXHAUST (EXHAUST) ADT-1T More informationQuantity required : 1 |
||||||
|
60 |
L9718299 - VOLANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/7/img/68497.jpg)
61 |
SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-709674 More informationQuantity required : 5 |
||||||
|
62 |
WASHER ELASTIC (6. 4X12X0. 5) OEM PIAGGIO COMMON A LA RANGE-006976 More informationQuantity required : 5 |
||||||
|
64 |
L9881376 - VOLANT MAGNETIQUE More informationQuantity required : 1 |
||||||
|
69 |
013755-WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
70 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
71 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
72 |
SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091 More informationQuantity required : 2 |
||||||
|
73 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/3/img/63803.jpg)
74 |
WASHER PLATE (6. 4X14X1. 5) OEM PIAGGIO COMMON A LA RANGE-006125 More informationQuantity required : 2 |
||||||
|
75 |
292092 BRACKET More informationQuantity required : 1 |
||||||
|
76 |
015760-SCREW S01577400 More informationQuantity required : 3 |
||||||
|
77 |
WASHER SPRING (6, 4X11X0, 5) OEM PIAGGIO COMMON A LA RANGE-006966 More informationQuantity required : 3 |
||||||
|
78 |
830091 PROTECTOR More informationQuantity required : 1 |
||||||
|
79 |
832737 RING More informationQuantity required : 1 |
||||||
|
81 |
832736 BRACKET More informationQuantity required : 1 |
||||||
|
82 |
L2569699 ELEMENT CONV. More informationQuantity required : 1 |
||||||
|
84 |
SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-709674 More informationQuantity required : 4 |
||||||
|
85 |
WASHER ELASTIC (6. 4X12X0. 5) OEM PIAGGIO COMMON A LA RANGE-006976 More informationQuantity required : 4 |
||||||
|
86 |
L2193202 RELAIS PRECHAUFFAGE More informationQuantity required : 1 |
||||||
|
87 |
411213 SCREW More informationQuantity required : 4 |
||||||
|
88 |
L6584480 - CORPS DE ROTOR More informationQuantity required : 1 |
||||||
|
89 |
L4775603 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/7/2/5/img/110725.jpg)
90 |
L4775596 - O-RING More informationQuantity required : 1 |
||||||
|
91 |
411213 SCREW More informationQuantity required : 2 |
||||||
|
92 |
RACCORD |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/3/0/0/img/111300.jpg)
93 |
L4775595 - JOINT O-RING More informationQuantity required : 1 |
