Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 400 Ape TM 703 Diesel LCS 422CC 2005-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

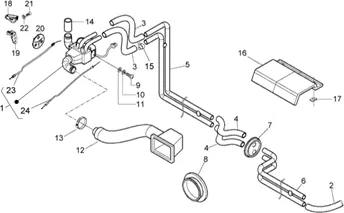

Châssis : T26 RECHAUFFEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/332/Ape_TM_703_Diesel_LCS_422CC_2005-2012_T26_20251008102432.PNG)
1 |
B007614 GR. CHAUFFAGE More informationQuantity required : 1 |
||||||
|
2 |
613204 HOSE More informationQuantity required : 1 |
||||||
|
3 |
613193 HOSE CARB. More informationQuantity required : 2 |
||||||
|
4 |
614621 HOSE More informationQuantity required : 2 |
||||||
|
5 |
614526 HOSE More informationQuantity required : 1 |
||||||
|
6 |
645797 HOSE More informationQuantity required : 1 |
||||||
|
7 |
613904 COVER More informationQuantity required : 1 |
||||||
|
8 |
614614 COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/8/img/65638.jpg)
9 |
SCREW TH (6X15) OEM PIAGGIO COMMON A LA RANGE-031087 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
10 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
11 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 2 |
||||||
|
12 |
614932 CONVOGL. ARIA C More informationQuantity required : 1 |
||||||
|
13 |
216353 CLAMP More informationQuantity required : 1 |
||||||
|
14 |
614622 HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/7/img/72867.jpg)
15 |
CLAMP SERRAGE HOSE (22. 6) OEM PIAGGIO COMMON A LA RANGE-CM001905 More informationQuantity required : 14 |
||||||
|
16 |
614730 PROTECTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
17 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
|
18 |
214550 SBRINATORE More informationQuantity required : 1 |
||||||
|
19 |
216640 - CONVOYEUR More informationQuantity required : 1 |
||||||
|
20 |
214163 ETRANGLEUR AIR CHAUD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/0/img/63850.jpg)
21 |
SCREW PARKER (3. 5X13) CRUCIFORME DE FAIRING OEM PIAGGIO COMMON A LA RANGE-008372 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
22 |
WASHER PLATE (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-003054 More informationQuantity required : 2 |
||||||
|
23 |
658391 CABLE More informationQuantity required : 1 |
||||||
|
24 |
615612 CABLE More informationQuantity required : 1 |
