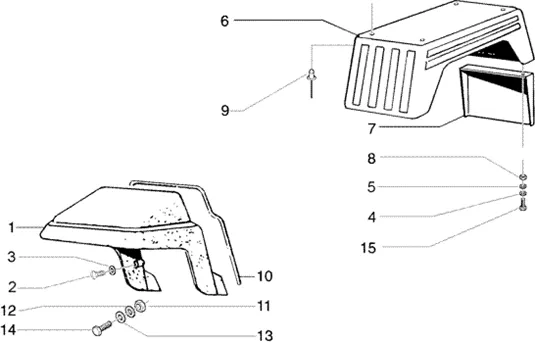

Vehicle Exploded View - PIAGGIO VU APE TM DIESEL 400 Ape TM 703 Diesel LCS 422CC 2005-2012 PIAGGIO VU

Châssis : T18 GARDEBOUES
Gardeboues
Search
565799 - GARDE BOUE TM 703

1
P2R reference P2R reference 116756
Maker reference Maker reference 565799

565799 MUDGUARD TM 703 *

More information

Quantity required : 1

SCREW PARKER CRUCIFORME (3, 5X9, 5) OEM PIAGGIO COMMON A LA RANGE-008432

2
P2R reference P2R reference 63854
Maker reference Maker reference 0084325

SCREW PARKER CRUCIFORME (3, 5X9, 5) OEM PIAGGIO COMMON A LA RANGE-008432

More information

Quantity required : 6

WASHER PLATE (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-003054

3
P2R reference P2R reference 63775
Maker reference Maker reference 0030545

WASHER PLATE (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-003054

More information

Quantity required : 6

003055 - RONDELLE

4
P2R reference P2R reference 63776
Maker reference Maker reference 0030555

003055-WASHER

More information

Quantity required : 8

WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405

5
P2R reference P2R reference 65415
Maker reference Maker reference 0164055

WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405

More information

Quantity required : 4

565798 - GARDE BOUE AR

6
P2R reference P2R reference 116271
Maker reference Maker reference 565798

565798 MUDGUARD AR

More information

Quantity required : 2

MUD FLAP REAR OEM THREE-WHEELER APE TM 703-189137

7
P2R reference P2R reference 115723
Maker reference Maker reference 189137

MUD FLAP REAR OEM THREE-WHEELER APE TM 703-189137

More information

Quantity required : 2

NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105

8
P2R reference P2R reference 65460
Maker reference Maker reference 0201055

NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105

More information

Quantity required : 4

244474 - RIVET

9
P2R reference P2R reference 110314
Maker reference Maker reference 244474

244474 RIVET

More information

Quantity required : 8

GASKET OF FRONT MUDGUARD OEM PIAGGIO THREE-WHEELER APE TM703-216170

10
P2R reference P2R reference 114002
Maker reference Maker reference 216170

GASKET OF FRONT MUDGUARD OEM PIAGGIO THREE-WHEELER APE TM703-216170

More information

Quantity required : 1

020006 - ECROU

11
P2R reference P2R reference 65453
Maker reference Maker reference 0200065

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020006

More information

Quantity required : 4

WASHER SPRING (6, 4X16X1) OEM PIAGGIO COMMON A LA RANGE-078307

12
P2R reference P2R reference 65664
Maker reference Maker reference 0783075

WASHER SPRING (6, 4X16X1) OEM PIAGGIO COMMON A LA RANGE-078307

More information

Quantity required : 4

WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880

13
P2R reference P2R reference 65366
Maker reference Maker reference 0138805

WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880

More information

Quantity required : 4

SCREW TH (6X16) OEM PIAGGIO COMMON A LA RANGE-031088

14
P2R reference P2R reference 65639
Maker reference Maker reference 0310885

SCREW TH (6X16) OEM PIAGGIO COMMON A LA RANGE-031088

More information

Quantity required : 4

031059 - BOULON S03105900

15
P2R reference P2R reference 65635
Maker reference Maker reference 0310595

031059 - BOULON S03105900

More information

Quantity required : 4
