Vehicle Exploded View - VESPA VESPA GTS 125 4T E3 2007-2012 VESPA

Moteur : 01.39 CARBURATEUR COMPLET - RACCORD D'ADMISSION

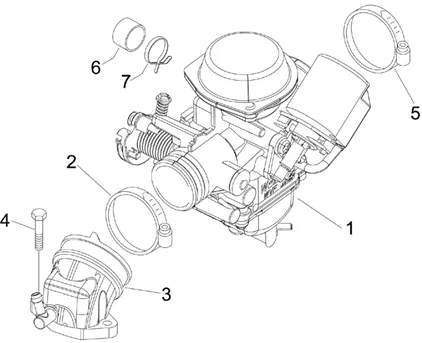

Carburateur complet - raccord d'admission
Search
CARBURETTOR MAXI SCOOTER OEM PIAGGIO 125 X8, X9-EVOLUTION, X-EVO, VESPA GT, VESPA GTS (COMPLETE CVEK-N305F)-8739105

1
P2R reference P2R reference 93178
Maker reference Maker reference 8739105

CARBURETTOR MAXI SCOOTER OEM PIAGGIO 125 X8, X9-EVOLUTION, X-EVO, VESPA GT, VESPA GTS (COMPLETE CVEK-N305F)-8739105

More information

Quantity required : 1

CLAMP SERRAGE TUBE 32-50 OEM PIAGGIO COMMON A LA RANGE-1A000833

2
P2R reference P2R reference 75332
Maker reference Maker reference 1A000833

CLAMP SERRAGE TUBE 32-50 OEM PIAGGIO COMMON A LA RANGE-1A000833

More information

Quantity required : 1

FITTING D'ADMISSION OEM PIAGGIO 125 MP3 2007 >, X-EVO 2007 >, VESPA GTS 2007 >/APRILIA 125-250 ATLANTIC 2006 >, SPORT-CITY 2006 >, SCARABEO 2006 >-B016578

3
P2R reference P2R reference 72711
Maker reference Maker reference B016578

FITTING D'ADMISSION OEM PIAGGIO 125 MP3 2007 >, X-EVO 2007 >, VESPA GTS 2007 >/APRILIA 125-250 ATLANTIC 2006 >, SPORT-CITY 2006 >, SCARABEO 2006 >-B016578

More information

Quantity required : 1

SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352

4
P2R reference P2R reference 109062
Maker reference Maker reference 1A000352

SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352

More information

Quantity required : 3

SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352

4
P2R reference P2R reference 109062
Maker reference Maker reference 830487

SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352

More information

Quantity required : 3

CLAMP 58-62. 5 OEM PIAGGIO COMMON A LA RANGE-260918

5
P2R reference P2R reference 66046
Maker reference Maker reference 260918

CLAMP 58-62. 5 OEM PIAGGIO COMMON A LA RANGE-260918

More information

Quantity required : 1

CAPUCHON/PRISE D'AIR OF CARBURETTOR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250 CC-841695

6
P2R reference P2R reference 69200
Maker reference Maker reference 841695

CAPUCHON/PRISE D'AIR OF CARBURETTOR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250 CC-841695

More information

Quantity required : 1

CLAMP (15MM) SERRAGE HOSE OEM PIAGGIO COMMON A LA RANGE-CM002916

7
P2R reference P2R reference 72897
Maker reference Maker reference CM002916

CLAMP (15MM) SERRAGE HOSE OEM PIAGGIO COMMON A LA RANGE-CM002916

More information

Quantity required : 1
