Vehicle Exploded View - VESPA VESPA GTS 125 4T E3 2007-2012 VESPA

Guidon-direction : 03.02 GROUPE INSTRUMENTS - CRUSCOTTO

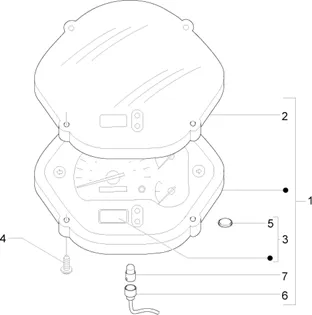

Groupe instruments - Cruscotto
Search
SPEEDOMETER "PIAGGIO GENUINE PART" 125 VESPA GT 1998>2005, VESPA GTS 2005> -58157R-

1
P2R reference P2R reference 81601
Maker reference Maker reference 58157R

SPEEDOMETER "PIAGGIO GENUINE PART" 125 VESPA GT 1998>2005, VESPA GTS 2005> -58157R-

More information

Quantity required : 1

VITRE DE INSTRUMENT CLUSTER ECIE 4 TROUS OEM PIAGGIO 50-125 LIBERTY 2005 >, VESPA LX 2005 >, 125 VESPA GTS 2007 >-639414

2
P2R reference P2R reference 67831
Maker reference Maker reference 639414

VITRE DE INSTRUMENT CLUSTER ECIE 4 TROUS OEM PIAGGIO 50-125 LIBERTY 2005 >, VESPA LX 2005 >, 125 VESPA GTS 2007 >-639414

More information

Quantity required : 1

HORLOGE/MONTRE OEM PIAGGIO 50-125 VESPA LX, VESPA-S, LIBERTY, 125-250-300 VESPA GTS, X7, THREE-WHEELER APE 50/APRILIA 125-250-300-400-500 ATLANTIC, 125 SCARABEO/GILERA 50 STAKER-AP8212406

3
P2R reference P2R reference 72187
Maker reference Maker reference AP8212406

HORLOGE/MONTRE OEM PIAGGIO 50-125 VESPA LX, VESPA-S, LIBERTY, 125-250-300 VESPA GTS, X7, THREE-WHEELER APE 50/APRILIA 125-250-300-400-500 ATLANTIC, 125 SCARABEO/GILERA 50 STAKER-AP8212406

More information

Quantity required : 1

SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793

4
P2R reference P2R reference 66092
Maker reference Maker reference 270793

SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793

More information

Quantity required : 4

PILE HORLOGE OEM PIAGGIO 50-125 VESPA LX, VESPA-S, FLY, LIBERTY, 125-250-300 VESPA GTS, 125-250 X7, 50 TYPHOON 1998 > 2004/GILERA 50 STALKER-498342

5
P2R reference P2R reference 66970
Maker reference Maker reference 498342

PILE HORLOGE OEM PIAGGIO 50-125 VESPA LX, VESPA-S, FLY, LIBERTY, 125-250-300 VESPA GTS, 125-250 X7, 50 TYPHOON 1998 > 2004/GILERA 50 STALKER-498342

More information

Quantity required : 1

AMPOULE/LAMPE 12V 1, 2W CULOT W2X4. 6D BULB T5 TEMOIN WHITE OEM PIAGGIO COMMON A LA RANGE-164634

6
P2R reference P2R reference 65760
Maker reference Maker reference 164634

AMPOULE/LAMPE 12V 1, 2W CULOT W2X4. 6D BULB T5 TEMOIN WHITE OEM PIAGGIO COMMON A LA RANGE-164634

More information

Quantity required : 6

AMPOULE/LAMPE WITH BRACKET (12V-1, 2 W) OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-253366

7
P2R reference P2R reference 66007
Maker reference Maker reference 253366

AMPOULE/LAMPE WITH BRACKET (12V-1, 2 W) OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-253366

More information

Quantity required : 6
