Vehicle Exploded View - VESPA VESPA GTS 125 4T E3 2007-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

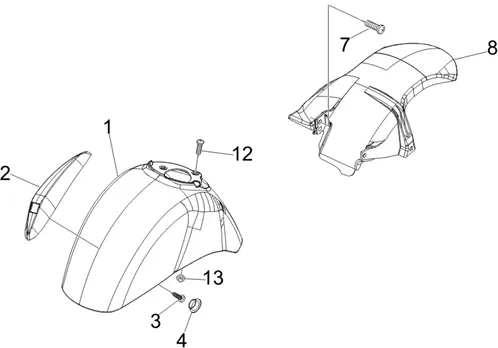

Chassis-parties plastiques-carrosseries : 02.33 LOGEMENT ROUE - GARDE BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/958/Vespa_GTS_125_4T_E3_2007-2012_02.33.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/1/8/4/img/87184.jpg)
1 |
FRONT MUDGUARD OEM PIAGGIO 125-250-300 VESPA GTS 2022 < UNPAINTED READY TO PAINT-651029 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/4/4/9/img/140449.jpg)
1 |
FRONT MUDGUARD OEM PIAGGIO 125-250-300 VESPA GTS 2022 < GLOSS BLACK 94-6510295090 More informationQuantity required : 1 |
||||||
1 |
FRONT MUDGUARD OEM PIAGGIO 125-250-300 VESPA GTS 2022 < BLUE 222/A-65102900DE More informationQuantity required : 1 |
||||||
|
1 |
65102900EU - GARDE BOUE More informationQuantity required : 1 |
||||||
|
1 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" 125-250 VESPA GTS GREY 738/A -65102900F2- More informationQuantity required : 1 |
||||||
|
1 |
65102900GP - GARDE BOUE AVT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/2/1/3/img/87213.jpg)
1 |
FRONT MUDGUARD OEM PIAGGIO 125-250-300 VESPA GTS 2022 < RED 894-65102900R7 More informationQuantity required : 1 |
||||||
|
1 |
65102900EP-FRONT MUDGUARD 125 VESPA GTS GREY 780/A More informationQuantity required : 1 |
||||||
|
1 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS BRONZE 579 -65102900GV- More informationQuantity required : 1 |
||||||
|
1 |
65102900M4-MUDGUARD More informationQuantity required : 1 |
||||||
|
1 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS 112/A -65102900M5- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/2/1/6/img/87216.jpg)
1 |
FRONT MUDGUARD OEM PIAGGIO 125-250-300 VESPA GTS 2022 < BLACK COSMOS 98/A-65102900XN2 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/0/0/img/67400.jpg)
2 |
CRETE DE GUARD-MUD FRONT (L186) CHROME OEM PIAGGIO 125-250-300 VESPA GTS, 50-125 VESPA-S-5996776 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/7/img/65387.jpg)
3 |
SCREW AUTOTARAUDEUSE (2, 9X9, 5) CRUCIFORME OEM PIAGGIO COMMON A TOUTE LA RANGE-015727 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/1/7/2/img/75172.jpg)
4 |
CAPSULE OF FITTING KIT FAIRING OEM PIAGGIO COMMON A LA RANGE-192598 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
7 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 1 |
||||||
|
8 |
1B005489-GUARD-MUD AR. More informationQuantity required : 1 |
||||||
|
12 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/0/9/6/img/149096.jpg)
13 |
NUT FLANGE (M6) OEM PIAGGIO COMMON A LA RANGE-241936 More informationQuantity required : 3 |
