Vehicle Exploded View - VESPA VESPA GTS 125 4T E3 2007-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

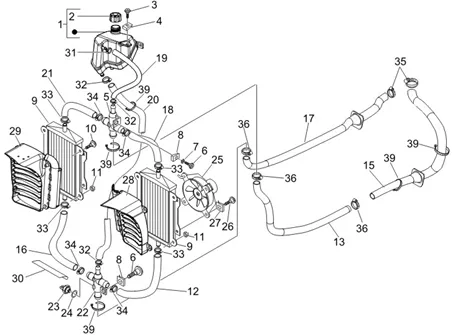

Chassis-parties plastiques-carrosseries : 02.55 INSTALATION DE REFOIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/958/Vespa_GTS_125_4T_E3_2007-2012_02.55.PNG)
1 |
COOLANT TANK "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS -657110 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/4/3/img/67743.jpg)
2 |
CAP VASE EXPANSION OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER-623673 More informationQuantity required : 1 |
|||||||||
|
3 |
257404-SCREW More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
4 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
|||||||||
|
5 |
577195-FITTING More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
6 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
7 |
WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047 More informationQuantity required : 1 |
|||||||||
|
8 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/1/3/0/img/81130.jpg)
9 |
RADIATOR OEM PIAGGIO 125-250-300 VESPA GTS 2009 >-577183 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
10 |
SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/0/9/6/img/149096.jpg)
11 |
NUT FLANGE (M6) OEM PIAGGIO COMMON A LA RANGE-241936 More informationQuantity required : 6 |
|||||||||
|
12 |
57313R-HOSE More informationQuantity required : 1 |
|||||||||
|
13 |
57333R-HOSE More informationQuantity required : 1 |
|||||||||
|
15 |
653501-HOSE More informationQuantity required : 1 |
|||||||||
|
16 |
577201-HOSE More informationQuantity required : 1 |
|||||||||
|
17 |
577205 - TUYAU More informationQuantity required : 1 |
|||||||||
|
18 |
577384-HOSE More informationQuantity required : 1 |
|||||||||
|
19 |
577433-HOSE More informationQuantity required : 1 |
|||||||||
|
20 |
577436 - TUYAU More informationQuantity required : 1 |
|||||||||
|
21 |
623013-HOSE More informationQuantity required : 1 |
|||||||||
|
22 |
577196 - RACCORD More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/1/0/4/img/82104.jpg)
23 |
SENSOR OF TEMPERATURE OEM PIAGGIO 125 GT, GTS 2012 <-584676 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/8/img/65768.jpg)
24 |
GASKET CUIVRE SONDE DE TEMPERATURE COOLING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-168077 More informationQuantity required : 1 |
|||||||||
|
25 |
VENTILATEUR OEM PIAGGIO VESPA 125-250 GTS, GTV-584669 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
26 |
SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836 More informationQuantity required : 3 |
|||||||||
|
27 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/1/3/2/img/81132.jpg)
28 |
PRISE AIR RADIATOR LEFT OEM PIAGGIO 125-250-300 VESPA GTS-577187 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/1/3/1/img/81131.jpg)
29 |
PRISE AIR RADIATOR RIGHT OEM PIAGGIO 125-250-300 VESPA GTS 2012 <-577184 More informationQuantity required : 1 |
|||||||||
|
30 |
580160 - DISPOSITIF More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/5/img/72865.jpg)
31 |
CLAMP (16. 2MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001903 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
32 |
CLAMP HOSE (19. 8MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001904 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/7/img/72867.jpg)
33 |
CLAMP SERRAGE HOSE (22. 6) OEM PIAGGIO COMMON A LA RANGE-CM001905 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/8/img/72868.jpg)
34 |
CLAMP HOSE COOLING OU AIR FILTER (25. 6MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001907 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/9/img/72869.jpg)
35 |
CLAMP HOSE COOLING (30. 8 MM) OEM PIAGGIO COMMON A LA RANGE-CM001908 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/6/img/72876.jpg)
36 |
CLAMP HOSE COOLING (28. 6 MM) OEM PIAGGIO COMMON A LA RANGE-CM001915 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
39 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 5 |
|||||||||
