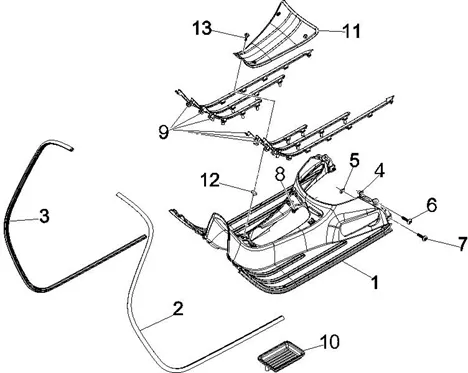

Chassis-parties plastiques-carrosseries : 02.31 PROTECTION CENTRALE - REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/958/Vespa_GTS_125_4T_E3_2007-2012_02.31.PNG)
1 |
STEP FOOT/PLANCHER OEM PIAGGIO 125-300 GTS VESPA 2022 < GLOSS BLACK 94-1B00695300090 More informationQuantity required : 1 |
|||||||||
|
1 |
65663700R7 - MARCHE PIEDS More informationQuantity required : 1 |
|||||||||
|
1 |
1B0069534 - FOOTREST More informationQuantity required : 1 |
|||||||||
|
1 |
65663700DE - MARCHE PIEDS More informationQuantity required : 1 |
|||||||||
|
1 |
65663700EP - MARCHE PIEDS More informationQuantity required : 1 |
|||||||||
|
1 |
65663700EU - TAPIS CENTRAL More informationQuantity required : 1 |
|||||||||
|
1 |
65663700F2-STEP FEET More informationQuantity required : 1 |
|||||||||
|
1 |
65663700GP-STEP FEET More informationQuantity required : 1 |
|||||||||
|
1 |
65663700GV - MARCHE PIEDS More informationQuantity required : 1 |
|||||||||
|
1 |
65663700M4 - TAPIS CENTRAL More informationQuantity required : 1 |
|||||||||
|
1 |
65663700M5 - MARCHE PIEDS More informationQuantity required : 1 |
|||||||||
|
1 |
STEP FOOT/PLANCHER OEM PIAGGIO 125-300 GTS VESPA 2022 < RED 894-1B006953000R7 More informationQuantity required : 1 |
|||||||||
|
1 |
1B006953000XN2-FOOTREST More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/1/2/7/img/81127.jpg)
2 |
BORDURE/JONC DE LEG SHIELD FRONT LEFT CHROME OEM PIAGGIO 125-250-300 VESPA GTS 2009 > 2018-577180 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/1/2/8/img/81128.jpg)
3 |
BORDURE/JONC DE LEG SHIELD FRONT RIGHT CHROME OEM PIAGGIO 125-250-300 VESPA GTS 2009 > 2018-577181 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/1/9/img/109019.jpg)
4 |
AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716 More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
5 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
6 |
SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249 More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
7 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
8 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/0/8/9/8/img/200898.jpg)
9 |
KIT PROFILS STEP FOOT OEM PIAGGIO 125-300 GTS VESPA 2022 >-1B0106310000C More informationQuantity required : 1 |
|||||||||
|
9 |
KIT PROFILS STEP FOOT OEM PIAGGIO 125-300 GTS VESPA 2022 >-1B0106310000C More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/0/7/4/img/140074.jpg)
10 |
CUVE DE BATTERY OEM PIAGGIO 300 GTS 2008 >-1B003942 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/1/2/9/img/81129.jpg)
11 |
COVER DE BATTERY OEM PIAGGIO 125-250-300 VESPA GTS 2009 >-577182 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
12 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
13 |
SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349 More informationQuantity required : 4 |
|||||||||
