Vehicle Exploded View - VESPA VESPA GTS 125 4T E3 2007-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

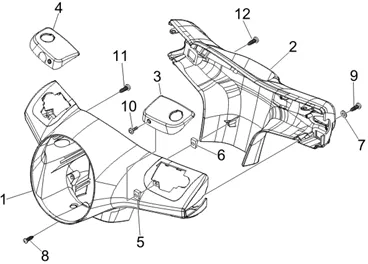

Guidon-direction : 03.01 COUVERTURES GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/958/Vespa_GTS_125_4T_E3_2007-2012_03.01.PNG)
1 |
1B00118500090-COVER STEERING BLACK 94 * More informationQuantity required : 1 |
|||||||||
|
1 |
1B001185000DE-COVER STEERING More informationQuantity required : 1 |
|||||||||
|
1 |
1B001185000EU - CACHE DIRECTION More informationQuantity required : 1 |
|||||||||
|
1 |
1B001185000F2 - CACHE DIRECTION More informationQuantity required : 1 |
|||||||||
|
1 |
65268100GV - CACHE DIRECTION More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/3/6/9/0/img/143690.jpg)
1 |
HANDLEBAR COVER FRONT OEM PIAGGIO 125-250-300 VESPA GTS 2016 < UNPAINTED-1B001185 More informationQuantity required : 1 |
|||||||||
|
1 |
1B001185000M5-COVER STEERING More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/1/3/5/img/109135.jpg)
1 |
1B001185000R7 - CACHE DIRECTION ROUGE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/1/3/6/img/109136.jpg)
1 |
1B001185000XN2 - CACHE DIRECTION AV More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/3/4/2/img/87342.jpg)
2 |
HANDLEBAR COVER REAR OEM PIAGGIO 125-250-300 VESPA GTS 2016 < WITHOUT ABS UNPAINTED-652682 More informationQuantity required : 1 |
|||||||||
|
2 |
6526820090 - CACHE DIRECTION More informationQuantity required : 1 |
|||||||||
|
2 |
65268200DE - CACHE DIRECTION More informationQuantity required : 1 |
|||||||||
|
2 |
65268200EP - CACHE DIRECTION GRIS More informationQuantity required : 1 |
|||||||||
|
2 |
65268200EU - CACHE DIRECTION More informationQuantity required : 1 |
|||||||||
|
2 |
65268200F2 - CACHE DIRECTION More informationQuantity required : 1 |
|||||||||
|
2 |
65268200GP - CACHE DIRECTION More informationQuantity required : 1 |
|||||||||
|
2 |
65268200GV - CACHE DIRECTION More informationQuantity required : 1 |
|||||||||
|
2 |
65268200M4-COVER STEERING More informationQuantity required : 1 |
|||||||||
|
2 |
65268200M5-COVER STEERING More informationQuantity required : 1 |
|||||||||
|
2 |
HANDLEBAR COVER REAR OEM PIAGGIO 125-250-300 VESPA GTS 2016 < WITHOUT ABS RED 894-65268200R7 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/3/7/1/img/87371.jpg)
2 |
65268200XN2 - CACHE DIRECTION ARR. More informationQuantity required : 1 |
|||||||||
|
3 |
599678-COVER More informationQuantity required : 1 |
|||||||||
|
3 |
5996780090 - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
3 |
59967800DE - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
3 |
59967800EP-COVER COVER HANDLEBAR GAU More informationQuantity required : 1 |
|||||||||
|
3 |
59967800EU-COVER More informationQuantity required : 1 |
|||||||||
|
3 |
59967800F2 - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
3 |
59967800GP - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
3 |
59967800GV - COUVERTURE GAU. More informationQuantity required : 1 |
|||||||||
|
3 |
59967800M4 - COUVERTURE GAU. More informationQuantity required : 1 |
|||||||||
|
3 |
59967800M5 - COUVERTURE GAU. More informationQuantity required : 1 |
|||||||||
|
3 |
59967800R7 - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
3 |
59967800XN2 - COUVERTURE POMPE GAUCHE More informationQuantity required : 1 |
|||||||||
|
4 |
599679-COVER More informationQuantity required : 1 |
|||||||||
|
4 |
5996790090 - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
4 |
59967900DE - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
4 |
59967900EP-COVER COVER HANDLEBAR DR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/6/6/1/img/82661.jpg)
4 |
59967900EU - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
4 |
59967900F2 - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
4 |
59967900GP-COVER More informationQuantity required : 1 |
|||||||||
|
4 |
59967900GV - COUVERTURE DRT. More informationQuantity required : 1 |
|||||||||
|
4 |
59967900M4-COVER More informationQuantity required : 1 |
|||||||||
|
4 |
59967900M5 - COUVERTURE DRT. More informationQuantity required : 1 |
|||||||||
|
4 |
59967900R7 - COUVERTURE More informationQuantity required : 1 |
|||||||||
|
4 |
59967900XN2 - COUVERTURE POMPE DROITE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/9/3/img/95193.jpg)
5 |
NUT SHEET METAL (3, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017418 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/5/img/72925.jpg)
6 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017409 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/4/img/63774.jpg)
7 |
WASHER PLATE (3. 3X6. 6X0. 5) OEM PIAGGIO COMMON A LA RANGE-003053 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/8/img/66028.jpg)
8 |
SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/8/img/66058.jpg)
9 |
SCREW AUTOTARAUDEUSE (4X16) OEM PIAGGIO COMMON A LA RANGE-267115 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/6/3/img/67663.jpg)
10 |
SCREW BTR HEAD BOMBEE (4X10) OEM PIAGGIO COMMON A LA RANGE-621914 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/7/9/8/img/77798.jpg)
11 |
SCREW CRUCIFORME (3. 5X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-294678 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/7/4/img/66074.jpg)
12 |
SCREW AUTOTARAUDEUSE (4X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-268596 More informationQuantity required : 2 |
|||||||||
