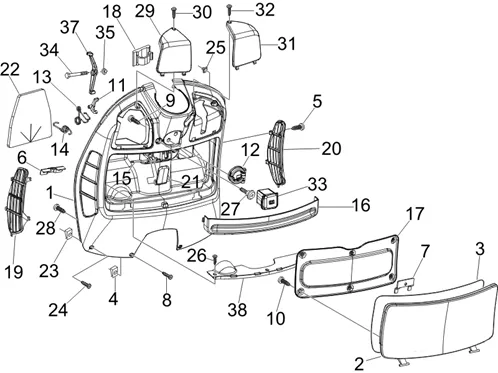

Vehicle Exploded View - VESPA VESPA GTS 125 4T E3 2007-2012

	P2R reference	139952
	Maker reference	1B00334800090

UNDERSEAT COMPARTMENT FRONT OEM PIAGGIO 125-250-300 GTS VESPA 2018 < BLACK 94-1B00334800090

	P2R reference	146358
	Maker reference	1B003348000DE

1B003348000DE - COFFRE AV.

	P2R reference	146362
	Maker reference	1B003348000F2

1B003348000F2 - COFFRE AV.

	P2R reference	139951
	Maker reference	1B003348

UNDERSEAT COMPARTMENT FRONT OEM PIAGGIO 125-250-300 GTS VESPA 2018 < UNPAINTED-1B003348

	P2R reference	81086
	Maker reference	57717400GV

UNDERSEAT COMPARTMENT FRONT OEM PIAGGIO VESPA 125-250-300 GTS BRONZE 579-57717400GV

	P2R reference	81088
	Maker reference	57717400M4

57717400M4-UNDERSEAT COMPARTMENT FRONT

	P2R reference	146366
	Maker reference	1B003348000M5

1B003348000M5 - COFFRE AV.

	P2R reference	139957
	Maker reference	1B003348000R7

UNDERSEAT COMPARTMENT FRONT OEM PIAGGIO 125-250-300 GTS VESPA 2018 < RED 894-1B003348000R7

	P2R reference	139960
	Maker reference	1B003348000XN2

1B003348000XN2 - COFFRE AV.

	P2R reference	81092
	Maker reference	577175

DOOR DE UNDERSEAT COMPARTMENT/BOX A GANTS OEM PIAGGIO 125-250-300 VESPA GTS UNPAINTED-577175

	P2R reference	81095
	Maker reference	5771750090

5771750090-DOOR UNDERSEAT COMPARTMENT AV BLACK 94

	P2R reference	81102
	Maker reference	57717500DE

DOOR DE UNDERSEAT COMPARTMENT/BOX A GANTS OEM PIAGGIO 125-250-300 VESPA GTS BLUE 222/A-57717500DE

	P2R reference	81105
	Maker reference	57717500EP

57717500EP-DOOR UNDERSEAT COMPARTMENT AV

	P2R reference	81107
	Maker reference	57717500EU

57717500EU-DOOR UNDERSEAT COMPARTMENT AV

	P2R reference	81109
	Maker reference	57717500F2

57717500F2 - PORTE COFFRE AV

	P2R reference	81111
	Maker reference	57717500GP

57717500GP - PORTE COFFRE AV

	P2R reference	81112
	Maker reference	57717500GV

57717500GV-DOOR UNDERSEAT COMPARTMENT AV

	P2R reference	81115
	Maker reference	57717500M4

57717500M4-DOOR UNDERSEAT COMPARTMENT AV

	P2R reference	81116
	Maker reference	57717500M5

57717500M5-DOOR UNDERSEAT COMPARTMENT AV

	P2R reference	81121
	Maker reference	57717500R7

DOOR DE UNDERSEAT COMPARTMENT/BOX A GANTS OEM PIAGGIO 125-250-300 VESPA GTS RED 894-57717500R7

	P2R reference	81125
	Maker reference	57717500XN2

DOOR DE UNDERSEAT COMPARTMENT/BOX A GANTS OEM PIAGGIO 125-250-300 VESPA GTS BLACK 98/A-57717500XN2

	P2R reference	72903
	Maker reference	CM006311

GASKET DOOR DE UNDERSEAT COMPARTMENT OEM PIAGGIO 125-250-300 VESPA GTS, 125-350 X10, BEVERLY 2021 <-CM006311

	P2R reference	72926
	Maker reference	CM017410

NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410

	P2R reference	66074
	Maker reference	268596

SCREW AUTOTARAUDEUSE (4X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-268596

	P2R reference	66002
	Maker reference	252420

BRACKET LATCH DOOR DE UNDERSEAT COMPARTMENT OEM PIAGGIO COMMON A TOUTE LA RANGE-252420

	P2R reference	66022
	Maker reference	257614

BRACKET MOUNTING DOOR DE UNDERSEAT COMPARTMENT OEM PIAGGIO COMMON A TOUTE LA RANGE-257614

	P2R reference	66035
	Maker reference	259349

SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349

	P2R reference	66074
	Maker reference	268596

SCREW AUTOTARAUDEUSE (4X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-268596

	P2R reference	66301
	Maker reference	297498

SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498

	P2R reference	67119
	Maker reference	575607

CROCHET LATCH UNDERSEAT COMPARTMENT FRONT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-575607

	P2R reference	67122
	Maker reference	575819

CROCHET DOOR SAC OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-575819

	P2R reference	140004
	Maker reference	1B003658

SPRING LEVER LATCH DE VIDE POCHE FRONT OEM PIAGGIO COMMON A ALA RANGE MAXI SCOOTER 125-250-300-1B003658

	P2R reference	81221
	Maker reference	577399

SPRING OF RETURN OEM PIAGGIO COMMON A LA RANGE-577399

	P2R reference	81222
	Maker reference	577400

SPINDLE/PIVOT DOOR DE UNDERSEAT COMPARTMENT OEM PIAGGIO COMMON A LA RANGE-577400

	P2R reference	81244
	Maker reference	577447

577447-SURROUND UNDERSEAT COMPARTMENT

	P2R reference	81250
	Maker reference	577468

CONTRE DOOR DE BOX A GANT OEM PIAGGIO VESPA 125-250-300 GTS-577468

	P2R reference	67161
	Maker reference	577594

CLIPS ADHESIF OEM PIAGGIO COMMON A LA RANGE-577594

	P2R reference	81367
	Maker reference	577856000C

GRILLE LEFT DE LEG SHIELD INNER OEM PIAGGIO 125-250-300 VESPA GTS-577856600C

	P2R reference	81369
	Maker reference	577857000C

GRILLE RIGHT DE LEG SHIELD INNER OEM PIAGGIO 125-250-300 VESPA GTS-577857000C

	P2R reference	67167
	Maker reference	577861

LEVER DE UNDERSEAT COMPARTMENT OEM PIAGGIO COMMON A LA RANGE-577861

	P2R reference	83695
	Maker reference	620693

620693-REVETEMENT

	P2R reference	72924
	Maker reference	CM017408

NUT SHEET METAL (4. 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017408

	P2R reference	73797
	Maker reference	0147545

SCREW AUTOTARAUDEUSE (4, 2X25) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-014754

	P2R reference	65832
	Maker reference	199190

AGRAPHE/CHEVILLE A EXPANSION OEM PIAGGIO COMMON A TOUTE LE RANGE-199190

	P2R reference	66028
	Maker reference	258249

SCREW OF FAIRING (3X18) OEM PIAGGIO COMMON A TOUTE LA RANGE-258249

	P2R reference	67113
	Maker reference	575249

SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249

	P2R reference	66035
	Maker reference	259349

SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349

	P2R reference	81217
	Maker reference	577395000C

577395000C-COVER UNDERSEAT COMPARTMENT GAU. VESPA GT

	P2R reference	66036
	Maker reference	259372

SCREW AUTOTARAUDEUSE (4, 2X25) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259372

	P2R reference	96281
	Maker reference	CM178607

SCREW TORX (4. 2X27) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178607

	P2R reference	81218
	Maker reference	577396000C

COVER UNDERSEAT COMPARTMENT RIGHT OEM PIAGGIO 125-250-300 VESPA GTS 2009 >-577396000C

	P2R reference	66036
	Maker reference	259372

SCREW AUTOTARAUDEUSE (4, 2X25) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259372

	P2R reference	96281
	Maker reference	CM178607

SCREW TORX (4. 2X27) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178607

	P2R reference	83675
	Maker reference	620452

CAP LEG SHIELD OEM PIAGGIO 125-150-300 VESPA GTS-620452

	P2R reference	66314
	Maker reference	299972

SCREW SPECIALE DOIGT DE LOCK OEM PIAGGIO COMMON A LA RANGE-299972

	P2R reference	67162
	Maker reference	577620

NUT AUTOBLOQUANT/NYLSTOP (M4X70) OEM PIAGGIO COMMON A LA RANGE-577620

	P2R reference	81245
	Maker reference	577453

LEVER LOCK DE UNDERSEAT COMPARTMENT FRONT OEM PIAGGIO 125/250/300 GTS, GT, GTV < 2007-577453

	P2R reference	84934
	Maker reference	623776

623776-CAPUCHON UNDERSEAT COMPARTMENT LEG SHIELD
