Vehicle Exploded View - VESPA VESPA GTS 125 4T E3 2007-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

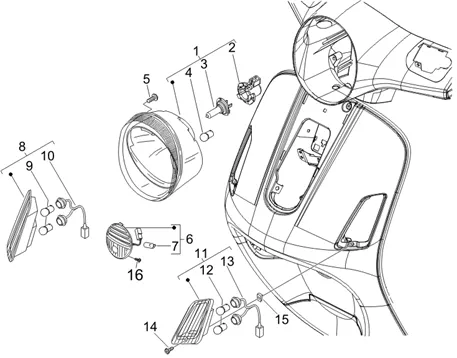

Circuit électrique : 06.03 ECLAIRAGES AVANT - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/958/Vespa_GTS_125_4T_E3_2007-2012_06.03.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/8/0/0/img/81800.jpg)
1 |
LAMP UNIT/HEADLAMP/HEADLAMP OEM PIAGGIO 125-250 VESPA GTS 2006 >, 300 VESPA GTS 2011 > 2016-58267R More informationQuantity required : 1 |
||||||
|
1 |
LAMP UNIT/HEADLAMP/HEADLAMP OEM PIAGGIO 125-250 VESPA GTS 2006 >, 300 VESPA GTS 2011 > 2016-58267R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/9/6/2/img/76962.jpg)
2 |
DOOR AMPOULE OEM PIAGGIO 125-300 GTS 2008 > 2016-253327 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/6/img/66256.jpg)
3 |
AMPOULE/LAMPE 12V 60/55W H4 OEM PIAGGIO COMMON A LA RANGE-292723 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
4 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/3/img/66293.jpg)
5 |
SCREW SHEET METAL (L35MM) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-296458 More informationQuantity required : 4 |
||||||
6 |
584726-CLIGNOTEUR AV. More informationQuantity required : 1 |
||||||
|
7 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/1/3/5/img/82135.jpg)
8 |
FRONT RIGHT INDICATOR (NON LED) OEM PIAGGIO 125-250-300 VESPA GTS 2007 > 2022-584970 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/3/4/img/67234.jpg)
9 |
AMPOULE/LAMPE 12V 5W WEDGE T10 ORANGE OEM PIAGGIO COMMON A LA RANGE-581904 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/9/7/3/img/81973.jpg)
10 |
WIRING HARNESS DE INDICATOR FRONT OEM PAIGGIO 125-250-300 VESPA GTS 2016 <-583864 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/1/3/6/img/82136.jpg)
11 |
FRONT LEFT INDICATOR (NON LED) OEM PIAGGIO 125-250-300 VESPA GTS 2007 > 2022-584971 More informationQuantity required : 1 |
||||||
|
12 |
AMPOULE/LAMPE 12V 5W WEDGE T10 ORANGE OEM PIAGGIO COMMON A LA RANGE-581904 More informationQuantity required : 2 |
||||||
|
13 |
WIRING HARNESS DE INDICATOR FRONT OEM PAIGGIO 125-250-300 VESPA GTS 2016 <-583864 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/6/img/63856.jpg)
14 |
SCREW PARKER (4, 2X19) CRUCIFORME DE INDICATOR OU FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-008457 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/9/0/img/95190.jpg)
15 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017406 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
16 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 2 |
