Vehicle Exploded View - VESPA VESPA GTS 125 4T E3 2007-2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

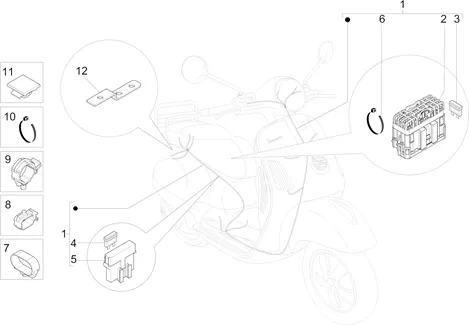

Circuit électrique : 06.08 FAISCEAU DE CÂBLES PRINCIPAL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/958/Vespa_GTS_125_4T_E3_2007-2012_06.08.PNG)
1 |
640483 - FAISC. DE CABLES More informationQuantity required : 1 |
||||||
|
1 |
641667-FAISC. DE CABLES More informationQuantity required : 1 |
||||||
|
2 |
584211-FUSE HOLDER TERM. BOARD 6 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/4/img/66004.jpg)
3 |
BLADE FUSE STANDARD 7, 5A OEM PIAGGIO COMMON A LA RANGE-252945 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/4/4/img/66244.jpg)
3 |
BLADE FUSE STANDARD 15A OEM PIAGGIO COMMON A LA RANGE-290860 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/4/img/66254.jpg)
3 |
BLADE FUSE STANDARD 10A OEM PIAGGIO COMMON A TOUTE LA RANGE-292507 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/2/img/66262.jpg)
3 |
BLADE FUSE STANDARD 5A OEM PIAGGIO COMMON A LA RANGE-293256 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/8/4/6/img/81846.jpg)
4 |
BLADE FUSE STANDARD 3A OEM PIAGGIO COMMON A LA RANGE-582930 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/1/img/67181.jpg)
5 |
DOOR-FUSIBLES OEM PIAGGIO COMMON A LA RANGE-580653 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
6 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/4/img/72904.jpg)
7 |
CLAMP PINCE RETENUE HOSE OEM PIAGGIO COMMON A LA RANGE-CM006902 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/7/img/72907.jpg)
8 |
COLIIER PINCE OEM PIAGGIO COMMON A LA RANGE-CM006905 More informationQuantity required : 1 |
||||||
|
9 |
CM006907-RESSOT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
10 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/6/1/img/67161.jpg)
11 |
CLIPS ADHESIF OEM PIAGGIO COMMON A LA RANGE-577594 More informationQuantity required : 1 |
||||||
|
12 |
640520 - ETRIER More informationQuantity required : 1 |
