Vehicle Exploded View - MOTO-GUZZI V85 850 TT Travel E5+ 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

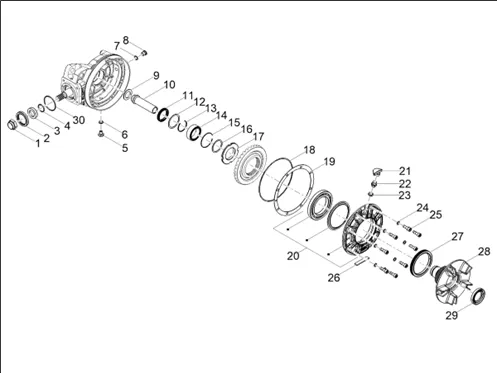

Moteur : 03.35 LA TRANSMISSION ARRIÈRE / COMPOSANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1305/V85_TT_Travel_E5_2024_(EMEA)_03.35.png)
1 |
2B005012-NUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/7/2/2/img/140722.jpg)
2 |
2B000404-BUSH D'ETANCHEITE More informationQuantity required : 1 |
||||||
|
3 |
2B001311-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/2/3/img/132223.jpg)
4 |
O-RING (18. 77X1. 78) COUPLE CONIQUE (18, 77X1, 78) OEM MOTO GUZZI COMMON A LA RANGE-GU90706188 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/0/2/2/img/131022.jpg)
5 |
CAP VIDANGE OIL ENGINE/BV/PONT OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU31003766 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/6/9/0/img/101690.jpg)
6 |
GASKET (10X18X1. 5) CAP DE VIDANGE OEM PIAGGIO FOR MOTORCYCLE-GUZZI BREVA, GRISO, NEVADA, NORGE, STELVIO, V-7, V-9, V-11, SPORT, CALIFORNIA, AUDACE, ELDORADO, BELAGIO-GU01528930 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/3/8/img/111438.jpg)
7 |
GASKET ETANCHEITE CUIVRE (15. 90X12. 30X1. 20) COMMON A LA RANGE APE/MOTO GUZZI-224566 More informationQuantity required : 1 |
||||||
|
8 |
2B012828-SCREW PLUG DIN 908-M12X1, 5-ST More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/8/4/2/img/131842.jpg)
9 |
WASHER DE TRANSMISSION REAR OEM MOTO GUZZI V7, V9, V85-GU37359005 More informationQuantity required : 1 |
||||||
|
10 |
2B007257-SPACER More informationQuantity required : 1 |
||||||
|
11 |
OIL SEAL/BUSH D'ETANCHEITE 38X50X7 OEM PIAGGIO MOTO-GUZZI-GU90413850 More informationQuantity required : 1 |
||||||
|
12 |
GU12351100-BUSH D'ETANCHEITE More informationQuantity required : 1 |
||||||
|
13 |
2B002200-BUSH SEEGER More informationQuantity required : 1 |
||||||
|
14 |
BEARING DE TRANSMISSION REAR (40X55X17) OEM PIAGGIO MOTO-GUZZI 1000 DAYTONA, LE-MANS, V10, 1100 CALIFORNIA, SPORT-2B006088R More informationQuantity required : 1 |
||||||
|
15 |
B064304-BUSH SEEGER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/5/8/6/img/129586.jpg)
16 |
WASHER APPUI TRANSMISSION REAR OEM MOTO GUZZI BREVA, STRADA, V7, V9, V85-GU19351100 More informationQuantity required : 1 |
||||||
|
17 |
2B002536-BUSH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/5/3/img/132253.jpg)
18 |
O-RING (158, 42X2, 62) DE TRANSMISSION REAR OEM MOTO GUZZI COMMON A LA RANGE-GU90706958 More informationQuantity required : 1 |
||||||
|
19 |
GU04355100-CALE 0, 6 MM More informationQuantity required : 1 |
||||||
|
19 |
GU04355101-CALE 0, 7 MM More informationQuantity required : 1 |
||||||
|
19 |
GU04355104-CALE 1 MM More informationQuantity required : 1 |
||||||
|
19 |
GU04355105-CALE 1, 1 MM More informationQuantity required : 1 |
||||||
|
19 |
GU04355106-CALE 1, 2 MM More informationQuantity required : 1 |
||||||
|
19 |
GU04355103-CALE 0, 9 MM More informationQuantity required : 1 |
||||||
|
19 |
GU04355102-CALE 0, 8 MM More informationQuantity required : 1 |
||||||
|
20 |
2B0061105-FLANGE More informationQuantity required : 1 |
||||||
|
21 |
2B002807-COVER More informationQuantity required : 1 |
||||||
|
22 |
2B008491-BREATHER ASSEMBLY More informationQuantity required : 1 |
||||||
|
23 |
GASKET (10X18X1. 5) CAP DE VIDANGE OEM PIAGGIO FOR MOTORCYCLE-GUZZI BREVA, GRISO, NEVADA, NORGE, STELVIO, V-7, V-9, V-11, SPORT, CALIFORNIA, AUDACE, ELDORADO, BELAGIO-GU01528930 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
24 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/7/8/2/img/140782.JPG)
25 |
2B002171-SCREW More informationQuantity required : 8 |
||||||
|
26 |
2B006064-ADHESIVE FELT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/8/3/9/img/140839.jpg)
27 |
OIL SEAL (80X100X10) TRANSMISSION REAR OEM MOTO GUZZI V7 E5, V9, V85-2B002535 More informationQuantity required : 1 |
||||||
|
28 |
2B006860R-FIX COUPLING OF DUMPER More informationQuantity required : 1 |
||||||
|
29 |
2B007243-SEAL RING 26. 42. 7 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/4/8/img/132248.jpg)
30 |
O-RING (58. 42X2. 62) TRANSMISSION OEM MOTO GUZZI COMMON A LA RANGE-GU90706584 More informationQuantity required : 1 |
