Vehicle Exploded View - MOTO-GUZZI V85 850 TT Travel E5+ 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

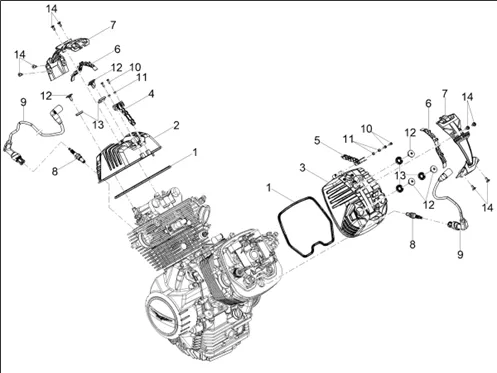

Moteur : 03.09 COUVERCLE CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1305/V85_TT_Travel_E5_2024_(EMEA)_03.09.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/4/9/4/img/134494.jpg)
1 |
GASKET COVER DE CYLINDER HEAD OEM PIAGGIO MOTO-GUZZI V7 2017 >, V9 2016 >, V85 2019 >-2A000565 More informationQuantity required : 2 |
||||||
2 |
1A024834-RIGHT HEAD COVER More informationQuantity required : 1 |
||||||
|
3 |
1A024833-LEFT HEAD COVER More informationQuantity required : 1 |
||||||
|
4 |
2B006084-BRACKET More informationQuantity required : 1 |
||||||
|
5 |
2B006083-BRACKET More informationQuantity required : 1 |
||||||
|
6 |
1A013822-GUIDE-CABLE More informationQuantity required : 2 |
||||||
|
7 |
1A024835-SPARK PLUG COVER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/6/8/img/149168.jpg)
8 |
SPARK PLUG IRIDIUM MR8BI-8 OEM PIAGGIO 50 ZIP 4T 2018 >, LIBERTY 4T 2017 >, VESPA PRIMAVERA 4T 2018 >, VESPA SPRINT 2018 >/APRILIA 900 SHIVER, DORSODURO/MOTO-GUZZI V85-1A010638 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/9/5/8/img/156958.jpg)
9 |
CABLE IGNITION HAUTE TENTION OEM PIAGGIO MOTO GUZZI V85TT 2019 >-CM277103 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/8/8/img/139388.JPG)
10 |
1A003444-SCREW More informationQuantity required : 4 |
||||||
|
11 |
2B003052-BUSH EN T More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/8/8/8/img/99888.jpg)
12 |
SCREW OF COVER CULBUTEURS OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-976591 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/4/4/9/5/img/134495.jpg)
13 |
GASKET SCREW OF COVER DE CYLINDER HEAD OEM PIAGGIO FOR MOTORCYCLE-GUZZI 1400 CALIFORNIA 2012 >, AUDACE, ELDORADO, 1200 SPORT, GRISO, NORGE, STELVIO, V7, V9, V85-1A006716 More informationQuantity required : 6 |
||||||
|
14 |
1A023687-BUTTON HEAD SCREW WITH FLANGE E. I. More informationQuantity required : 8 |
