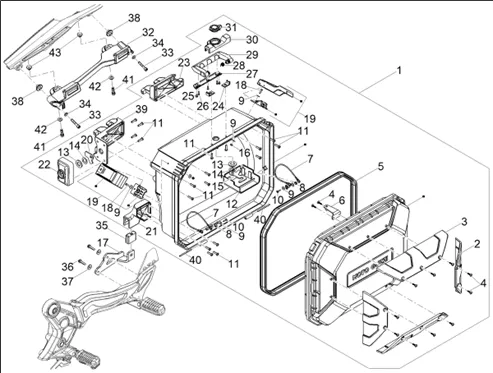

Carrosserie : 02.22 VALISE G
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1305/V85_TT_Travel_E5_2024_(EMEA)_02.22.png)
1 |
2B012312-LEFT CASE More informationQuantity required : 1 |
||||||
|
2 |
2B012309-COVER LATERAL More informationQuantity required : 2 |
||||||
|
3 |
2B012310-PROTECTOR SUPERIEURE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/7/2/img/73372.jpg)
4 |
SCREW TORX (4X16) TARAUD FAIRING OEM PIAGGIO COMMON A LA RANGE-CM180701 More informationQuantity required : 12 |
||||||
|
5 |
2B005971 GASKET More informationQuantity required : 1 |
||||||
|
6 |
2B006027-FLANGE More informationQuantity required : 1 |
||||||
|
7 |
AP8201855-CABLE UNDERSEAT COMPARTMENT AR More informationQuantity required : 2 |
||||||
|
8 |
AP8706322-BOCCOLA AGGANCIO CAVALLETTO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/5/img/71895.jpg)
9 |
WASHER PLATE (4. 3X12X1) OEM PIAGGIO COMMON A LA RANGE-AP8150501 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
10 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
11 |
SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329 More informationQuantity required : 18 |
||||||
|
12 |
2B005993 PROTECTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/3/0/img/63730.jpg)
13 |
WASHER WHEEL (DIAMETRE 15) OEM PIAGGIO GILERA 50 50 SMT, RCR/DERBI 50 SENDA/APRILIA RS, RX, SX-00032015000 More informationQuantity required : 2 |
||||||
|
14 |
AP8150471-WASHER ELASTIC More informationQuantity required : 2 |
||||||
|
15 |
2B005989-LOQUET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
16 |
NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204 More informationQuantity required : 2 |
||||||
|
17 |
2B006249-BRACKET LEFT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/4/2/img/46742.jpg)
18 |
SCREW BTR HEAD BOMBEE (4X14) OEM PIAGGIO COMMON A LA RANGE-AP8121184 More informationQuantity required : 2 |
||||||
|
19 |
2B005975 CAME LATCH More informationQuantity required : 2 |
||||||
|
20 |
2B006029-PLATE LOCK More informationQuantity required : 1 |
||||||
|
21 |
2B005982-INSERT VALISE More informationQuantity required : 1 |
||||||
|
22 |
2B005990-CAPOT More informationQuantity required : 1 |
||||||
|
23 |
2B005986-ACCROCHEMENT More informationQuantity required : 1 |
||||||
|
24 |
2B006158-LATCH More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/6/img/72286.jpg)
25 |
RUBBER/BUFFER CHAMPIGNON OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8220488 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
26 |
SCREW CRUCIFORME (2. 9X12) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150421 More informationQuantity required : 3 |
||||||
|
27 |
2B006156-CAPOT More informationQuantity required : 1 |
||||||
|
28 |
2B006150 SPRING More informationQuantity required : 1 |
||||||
|
29 |
2B006155-GRIP More informationQuantity required : 1 |
||||||
|
30 |
2B006159-BRACKET GRIP More informationQuantity required : 1 |
||||||
|
31 |
2B006655-CAP More informationQuantity required : 1 |
||||||
|
32 |
2B011428-BRACKET LEFT More informationQuantity required : 1 |
||||||
|
33 |
B043041-SCREW M8X45 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/0/4/0/img/72040.jpg)
34 |
WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8163165 More informationQuantity required : 2 |
||||||
|
35 |
BUFFER DE SEAT OEM APRILIA 660 RS 2020 >-2B005994 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
36 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/2/img/71872.jpg)
37 |
WASHER PLATE (6. 4X18X2) OEM PIAGGIO COMMON A LA RANGE-AP8150378 More informationQuantity required : 2 |
||||||
|
38 |
2B012340-BUSH More informationQuantity required : 2 |
||||||
|
39 |
2B005981-ACCROCHEMENT More informationQuantity required : 1 |
||||||
|
40 |
PIVOT CHARNIERE VALISE OEM PIAGGIO V85 TT MOTO GUZZI 2020 >-2B006059 More informationQuantity required : 2 |
||||||
|
41 |
B043044-SCREW More informationQuantity required : 2 |
||||||
|
42 |
GU950053106-WASHER 8. 4X18X2 INOX AISI 304 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/7/img/72297.jpg)
43 |
BUSH EN T (8, 5X10, 7X12) OEM PIAGGIO COMMON A LA RANGE-AP8221128 More informationQuantity required : 2 |
