Vehicle Exploded View - MOTO-GUZZI V85 850 TT Travel E5+ 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

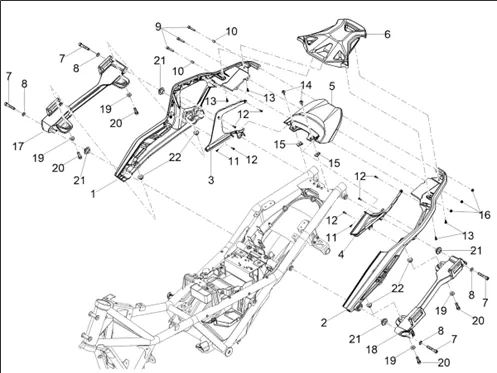

Carrosserie : 02.14 CARROSSERIE POSTERIEURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1305/V85_TT_Travel_E5_2024_(EMEA)_02.14.png)
1 |
2B011620-RH PASSENGER HANDLE More informationQuantity required : 1 |
||||||
|
2 |
2B011621-LH PASSENGER HANDLE More informationQuantity required : 1 |
||||||
|
3 |
2B011618-RH INTERNAL HANDLE COVER More informationQuantity required : 1 |
||||||
|
4 |
2B011619-LH INTERNAL HANDLE COVER More informationQuantity required : 1 |
||||||
|
5 |
2B005354-COVER More informationQuantity required : 1 |
||||||
|
6 |
2B011617-LUGGAGE CARRIER COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/9/img/71829.jpg)
7 |
SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8150169 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/4/img/73554.jpg)
8 |
WASHER 8, 4X15X1, 8 COMMON A LA RANGE MOTO GUZZI/APRILIA-GU95008208 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/8/4/img/133184.JPG)
9 |
SCREW THC M6X30 OEM MOTO GUZZI COMMON A LA RANGE-GU98682330 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
10 |
PION DE CENTRAGE (7, 5X12) OEM PIAGGIO COMMON A LA RANGE-277916 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/5/7/3/8/img/195738.jpg)
11 |
SCREW CRUCIFORME (3, 5X11) AUTOTARAUDEUSE OEM PIAGGIO COMMON A TOUTE LA RANGE-296141 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/8/8/img/139388.JPG)
12 |
1A003444-SCREW More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
13 |
SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
14 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
15 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 2 |
||||||
|
16 |
GU92630206-NUT M6X1 More informationQuantity required : 3 |
||||||
|
17 |
2B011427-BRACKET RIGHT More informationQuantity required : 1 |
||||||
|
18 |
2B011428-BRACKET LEFT More informationQuantity required : 1 |
||||||
|
19 |
GU950053106-WASHER 8. 4X18X2 INOX AISI 304 More informationQuantity required : 4 |
||||||
|
20 |
B043044-SCREW More informationQuantity required : 4 |
||||||
|
21 |
2B012340-BUSH More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/7/img/72297.jpg)
22 |
BUSH EN T (8, 5X10, 7X12) OEM PIAGGIO COMMON A LA RANGE-AP8221128 More informationQuantity required : 4 |
