Vehicle Exploded View - MOTO-GUZZI V85 850 TT Travel E5+ 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

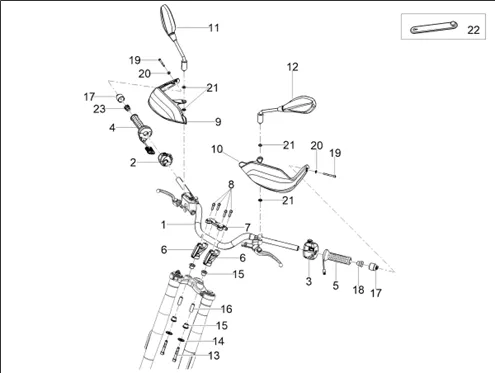

Guidon - commandes : 07.02 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1305/V85_TT_Travel_E5_2024_(EMEA)_07.02.png)
1 |
2B012279-HANDLEBAR More informationQuantity required : 1 |
||||||
|
2 |
2D000732-RIGHT COMMAND WITH DRL/FOG More informationQuantity required : 1 |
||||||
|
3 |
DEVIATEUR/CONTACTEUR FEUX LEFT OEM PIAGGIO APRILIA 660 TUAREG 2021 >, MOTO GUZZI STELVIO ARAS/V100 2022 >-2D000549 More informationQuantity required : 1 |
||||||
|
4 |
2D000514-GRIP ACCELERATEUR WITH GRIP CHAUF More informationQuantity required : 1 |
||||||
|
5 |
1D003485-GRIP RECHAUFFEE LEFT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/9/2/6/img/156926.jpg)
6 |
CAVALIER LOWER DE HANDLEBAR OEM MOTO GUZZI V85 2019 >-2B005683 More informationQuantity required : 2 |
||||||
|
7 |
2B004163-CALIPER HANDLEBAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/0/4/0/img/51040.jpg)
8 |
SCREW BTR CHROME (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8152486 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/9/9/8/3/img/219983.JPG)
9 |
PAIR PROTEGE MAIN OEM PIAGGIO MOTO-GUZZI V85 TT 2024-2B011413 More informationQuantity required : 1 |
||||||
|
10 |
PAIR PROTEGE MAIN OEM PIAGGIO MOTO-GUZZI V85 TT 2024-2B011413 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/9/2/7/img/156927.jpg)
11 |
RIGHT MIRROR OEM PIAGGIO V85TT MOTO-GUZZI 2019 >/660 TUAREG APRILIA 2021 >-2B006207 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/9/2/9/img/156929.jpg)
12 |
LEFT MIRROR OEM PIAGGIO V85TT MOTO-GUZZI 2019 >/660 TUAREG APRILIA 2021 >-2B006208 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/5/9/4/3/img/155943.jpg)
13 |
SCREW BTR (10X60) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-2B004798 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/6/3/img/108963.jpg)
14 |
WASHER SPECIALE DE HANDLEBAR OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8123721 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/4/img/71754.jpg)
15 |
RUBBER OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8144222 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/8/9/3/img/39893.jpg)
16 |
SPACER (10, 1X14, 1X38) OEM PIAGGIO COMMON A LA RANGE-854827 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/7/2/9/img/40729.jpg)
17 |
HANDLEBAR END OEM PIAGGIO APRILIA 1200 CAPONORD 2014 >, 750-900-1200 DORSODURO 2008 >/MOTO-GUZZI 850 V85 2019 > STELVIO 2024 >-859949 More informationQuantity required : 2 |
||||||
|
18 |
AP8706479-TERM. POIDS ANTIVIB. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/6/img/71816.jpg)
19 |
SCREW BTR (6X55) OEM PIAGGIO COMMON A LA RANGE-AP8150045 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
20 |
BUSH/SPACER (6) OEM PIAGGIO COMMON A LA RANGE-AP8121032 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/2/2/img/46722.jpg)
21 |
SPACER EPAULEE OEM PIAGGIO COMMON A LA RANGE-AP8121080 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/8/9/5/img/101895.jpg)
22 |
CLAMP SERRE CABLE 46 MM OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU01609630 More informationQuantity required : 4 |
||||||
|
23 |
2S001436-TERM. POIDS ANTIVIB. More informationQuantity required : 1 |
