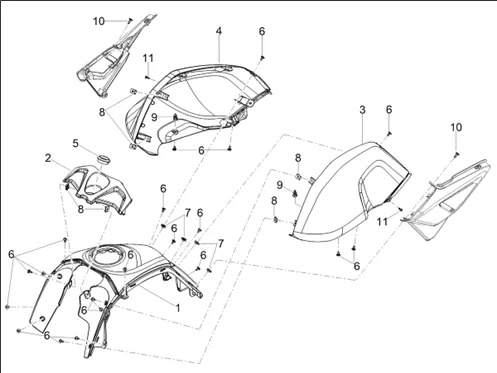

Carrosserie : 02.09 COUVRE-RÉSERVOIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1305/V85_TT_Travel_E5_2024_(EMEA)_02.09.png)
1 |
2B011611-FUEL TANK CENTRAL COVER More informationQuantity required : 1 |
||||||
|
2 |
2B011612-FUEL TANK FRONT COVER More informationQuantity required : 1 |
||||||
|
3 |
2H006315000Q05-COVER FUEL TANK G More informationQuantity required : 1 |
||||||
|
3 |
2B011614-FUEL TANK LH COVER More informationQuantity required : 1 |
||||||
|
4 |
2H006314000Q05 - CACHE RESERVOIR ESSENCE D More informationQuantity required : 1 |
||||||
|
4 |
2B011613-FUEL TANK RH COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/0/1/img/71601.jpg)
5 |
GASKET BLOC DEMARRAGE NEIMAN OEM MOTO GUZZI STELVIO/V85-AP8127461 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
6 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500 More informationQuantity required : 19 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
7 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
8 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 6 |
||||||
|
9 |
2B005486-COVER LOCKING SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
10 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
11 |
SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603 More informationQuantity required : 2 |
