Vehicle Exploded View - MOTO-GUZZI V85 850 TT Travel E5+ 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

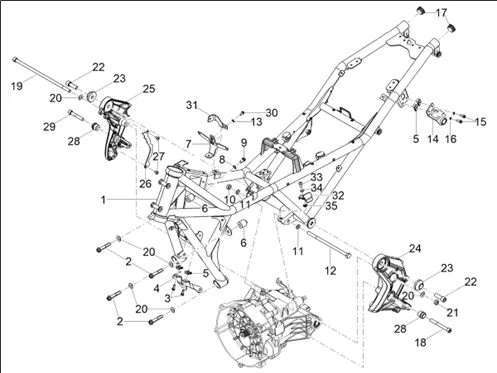

Châssis/coque : 01.01 CHÂSSIS/COQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1305/V85_TT_Travel_E5_2024_(EMEA)_01.01.png)
1 |
2B011919000N20 - FRAME DARK WITH I.P. More informationQuantity required : 1 |
||||||
|
2 |
2B006398-SCREW FLANGE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
3 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 2 |
||||||
|
4 |
2B012583-VOLTAGE REGULATOR BRACKET E5 + More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
5 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 4 |
||||||
|
6 |
2B004675-BUSH More informationQuantity required : 2 |
||||||
|
7 |
2B007737 TBDINDUCTION COIL SUPP BRACKET CPL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/4/6/img/110646.jpg)
8 |
WASHER SPRING (8. 4X15X1. 5) OEM PIAGGIO COMMON A LA RANGE-658837 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/7/img/71947.jpg)
9 |
SCREW FLANGE TH (8X16) OEM PIAGGIO COMMON A LA RANGE-AP8152285 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/1/0/img/132510.jpg)
10 |
NUT (M10X1, 5) OEM PIAGGIO COMMON A LA RANGE-GU92630510 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/8/2/img/132682.jpg)
11 |
WASHER PLATE (10, 2X18X2) OEM PIAGGIO COMMON A LA RANGE-GU95008210 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/7/2/img/50872.jpg)
12 |
SCREW (M10X205) OEM APRILIA COMMON A LA RANGE-AP8150412 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/7/6/img/102376.jpg)
13 |
WASHER ELASTIC (6. 4X12) OEM PIAGGIO COMMON A LA RANGE-GU03013800 More informationQuantity required : 1 |
||||||
|
14 |
2B008493-MUFFLER BRACKET BRACKET WITH I. P. More informationQuantity required : 1 |
||||||
|
15 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
16 |
WASHER (6, 4X10X, 7) OEM PIAGGIO COMMON A LA RANGE-AP8152105 More informationQuantity required : 2 |
||||||
|
17 |
978301-CAP MOZZO POST More informationQuantity required : 2 |
||||||
|
18 |
AP8150287-SCREW More informationQuantity required : 1 |
||||||
|
19 |
2B001230-SCREW CILINDRICA ESAG. INC. PAS. GRO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/0/img/71840.jpg)
20 |
WASHER ELASTIC COURBE (11X21X1) OEM PIAGGIO COMMON A LA RANGE-AP8150210 More informationQuantity required : 6 |
||||||
|
21 |
NUT (M10X1, 5) OEM PIAGGIO COMMON A LA RANGE-GU92630510 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/9/0/img/133190.jpg)
22 |
SCREW BTR (12X35) OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU98682635 More informationQuantity required : 2 |
||||||
|
23 |
2B005686-BUSH More informationQuantity required : 2 |
||||||
|
24 |
2B012151-MACHINED LH FRAME PLATE More informationQuantity required : 1 |
||||||
|
25 |
2B012150-MACHINED RH FRAME PLATE More informationQuantity required : 1 |
||||||
|
26 |
2B005804-PETIT COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
27 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500 More informationQuantity required : 2 |
||||||
|
28 |
2B005849-BUSH More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/8/img/71818.jpg)
29 |
SCREW BTR (10X60) OEM PIAGGIO COMMON ALA RANGE-AP8150049 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/1/img/71941.jpg)
30 |
SCREW FLANGE TH (6X12) OEM PIAGGIO COMUUN A LA RANGE-AP8152277 More informationQuantity required : 1 |
||||||
|
31 |
2B011725-PURGE VALVE BRACKET BRACKET More informationQuantity required : 1 |
||||||
|
32 |
2B012655-LAMBDA PROBE GASKET BRACKET BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/4/5/img/50945.jpg)
33 |
SCREW BTR HEAD BOMBEE (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152058 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
34 |
WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/3/img/71433.jpg)
35 |
WASHER EN T (8. 2X12X4) FOR SCREW OF 6 OEM PIAGGIO COMMON A LA RANGE-AP8121096 More informationQuantity required : 1 |
