Vehicle Exploded View - MOTO-GUZZI V85 850 TT Travel E5+ 2024 (EMEA) MOTO-GUZZI

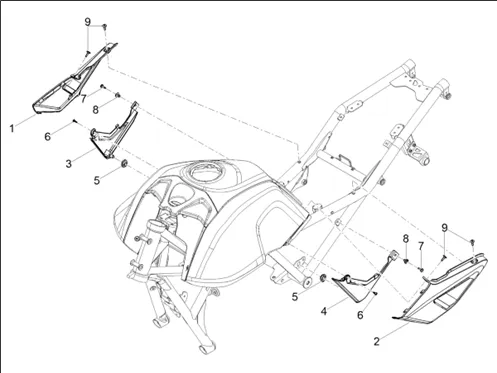

Carrosserie : 02.10 CARROSSERIE CENTRALE
Carrosserie centrale
Search
2H006318000Q05 - FLANC DE CARENAGE DROIT PEINT

1
P2R reference P2R reference 219962
Maker reference Maker reference 2H006318000Q05

2H006318000Q05-SIDE PANEL DE FAIRING RIGHT PEINT

More information

Quantity required : 1

2B011615 - RH SIDE COVER

1
P2R reference P2R reference 209598
Maker reference Maker reference 2B011615

2B011615-RH SIDE COVER

More information

Quantity required : 1

2H006319000Q05 - FLANC DE CARENAGE GAUCHE PEINT

2
P2R reference P2R reference 219963
Maker reference Maker reference 2H006319000Q05

2H006319000Q05-SIDE PANEL DE FAIRING LEFT PEINT

More information

Quantity required : 1

2B011616 - LH SIDE COVER

2
P2R reference P2R reference 209602
Maker reference Maker reference 2B011616

2B011616-LH SIDE COVER

More information

Quantity required : 1

2B011790 - RH INTERNAL SIDE COVER

3
P2R reference P2R reference 209603
Maker reference Maker reference 2B011790

2B011790-RH INTERNAL SIDE COVER

More information

Quantity required : 1

2B011791 - LH INTERNAL SIDE COVER

4
P2R reference P2R reference 209604
Maker reference Maker reference 2B011791

2B011791-LH INTERNAL SIDE COVER

More information

Quantity required : 1

RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8220162

5
P2R reference P2R reference 72272
Maker reference Maker reference AP8220162

RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8220162

More information

Quantity required : 2

SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603

6
P2R reference P2R reference 73358
Maker reference Maker reference CM178603

SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603

More information

Quantity required : 2

RIVET MALE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144616)-AP8144563

7
P2R reference P2R reference 71769
Maker reference Maker reference AP8144563

RIVET MALE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144616)-AP8144563

More information

Quantity required : 2

RIVET FEMELLE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144563)-AP8144616

8
P2R reference P2R reference 71773
Maker reference Maker reference AP8144616

RIVET FEMELLE OEM PIAGGIO COMMON A LA RANGE (ASSOCIE AP8144563)-AP8144616

More information

Quantity required : 2

SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101

9
P2R reference P2R reference 214483
Maker reference Maker reference 2B014101

SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101

More information

Quantity required : 4
