Vehicle Exploded View - MOTO-GUZZI V85 850 TT Travel E5+ 2024 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

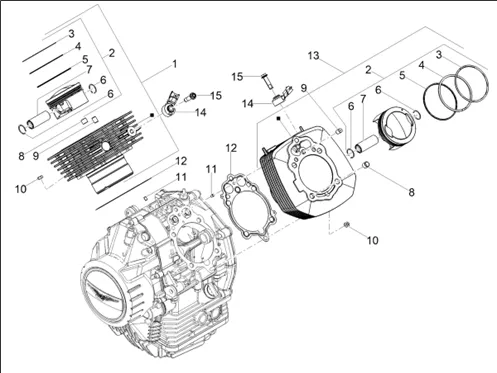

Moteur : 03.15 CYLINDRE - PISTON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1305/V85_TT_Travel_E5_2024_(EMEA)_03.15.png)
1 |
1A027098-RIGHT CYLINDER-PISTON GROUP More informationQuantity required : 1 |
||||||
|
2 |
1A027084G-ASSEMBLY PISTON More informationQuantity required : 1 |
||||||
|
2 |
1A027084H-COMPLETE PISTON CAT H More informationQuantity required : 1 |
||||||
|
2 |
1A027084L - PISTON CPL. More informationQuantity required : 1 |
||||||
|
2 |
1A027084M-COMPLETE PISTON CAT M More informationQuantity required : 2 |
||||||
|
3 |
1A013936-PISTON RING More informationQuantity required : 2 |
||||||
|
4 |
1A004954-PISTON RING More informationQuantity required : 2 |
||||||
|
5 |
1A004955-PISTON RING More informationQuantity required : 2 |
||||||
|
6 |
1A011548-CIRCLIPS More informationQuantity required : 4 |
||||||
|
7 |
1A008933-SPINDLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/2/img/68552.jpg)
8 |
STUD CALIBRE 11. 8X10 OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI ET LES MAXI SCOOTER 400-500 CC-825597 More informationQuantity required : 2 |
||||||
|
9 |
GU19021360-BUSH More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
10 |
NUT (M6) EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288245 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/6/9/img/66669.jpg)
11 |
BUSH DE CENTRAGE (5X8) OEM PIAGGIO COMMON A LA RANGE-484993 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/8/0/4/img/156804.JPG)
12 |
GASKET CYLINDER OEM MOTO GUZZI V7/V85/V9-1A010855 More informationQuantity required : 2 |
||||||
|
13 |
1A027097-LEFT CYLINDER-PISTON GROUP More informationQuantity required : 1 |
||||||
|
14 |
1A014213-DETECTEUR More informationQuantity required : 2 |
||||||
|
15 |
1A023064-SCREW W/FLANGE M8X30 More informationQuantity required : 2 |
