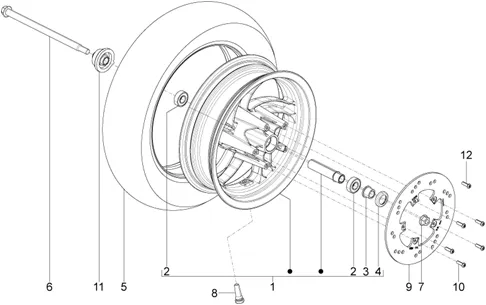

Vehicle Exploded View - APRILIA SR 125 SR Motard 125 4T E3 2012-2014 APRILIA

Suspensions - roues : 04.11 ROUE AVANT
Roue avant
Search
666311 - ROUE AV CPL

1
P2R reference P2R reference 68407
Maker reference Maker reference 666311

666311-WHEEL AV CPL

More information

Quantity required : 1

BEARING (15X35X11) DE FRONT WHEEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-649910

2
P2R reference P2R reference 68102
Maker reference Maker reference 649910

BEARING (15X35X11) DE FRONT WHEEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-649910

More information

Quantity required : 2

564527 - ENTRETOISE

3
P2R reference P2R reference 67062
Maker reference Maker reference 564527

564527-SPACER

More information

Quantity required : 1

WASHER PROTECTOR POUSSIERE FRONT WHEEL OEM PIAGGIO 50 FLY, RUNNER, STAKER, TYPHOON 2016 <-5644756

4
P2R reference P2R reference 67057
Maker reference Maker reference 564475

WASHER PROTECTOR POUSSIERE FRONT WHEEL OEM PIAGGIO 50 FLY, RUNNER, STAKER, TYPHOON 2016 <-5644756

More information

Quantity required : 1

853075 - PNEU 120/70-14" 52K CITY ONE (CST)

5
P2R reference P2R reference 69671
Maker reference Maker reference 853075

853075 - PNEU 120/70-14" 52K CITY ONE (CST)

More information

Quantity required : 1

WHEEL SPINDLE FRONT OEM PIAGGIO 50-125 FLY 2012 >, TYPHOON 2010 >/APRILIA 50 SR MOTARD 2010 >, SPORT-CITY ONE-668796

6
P2R reference P2R reference 90444
Maker reference Maker reference 668796

WHEEL SPINDLE FRONT OEM PIAGGIO 50-125 FLY 2012 >, TYPHOON 2010 >/APRILIA 50 SR MOTARD 2010 >, SPORT-CITY ONE-668796

More information

Quantity required : 1

NUT (M12) WHEEL SPINDLE OEM PIAGGIO COMMON A LA RANGE-271740

7
P2R reference P2R reference 66103
Maker reference Maker reference 271740

NUT (M12) WHEEL SPINDLE OEM PIAGGIO COMMON A LA RANGE-271740

More information

Quantity required : 1

VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-270991

8
P2R reference P2R reference 66094
Maker reference Maker reference 270991

VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-270991

More information

Quantity required : 1

BRAKE DISC SCOOT OEM PIAGGIO 50 NRG 1998 > 2005 AV/GILERA 50-125 RUNNER 1998 > 2005/APRILIA 50-125 SPORT-CITY ONE 2008 > 2011, 50 SR MOTARD 2012 >-561714

9
P2R reference P2R reference 67007
Maker reference Maker reference 561714

BRAKE DISC SCOOT OEM PIAGGIO 50 NRG 1998 > 2005 AV/GILERA 50-125 RUNNER 1998 > 2005/APRILIA 50-125 SPORT-CITY ONE 2008 > 2011, 50 SR MOTARD 2012 >-561714

More information

Quantity required : 1

SCREW BTR HEAD BOMBEE (6X20) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-667152

10
P2R reference P2R reference 68436
Maker reference Maker reference 667152

SCREW BTR HEAD BOMBEE (6X20) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-667152

More information

Quantity required : 5

ENTRAINEUR DE INSTRUMENT CLUSTER (DIA 15) OEM PIAGGIO 50 TYPHOON 2011/APRILIA 50 SR MOTARD 2011, 50-125 SPORT-CITY ONE 2008 >-56434R

11
P2R reference P2R reference 67051
Maker reference Maker reference 56434R

ENTRAINEUR DE INSTRUMENT CLUSTER (DIA 15) OEM PIAGGIO 50 TYPHOON 2011/APRILIA 50 SR MOTARD 2011, 50-125 SPORT-CITY ONE 2008 >-56434R

More information

Quantity required : 1

SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-709674

12
P2R reference P2R reference 68497
Maker reference Maker reference 709674

SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-709674

More information

Quantity required : 2
