Vehicle Exploded View - APRILIA SR 125 SR Motard 125 4T E3 2012-2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

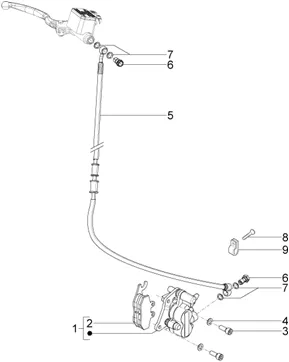

Instalation du freins - transmisisons : 05.01 TUYAUS DU FREINS - ETRIERS DE FREIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/341/SR_Motard_125_4T_E3_2012-2014_05.01.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/9/1/img/68391.jpg)
1 |
BRAKE CALIPER FRONT OEM PIAGGIO 50-125 TYPHOON 2010 >/APRILIA 50-125 SR MOTARD 2012 >-666008 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/0/0/4/img/68004.jpg)
2 |
BRAKE PAD OEM PIAGGIO 125 X-EVO AV, X8 AV, X9 AV, 125-300 VESPA GTS AV, 400 X-EVO AV + AR, 125 FLY AV/GILERA 800 GP AR/APRILIA 854 SRV AR, 125-300 SR-MAX AV + AR (PAIRE) (HENG-TONG)-647078 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/6/9/img/67369.jpg)
3 |
SCREW BTR (8X25) OEM PIAGGIO COMMON A LA RANGE-598919 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
4 |
WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047 More informationQuantity required : 2 |
||||||
5 |
858543-TUBE BRAKE FRONT More informationQuantity required : 1 |
||||||
|
6 |
651502-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/3/img/65723.jpg)
7 |
GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
8 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/1/0/img/66610.jpg)
9 |
CLAMP SHEET METAL DE MAINTIEN OEM PIAGGIO COMMON A LA RANGE-1C006656 More informationQuantity required : 1 |
All the exploded views of this vehicle
-
